GEO S12 HARDWARE SETUP PROCEDURE Page 51/106

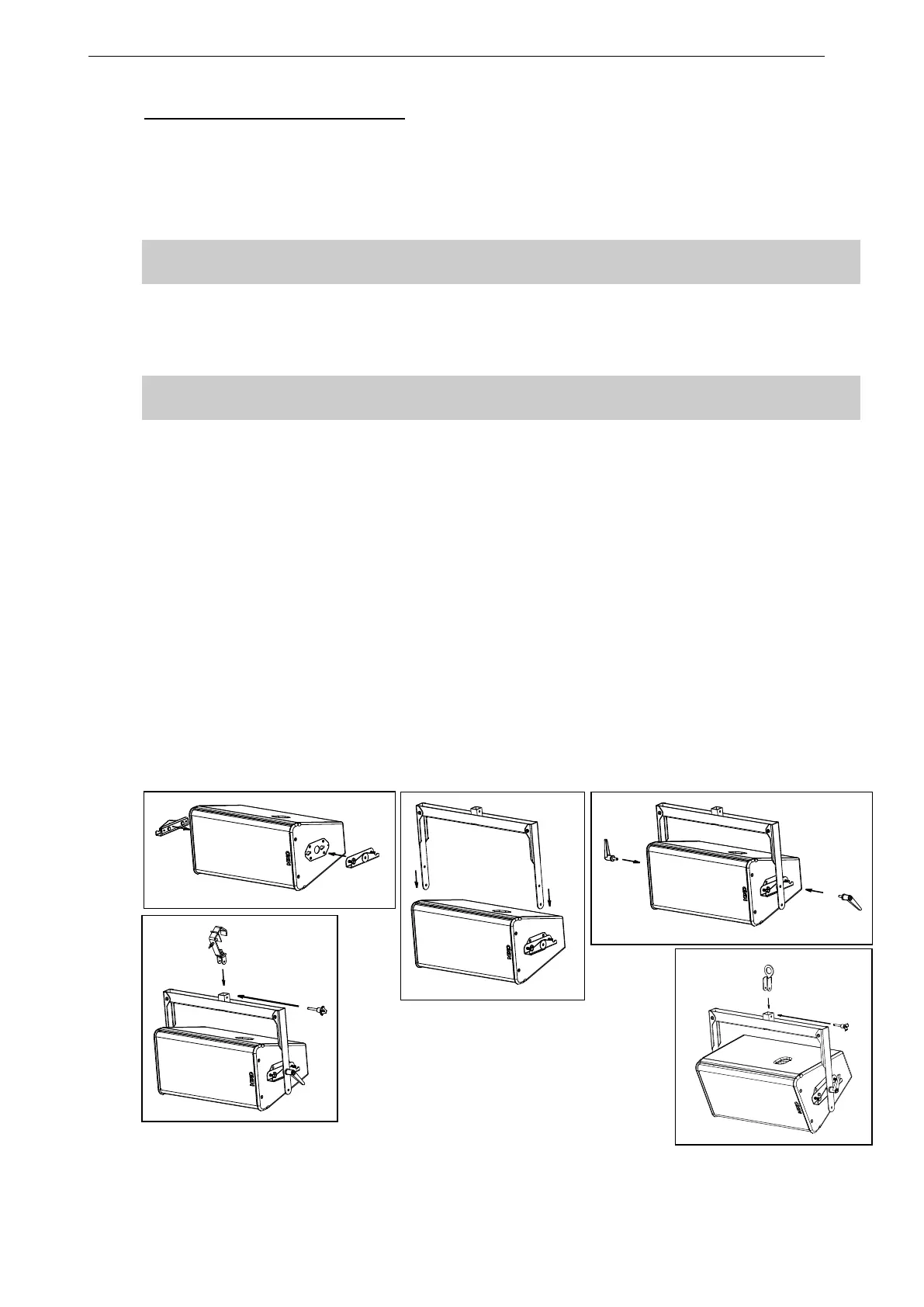

8.4.4 Single GEO S12 flown horizontally

Required items

 1 x “U” Bracket for single horizontal GEO S12 (GPT-SSBRK)

 1 x Lifting Ring (VNT-XHBRK)

 Or 1 x Truss hook (VNT-TCBRK)

IMPORTANT

Ensure that suspension point is strong enough to hold GEO S12 weight.

Procedure

 Slide GPT-SSBRK side plates into GEO S12 connecting plate oblong holes;

 Lock safety pins into GEO S12 connecting plate;

IMPORTANT

Ensure that safety pins are properly locked into GEO S12 connecting panels.

 Position “U” bracket over these side plates; align center holes;

 Insert adjustment handles, adjust vertical angle and tight the handles to prevent GEO S12

from rotating around “U” bracket;

Cable suspension:

 Connect lifting ring VNT-XHBRK to “U” bracket by inserting 8x45 quick release pin

dedicated holes;

 Ensure lifting ring is properly locked to “U” bracket;

 Connect assembly to suspension point with sling and shackle (not provided).

Truss suspension

 Connect truss hook VNT-TCBRK to “U” bracket by inserting 8x45 quick release pin in

dedicated holes;

 Ensure truss hook is properly locked to “U” bracket;

 Lift and position assembly, lock hook on truss suspension point and secure with hook

cable.
