Page 38/106 GEO S12 HARDWARE SETUP PROCEDURE




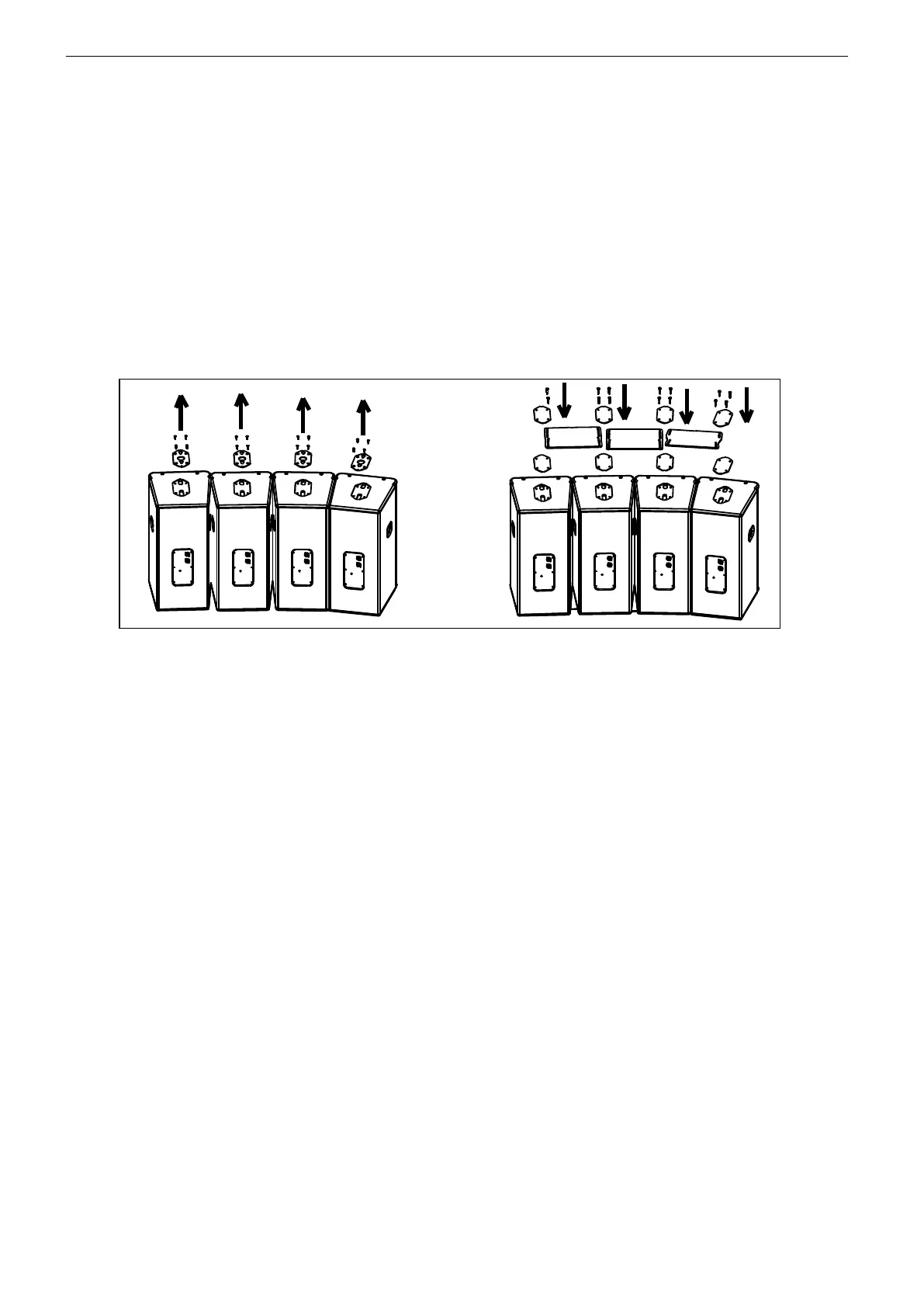

 (7) Flip the cluster upside down to access connector plates located on the down side;
 (8) Repeat all above steps from #2 to #6;






 (9) Use thread lock coated screws (or if not apply Loctite 243 or equivalent to four shoulder
screws) from the last GPI-ANPL kit;
 (10) Position the GPI-BUMPER bumper to required angle position and use the four
shoulder screws to connect it the bumper to the top cabinet;
