GEO S12 HARDWARE SETUP PROCEDURE Page 61/106
Optional GPT-TLB link bar for GPT- XBOW
GPT-XBOWs are delivered with standard link bars which allow both stacked and flown setups. However,
these link bars require perfect alignment of angle setting holes when adding cabinets.

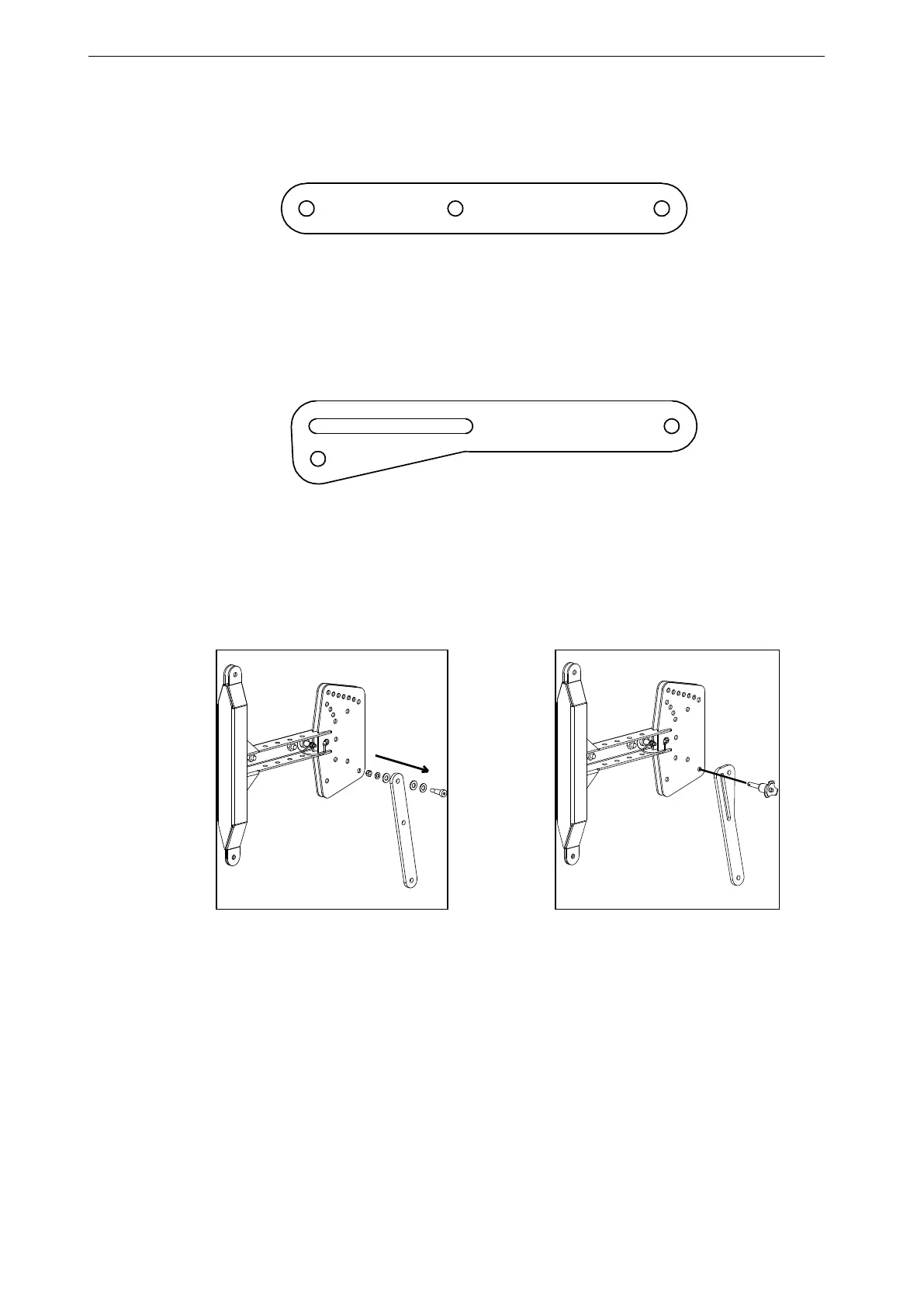

GPT-XBOW STANDARD LINK BAR
To facilitate flying operation, an optional link bar with oblong holes (GPT-TLB, pair of link bars provided
with two 8x20 quick release pin) is available in the GEO S12 accessory range.
GPT- XBOW OPTIONAL GPT-TLB LINK BAR
To install GPT-TLB, remove the standard link as well as nut, screw and washers.
When using GPT-XBOW for flown setups, insert pins in the oblong hole and opposite circular hole.
REMOVING STANDARD LINK BAR INSERTING PIN - FLOWN SETUPS
