Nexo LS18

Page 68/106 GEO S12 HARDWARE SETUP PROCEDURE
LS18 and GEO S12 ground stack device description
GPT-GSTK ground stack device includes:
 two supporting beams, which support assembly weight;
 two connecting beam, which allow connection of the beams to the first cabinet;
 one reinforcement beam, to rigidify ground stack device sideways;
 Axis, “R” clips and handles to assemble the ground stack device
Procedure
 Assemble the two connecting beam and the reinforcement beam with the handles;

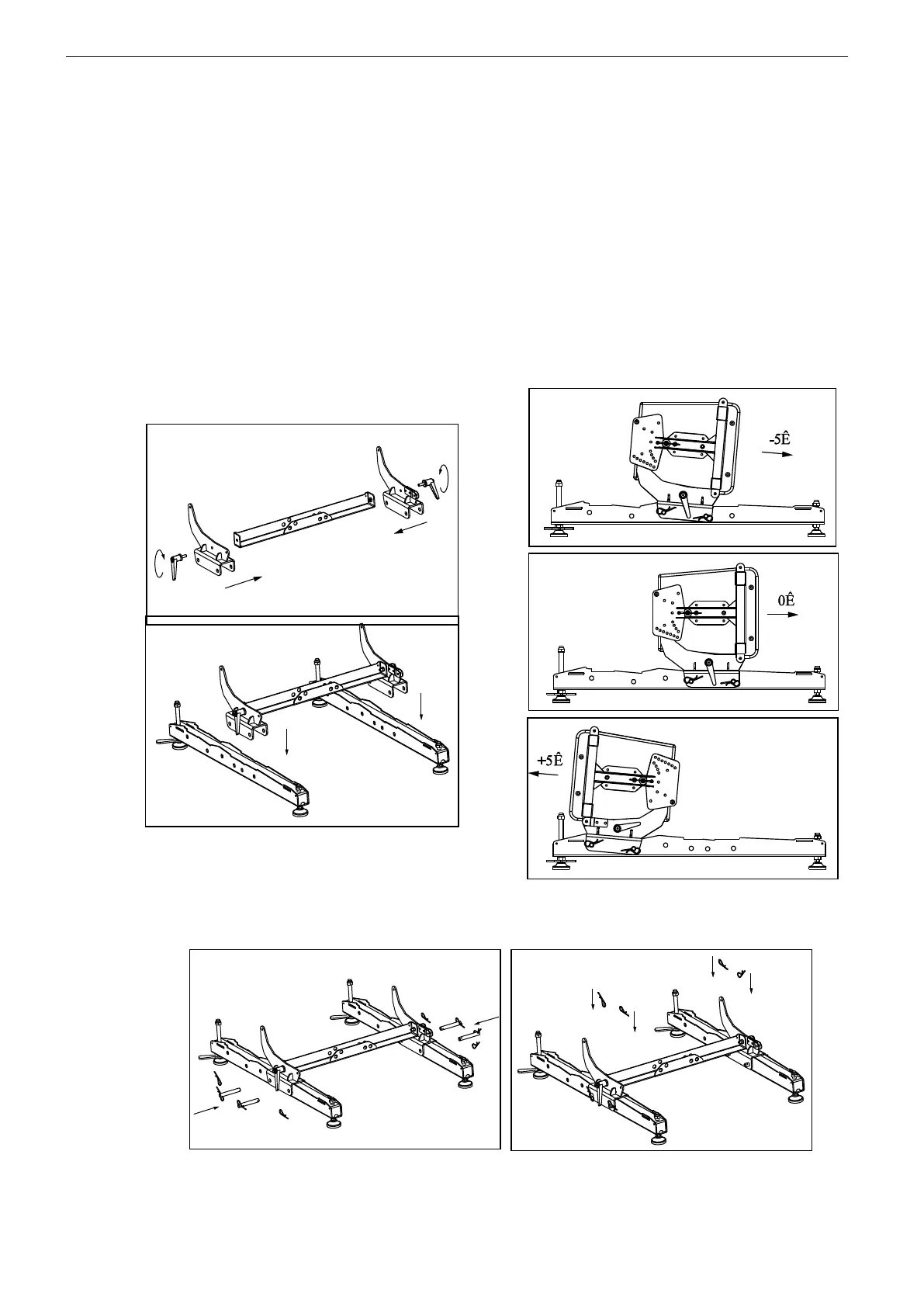

 Depending on tilt angle – negative, null or positive - to be achieved, there are three
positions to connect above assembly to the supporting beams; below drawings detail
these configurations:
 Connect the reinforcement bar to the supporting beams according to required tilt angle
configuration using 2 axis per side; secure the axis with provided “R” clips;
