Nikon D100 VBA10201 User Manual

VBA10201-R.3577.A
- Ｄ8 ･ -

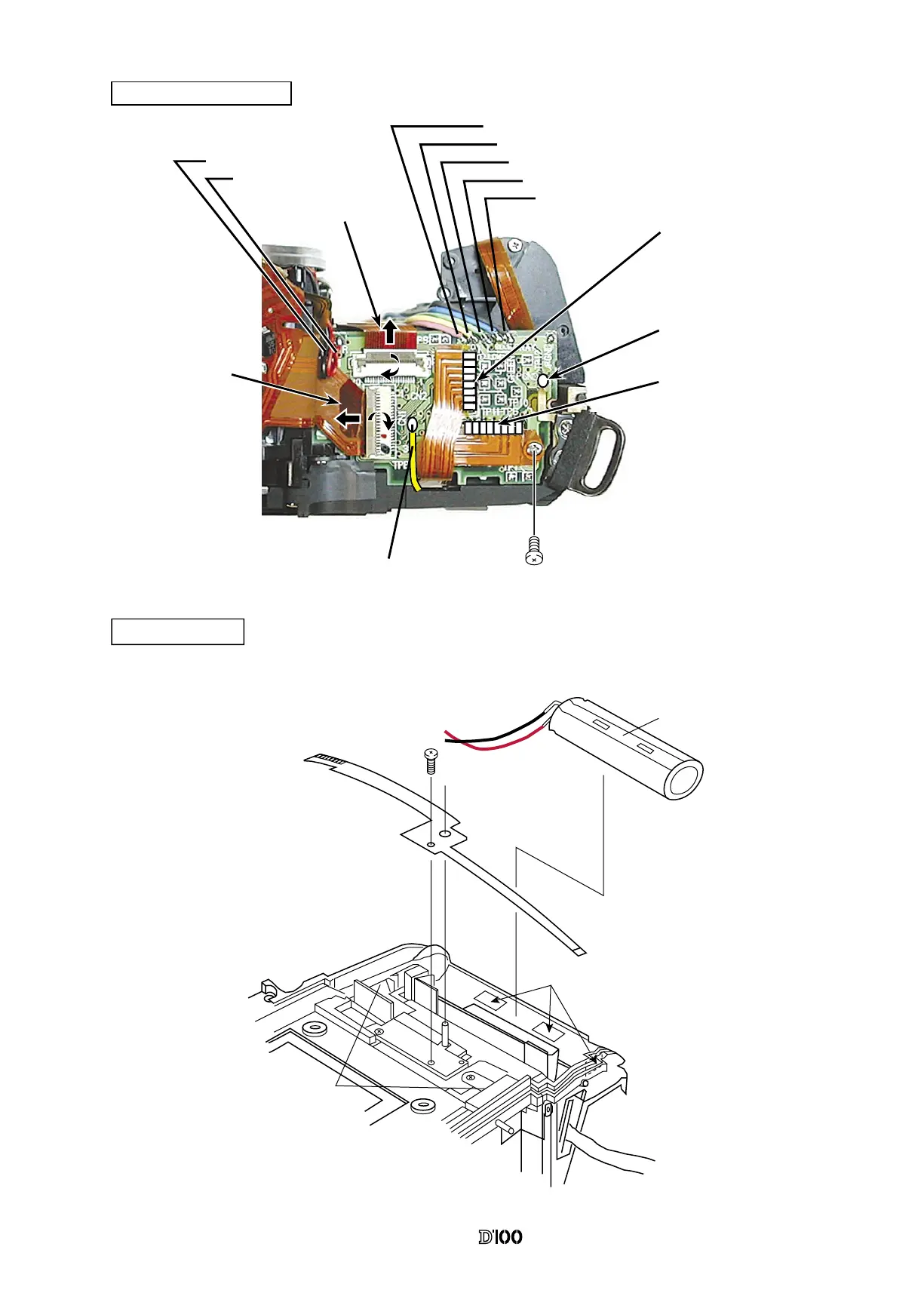

Power Drive PCB Unit
#643
R e mo v e t h e s o l d e r i ng
bridge of connection FPC
between the power drive
PCB and the DC/DC PCB.
Remove the soldering
bridge on the rug plate.
R e mo v e t h e s o l d e r i ng
bridge of connection FPC
between the power drive
PCB and the SB PCB.
Main FPC
SQ FPC
Red:DC/DC PCB
Yellow:DC/DC PCB
Green:DC/DC PCB
Blue:DC/DC PCB
Black:DC/DC PCB
Black: DC/DC PCB
Red:DC/DC PCB
Main Condenser
Square holes
GND marking
#607
Connection
FPC
Both-sided
adhesive tape
• Pull out the both ends of the connection FPC from the square holes.
Yellow:SB PCB
