Nikon D100 VBA10201 User Manual

VBA10201-R.3577.A
- Ａ34 ･ -
Back Cover
Lock Tight 401
#409
LEN317F
To hole for #415 and click
#415

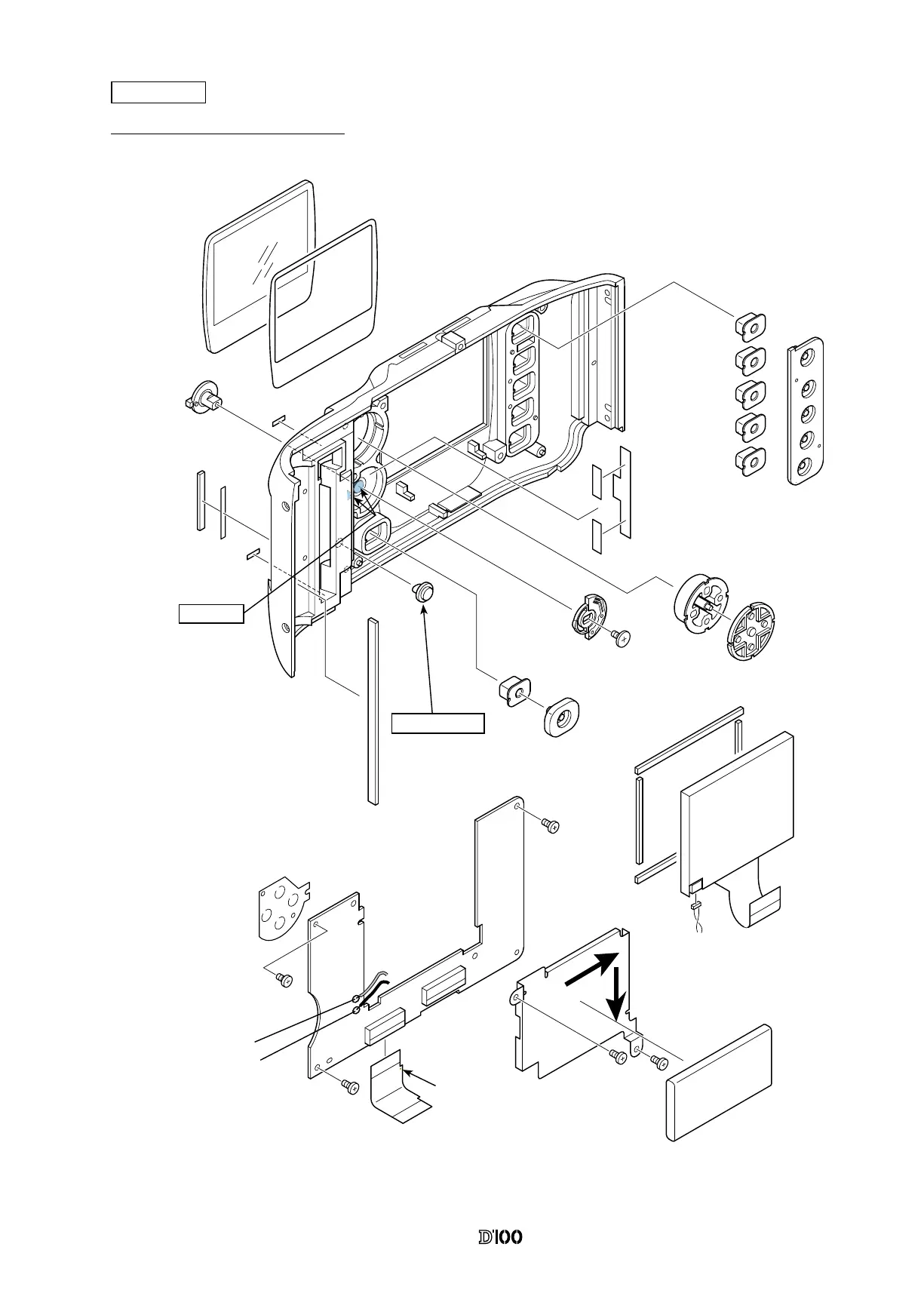

1. Assemble the Monitor PCB Unit
#465x2
#404
#403
#420
#421
#422
#423
#424
#427
#430
#412
#413
#803
B416
#428
#425
#513
#460
#462
#414
#837
#485
#431x2
#405x2
#406x2
#804x2
#804x2
#1034
#1028
#1062
#1027
Putting aside the backlash to the lower
right, and then tighten the 2 screws
#804.
Dot marking
Gray:Monitor
Black:Monitor
