VBA10201-R.3577.A
- Ｄ14 ･ -

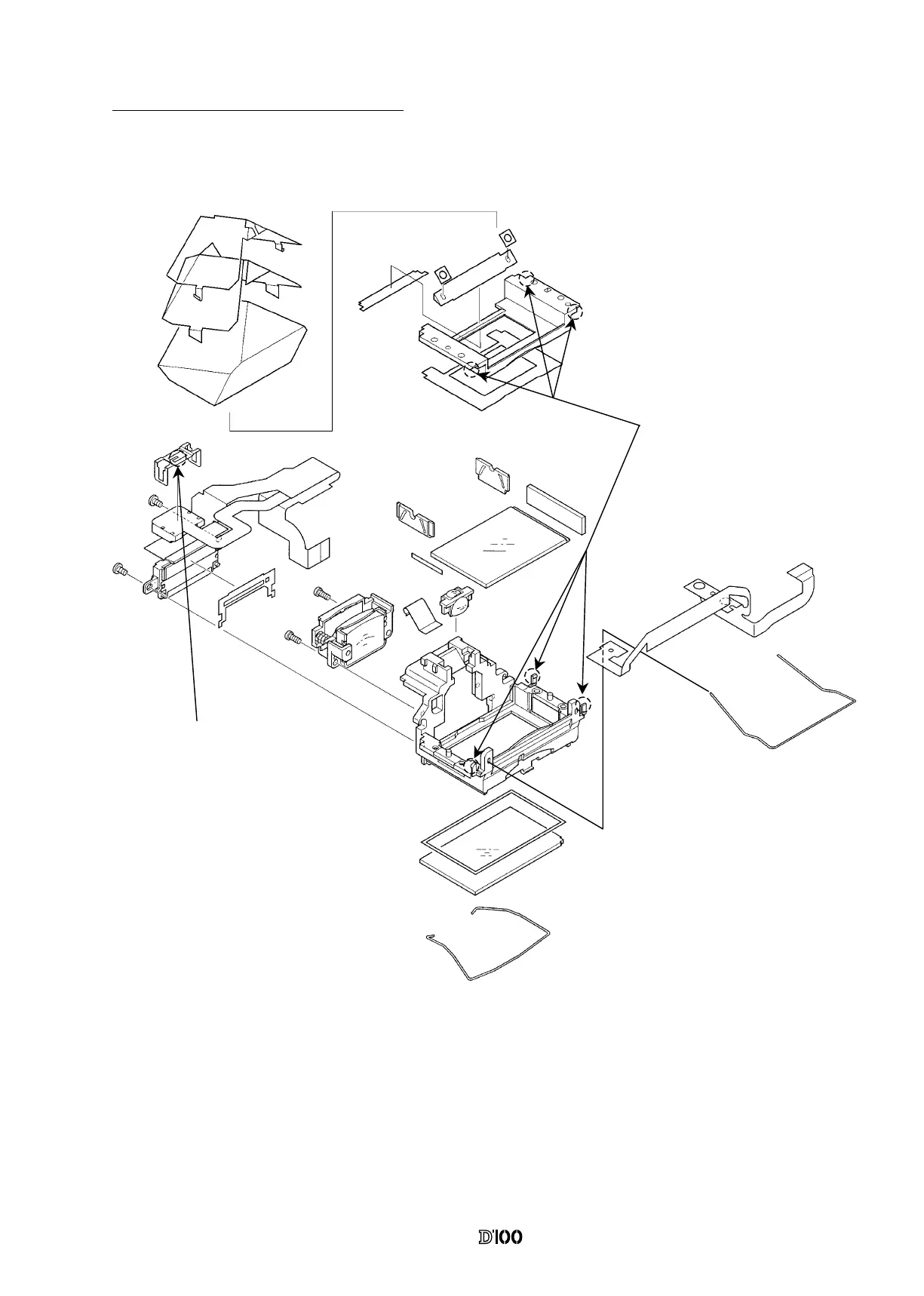

2. Disassembling of the Prism Box Unit
#286
#288
G4
#275
2
G9
#282
#278
#294
#293
#296
#279
#290
#692
2
B2003
#295
#618
2
#299
G5
B1011
#287
#281
#297A
󲧋D
G3
#284
In this location, the 3 claws on
the main prism box #281 are
hooked
on both shoulders of the sub-
prism box #282.
Removal of the solder bridge
between the AESPD Retainer
Plate #290 and In Finder
Metering FPC .
#1046
B261
