Nikon D100 VBA10201 User Manual

VBA10201-R.3577.A
- Ｄ3 ･ -
Memory Compression PCB Unit

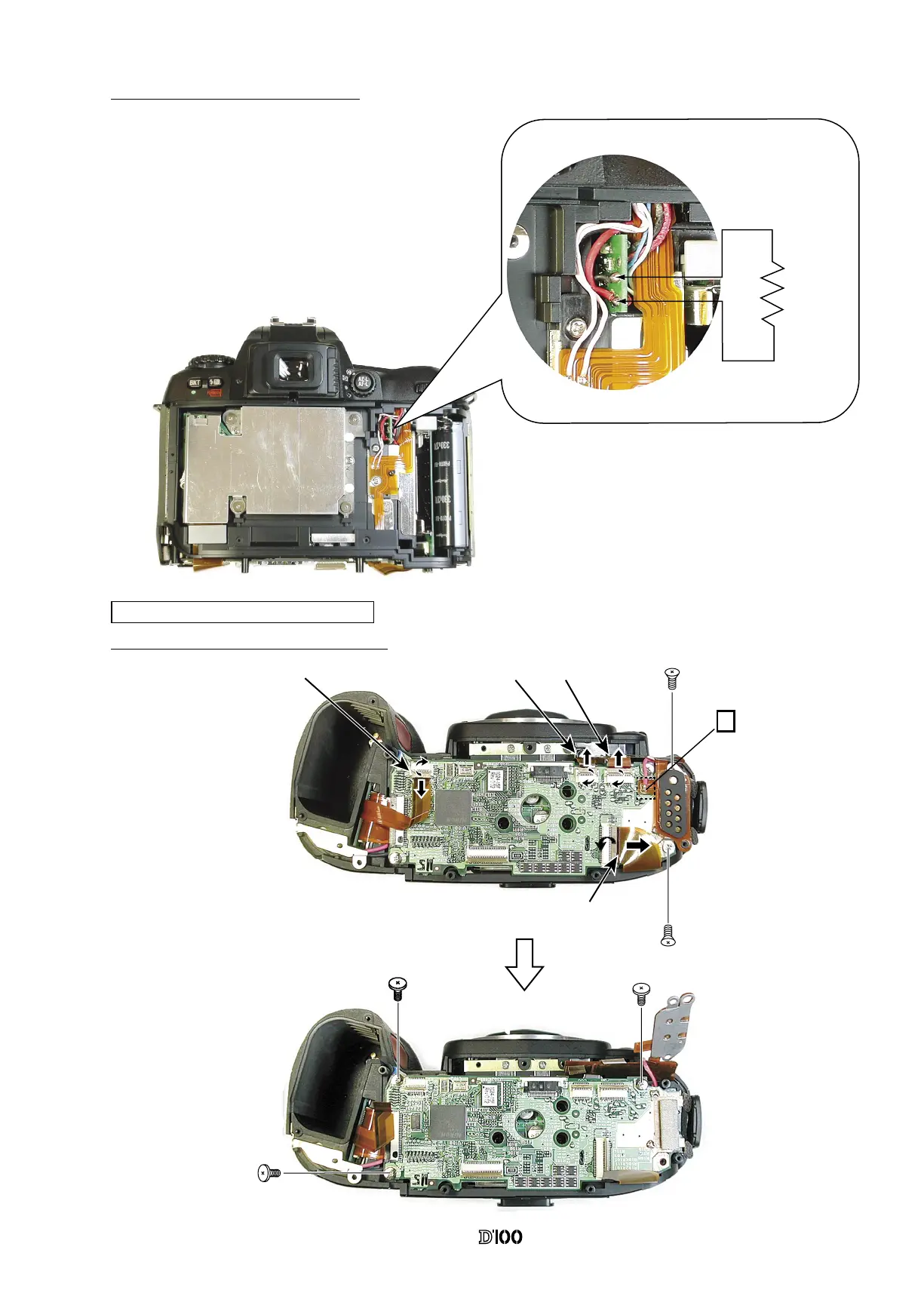

3. Discharging from Main Condenser
•
Between the patterns where red and white wires are
connected as in picture, perform electric discharge of
the main condenser.
• For the discharging resister, approx. 2KΩ/5W should
be used.
D i s c h a r g i n g resister
Black
Red
1. Disconnection of FPCs from connector
OPG connection FPC FPC from the I/F PCB Main FPC
FPC from the CCD PCB
#823x2
#830x3
TA-0005
