VBA10201-R.3577.A
- Ａ22 ･ -

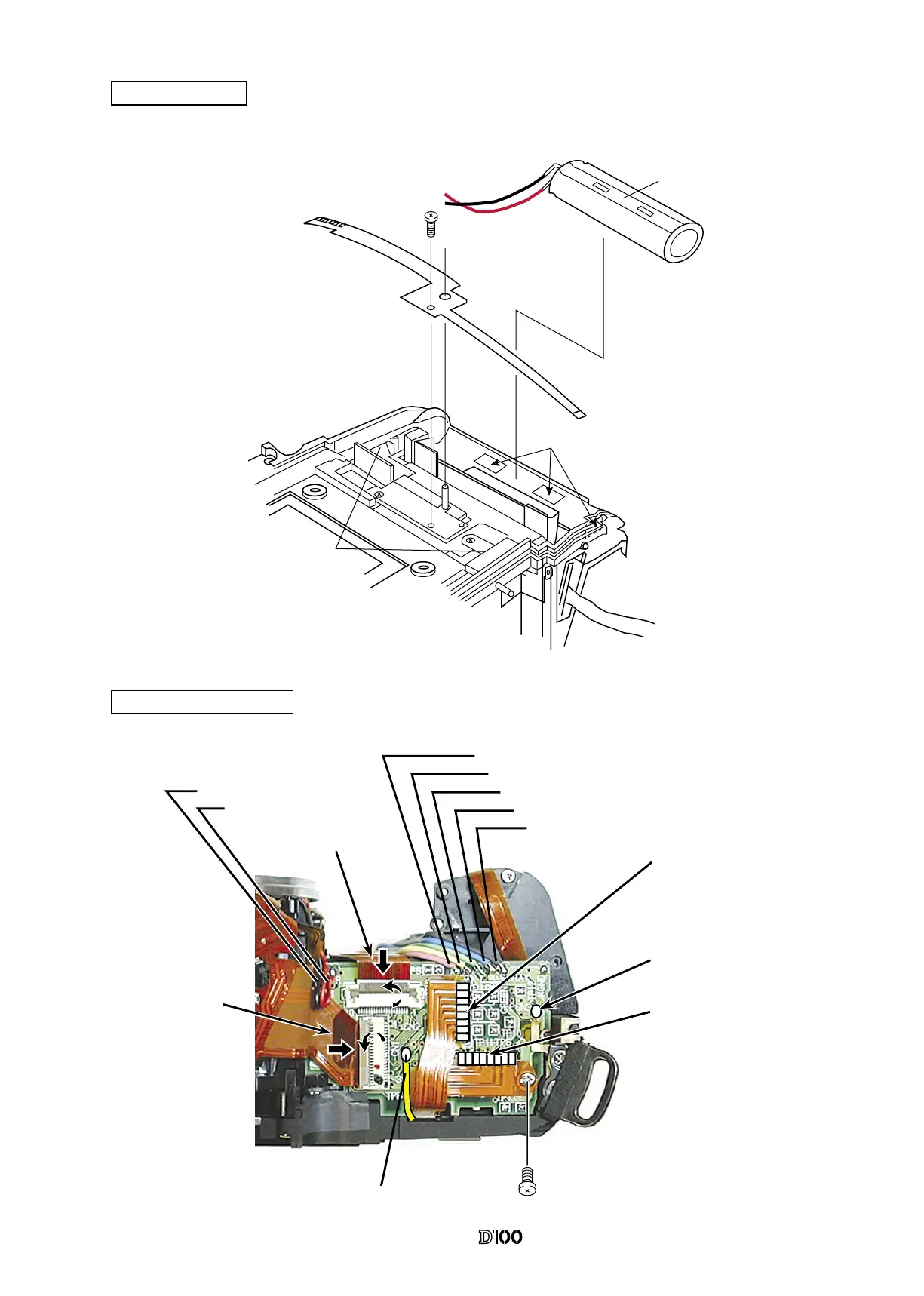

Main Condensor
Square holes
Marking for GND
#607
Connection FPC
Both-sided adhesive tape
・
Pass the ends of the connection FPC through the square holes.
Power Drive PCB Unit
#643
Connection FPC soldering
bridge between the power
drive PCB and the DC/DC
PCB.
Soldering bridge on the
rag plate.
Connection FPC soldering
bridge between the power
dr i ve P C B a n d t h e S B
PCB.
Main FPC
ＳＱＦＰＣ
Red:DC/DC PCB
Yellow:DC/DC PCB
Green:DC/DC PCB
Blue:DC/DC PCB
Black:DC/DC PCB
Black: DC/DC PCB
Red:DC/DC PCB
Yellow:SB PCB
