VBA10201-R.3577.A
- Ｄ1 ･ -
Disassembling
Cautions:
①
In disassembly and assembly, carry out the work by using the conductive mat (J5033) and list straps
(J5033-5) to protect the electric parts from static electricity.
②
Before disassembling, remove the batteries or the AC power cord.
③
When disassembling, remember the processed condition of lead wires and FPC, the setting positions and
kinds of screws, etc.
④
The low-pass lter of the image CCD PCB unit is liable to damage. Handle it very carefully.
⑤
In disassembly, a large assembly unit is sometimes removed. If such a large unit must be disassembled
furthermore, refer to the exploded drawings.
⑥
The chapters of disassembling and assembly do not mention the water proof sponge. When the part is
replaced, refer to the exploded drawings and set a waterproof sponge. For the setting position, refer to the
original part to be replaced.
⑦
The battery for backup is mounted on the DC/DC PCB. For replacing the battery for backup, accordingly,
disassemble the DC/DC PCB as well.

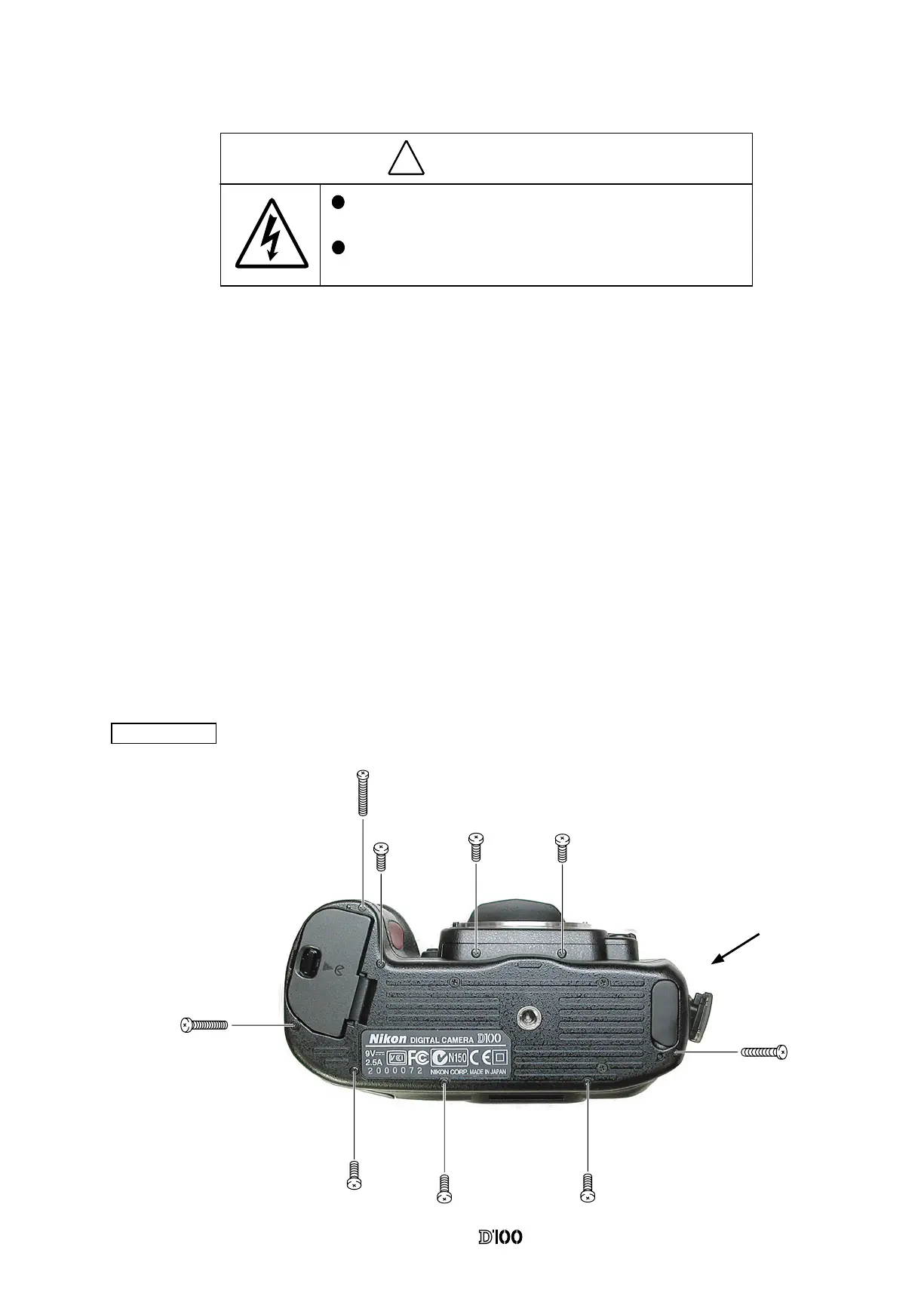

1. SEPARATION OF THE FRONT BODY FROM THE REAR BODY
Bottom Cover
#805
#662x6
#806
#664
Open the I/F cover.
WARNING
There are high voltege parts inside. Be careful of this electric shock,
when you remove the cover.
You must discharge the main condenser according to the instruction
of this repair manual before you remove the cover.
!
To Next Page
