Nikon D100 VBA10201 - Mount Top Cover to Body; Mount the Screws

VBA10201-R.3577.A
- Ａ26 ･ -

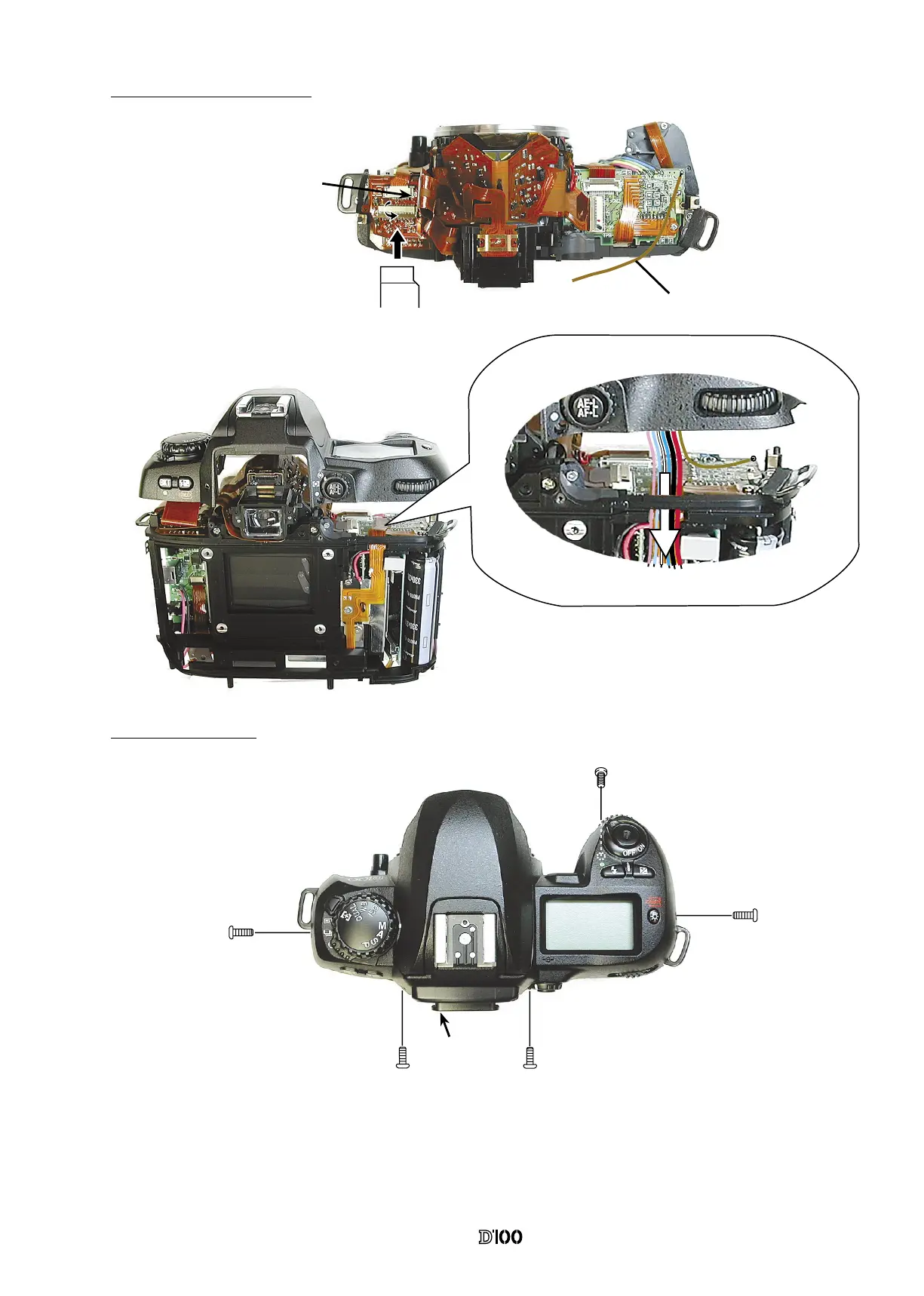

4. Mount Top Cover to Body
Top Cover FPC
Brown:Top Cover GND
5. Mount the Screws
#665x2
#835x2
#628
E y e p i e c e
frame B271
A f t e r t h e T o p C o v e r
F P C i s c o n n e c t e d t o t h e
connector, afx the FPC with
double-sided adhesive tape.
● Attach the eyepiece frame B271, setting the diopter adjustment lever to “-” side (lowest position) and
passing the frame under the movable lens lever.
Check : After the eyepiece frame is attached, slide the diopter adjustment lever and check the diopter
correction lens performance.
①
③
②
④
⑤
● Tighten the screws in order
of
①
to
⑤
.
