Nikon D100 VBA10201 - DC;DC PCB Unit

VBA10201-R.3577.A
- Ａ28 ･ -

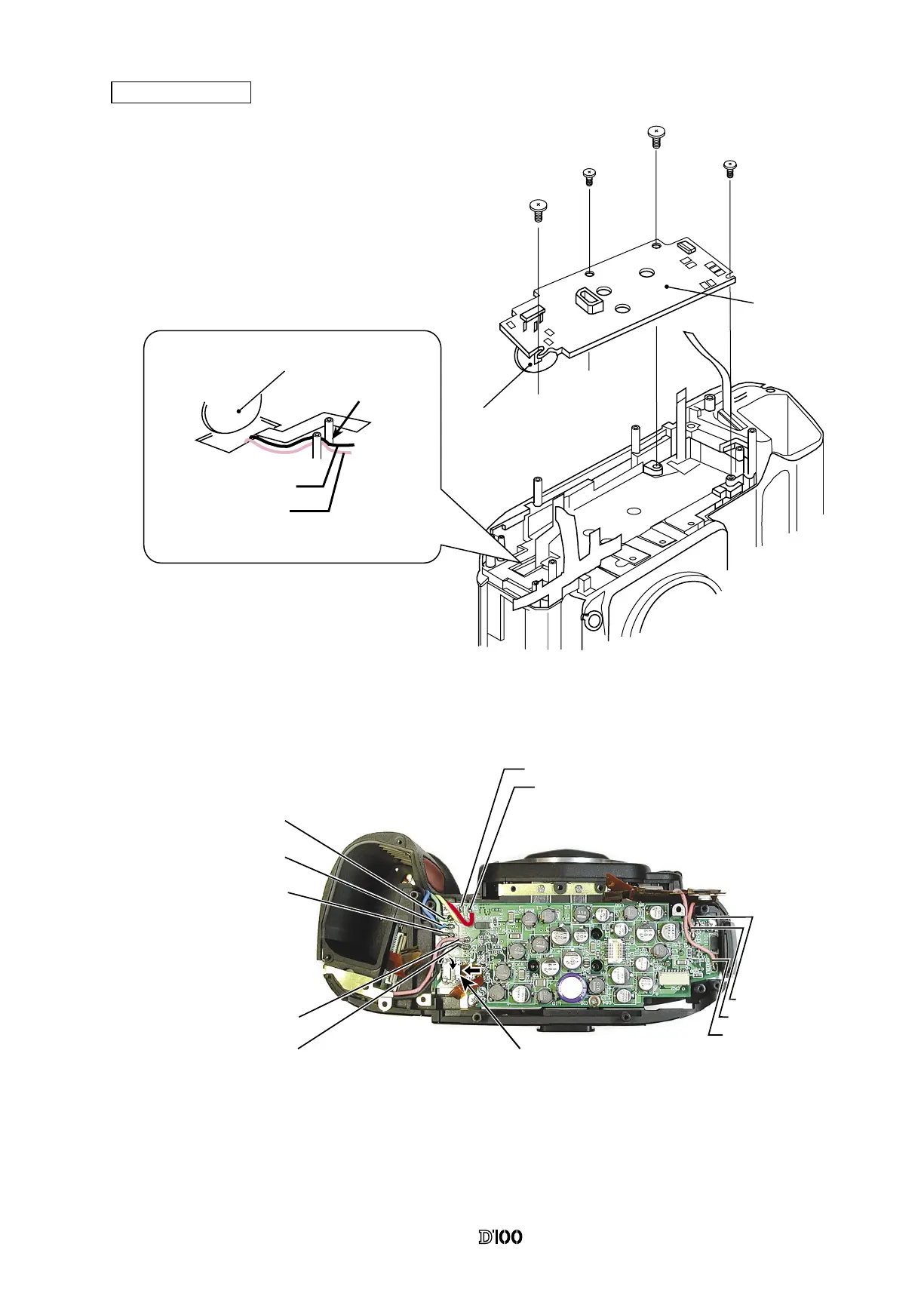

DC/DC PCB Unit
#830x2
#732x2
Battery for backup
DC/DC PCB
①
②
③
④
●
Tighten the screws in order of
①
to
④
.
Battery for backup
Black:I/F PCB
Pink:I/F PCB
Pass the PCB
th r o u gh t h e
boss
Yellow:Power Drive PCB
Red:Power Drive PCB
Green:Power Drive PCB
Blue:Power Drive PCB
Black:Power Drive PCB
Pink:Battery Contact
Black:Battery Contact
FPC from Power Drive PCB
Pink:I/F PCB
Pink:Main FPC
Black:I/F PCB
