Nikon D100 VBA10201 - Removal of Shutter; Sq Fpc

VBA10201-R.3577.A
- Ｄ10 ･ -

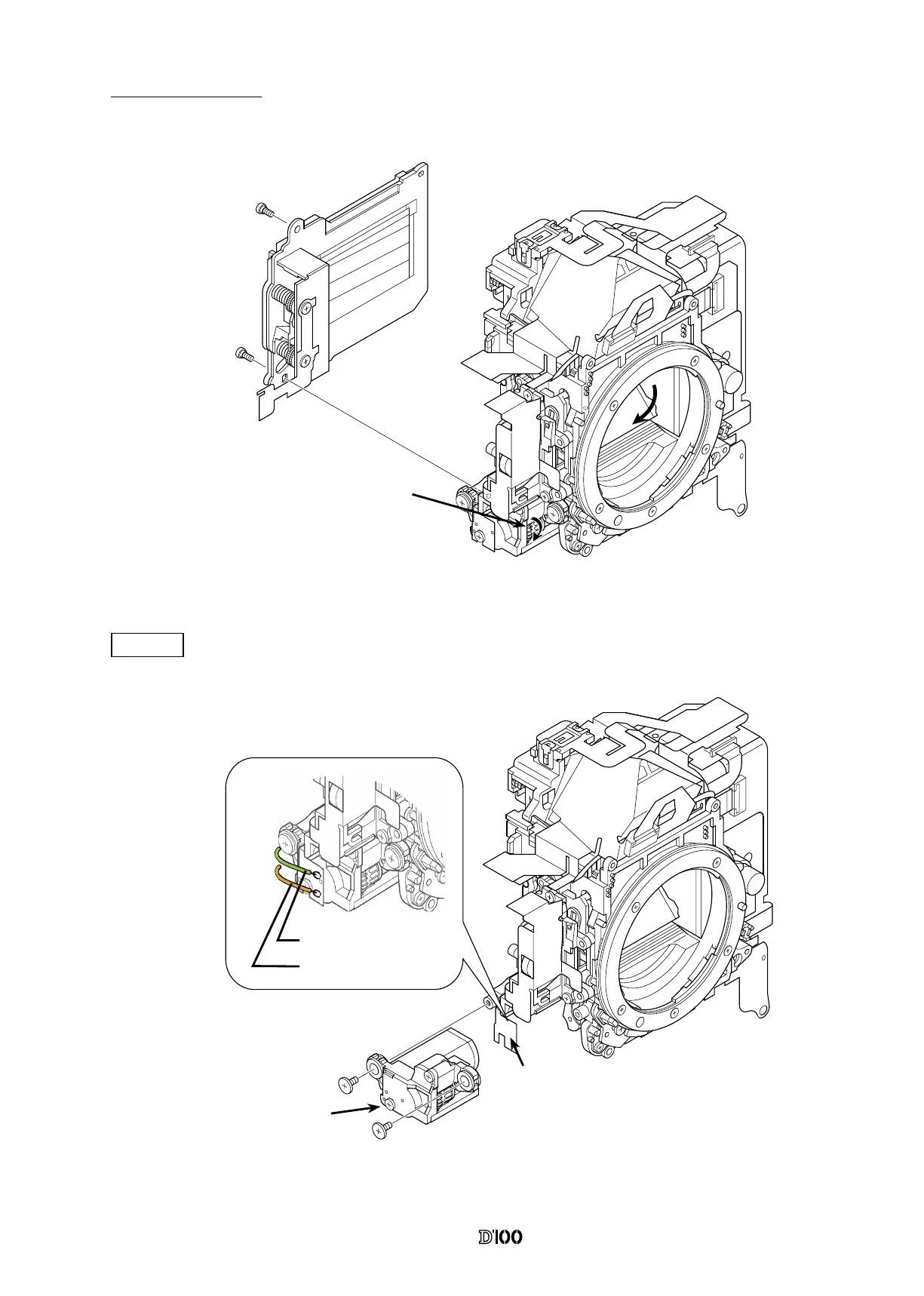

2. Removal of Shutter
● After removing the shutter, rotate the
white gear of the SQ PCB in an arrow
direction for the mirror down.
SQ FPC
B31
#736x2
Loosen the screw #732 1-2
turns to peel off the SQ FPC.
Green：SQ motor
Orange：SQ motor
SQ FPC
B91
#734x2
