Nikon D100 VBA10201 - Solder Wires; Grip Cover, I;F Cover and Front Cover

VBA10201-R.3577.A
- Ａ27 ･ -
6. Solder Wires
Black: Main Condenser
Red:Main Condenser
Blue:AF Assist lamp
Pink:AF Assist lamp
Black:
ＳＢ
Blue:
ＳＢ
White:
ＳＢ
Red:
ＳＢ

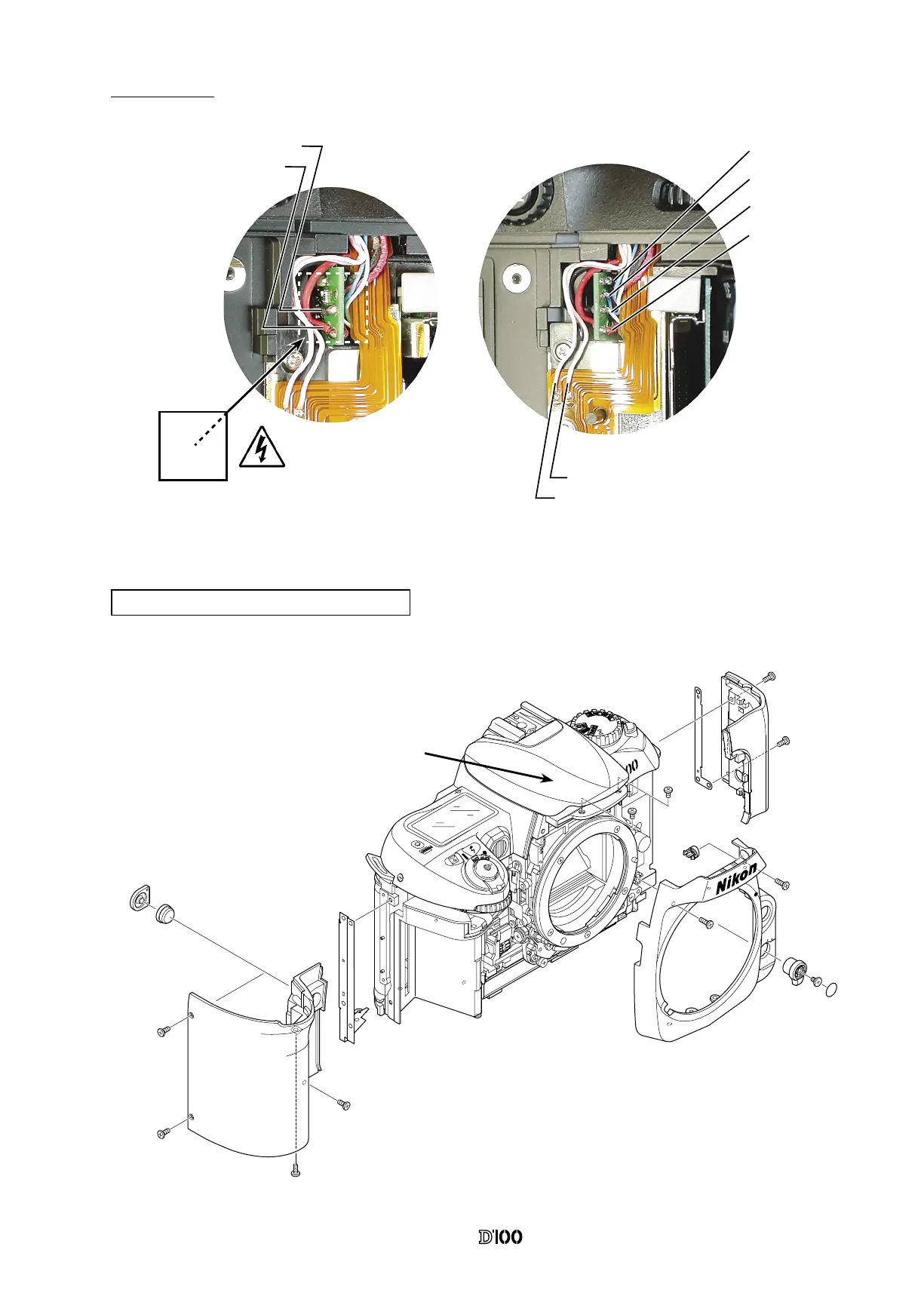

Grip Cover, I/F Cover and Front Cover
S
C
ON
OF
F
s
WB
M
P
S
A
QU
AL
IS
O
F
O
R
M
A
T
#615x2
#628
#833
#160
#137
#138
#26
#623
#121
#124
#312
#105
B24
#28
#616x2
#632x2
#821x2
●
Assemble the Front Cover B24 rst.
Pop up the built-in SB and
mount the screw #616×2.
Note: Afx a piece of tape until the
camera can be adjusted to avoid the
electric shock.
