Chapter 5 Laser Unit

5.3 C-LU3EX Three-laser Unit EX

1-144

Fine-adjusting the angle of the other two dichroic mirror adjustment units and adjusting the

beam shift unit

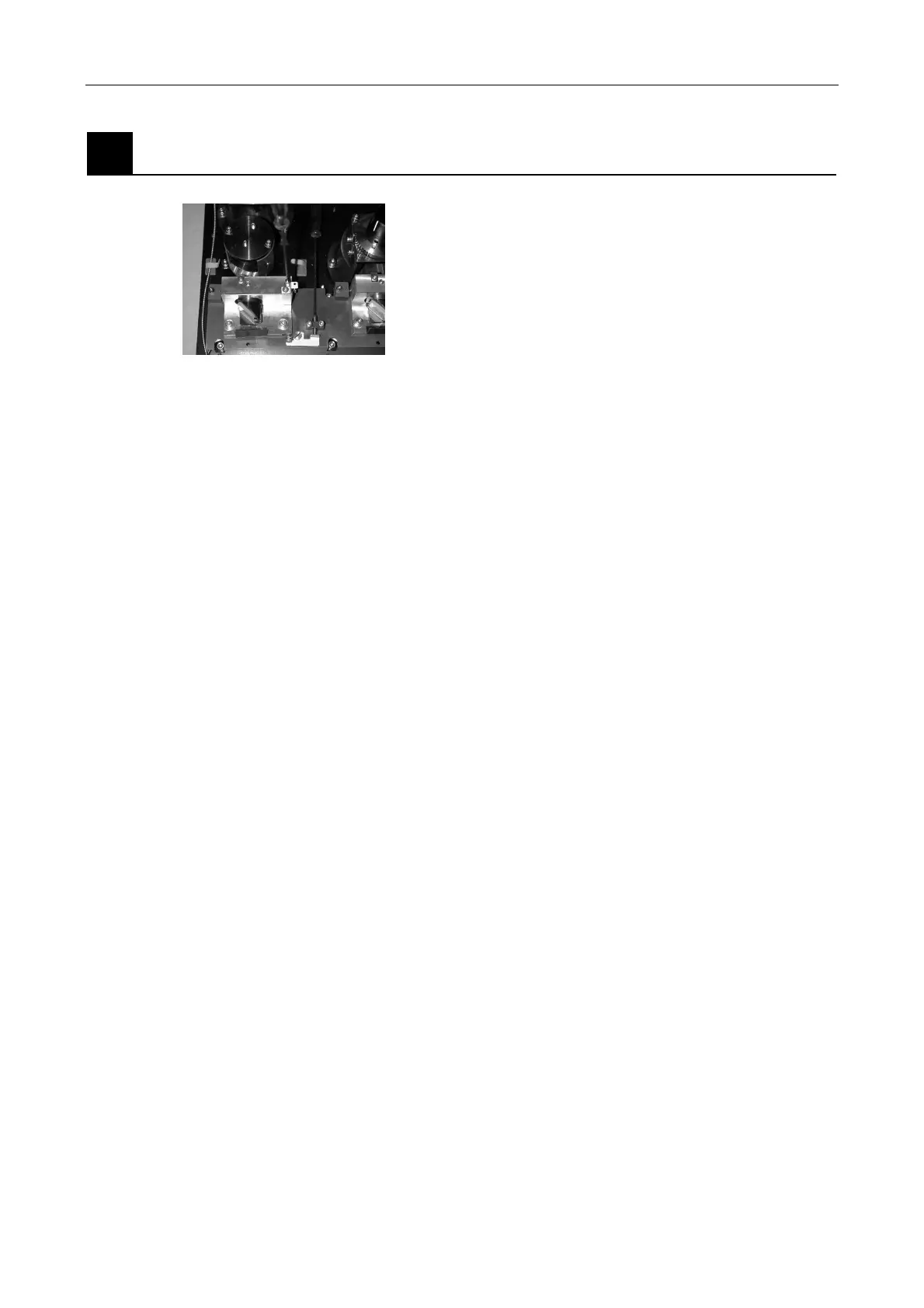

Figure 5.3-52

1. Adjust the angle of the dichroic mirror adjustment

unit and align the He-Ne laser beam position with the

target positioned at a distance of 50 cm.

Since the cross-section of the 405 cylindrical laser

beam is upright elliptical, estimate a center point and

use this for alignment.
