Chapter 5 Laser Unit
5.4 LU4A Four-laser Module A
1-168
7

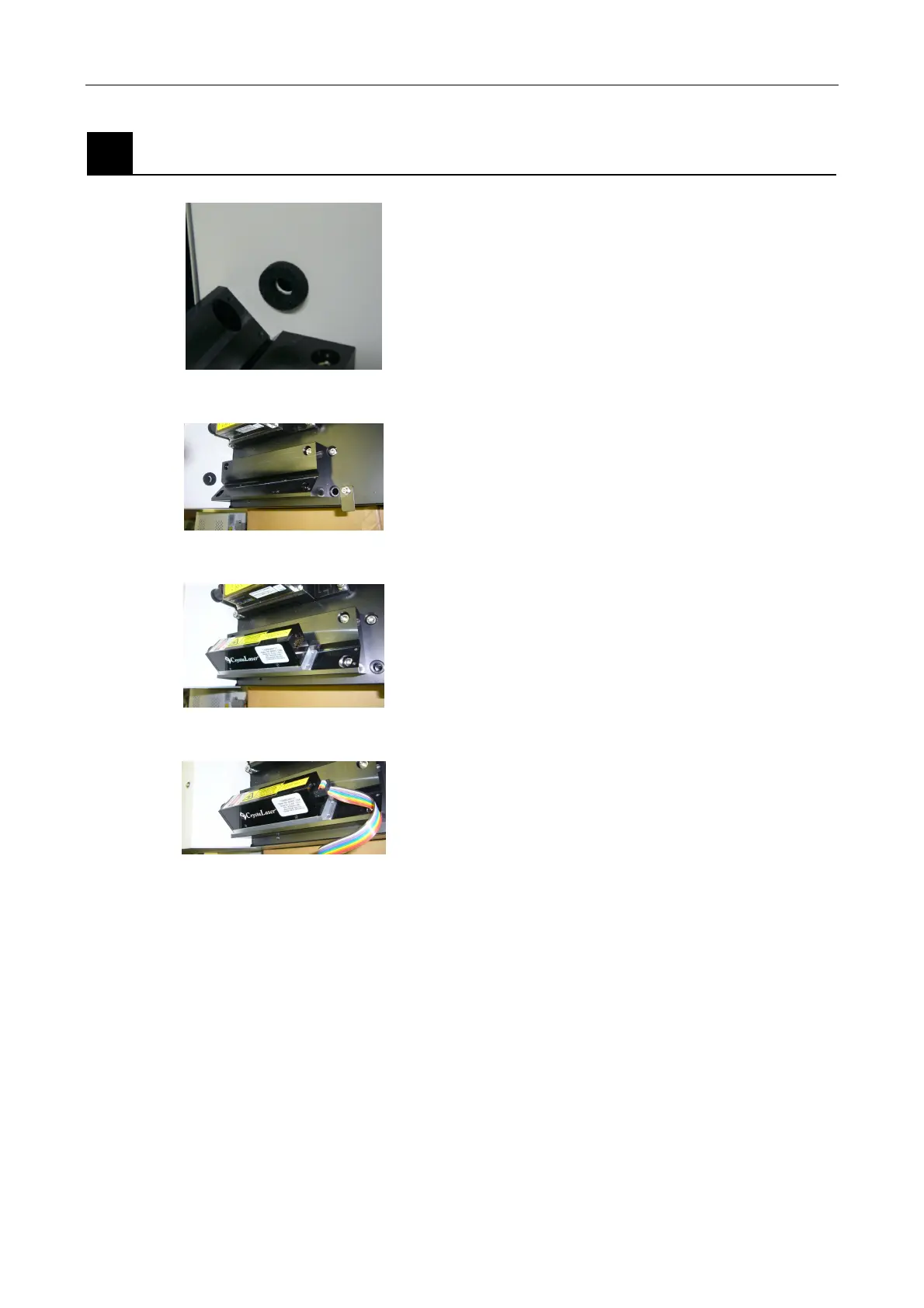

647-nm (Crystalaser) solid-state laser installation
Figure 5.4-33
1. Attach a black ring to the L1 laser inlet of the LU4A
body.
Figure 5.4-34
2. Install the 647-nm laser adapter to L1 of the LU4A.
(Tilt the laser itself 45 degrees to match the laser
output polarization.)
Figure 5.4-35
Figure 5.4-36
3. Install the laser to the laser adapter with the screws
supplied with the laser adapter so that the laser is
pressed against the black ring. (Open the shutter
incorporated in the end of the laser body before
installing the laser.)
This is the end of the laser installation.
