Chapter 1 System Configurations and Part Names
1.4 Name of Each Part
2-18
Protection plate (for nosepiece)
The protection plate (for nosepiece) is a
component designed for shielding the gap between
the nosepiece and the epi-fl filter turret to avoid
accidental jamming of fingers inserted into the gap
or the laser radiation from the gap.
Two types of protection plate are prepared for the
nosepiece being used. One for the TI-N6, TI-ND6
and TI-ND6-E nosepieces is supplied with Ti-E and
Ti-E/B, and the other for the TI-ND6-PFS
nosepiece is supplied with the nosepiece. Follow
the procedure described in “4.2.2 Attaching the
Laser Safety Kit” to attach the protection plate in
place.

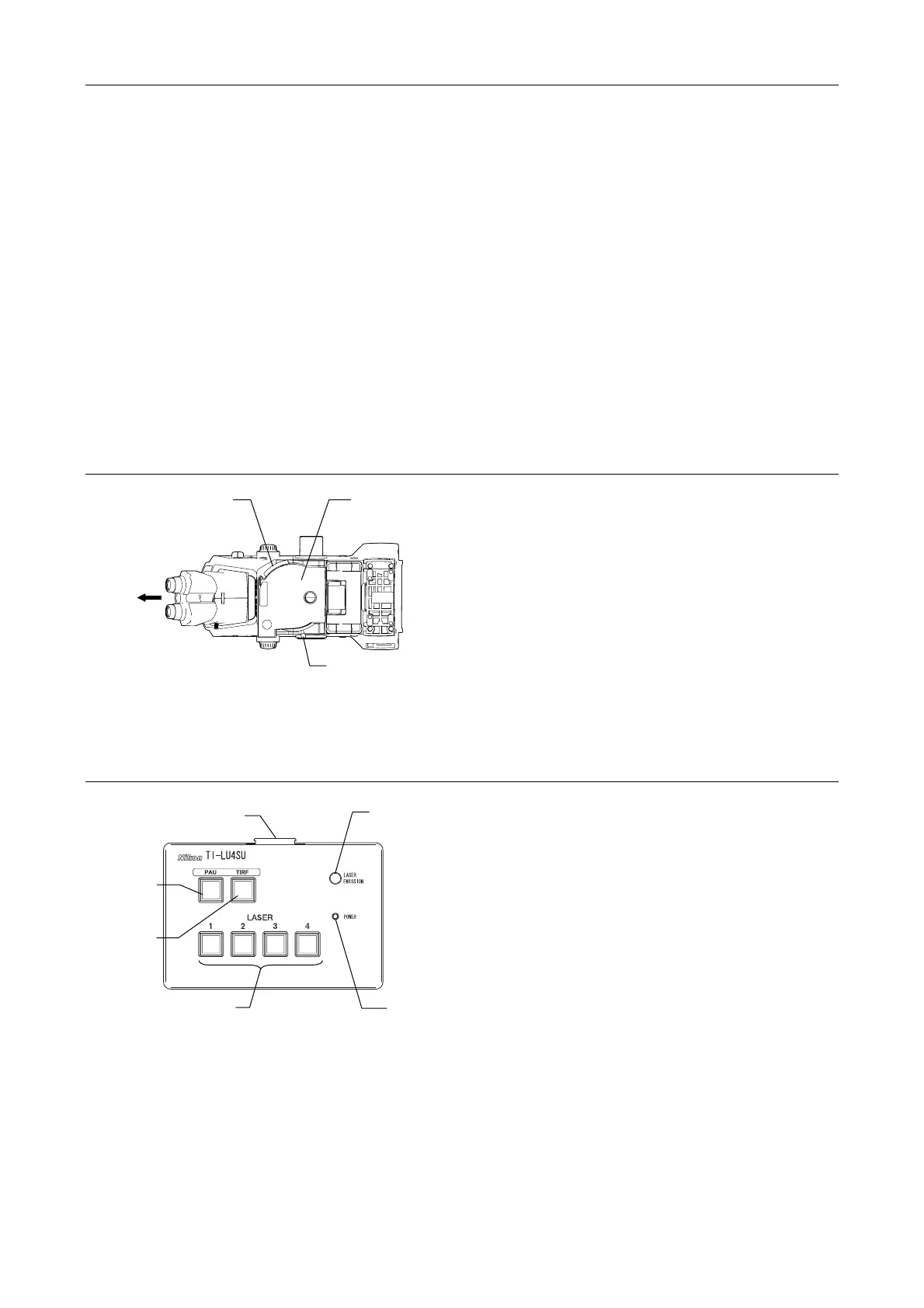

TI-FLC-E motorized epi-fl filter turret or TI-FLC-E/HQ motor epi-fl filter turret
Figure 1.4-9
The epi-fl filter turret is used to select an excitation
method by rotating the turret to change filter cubes
including a dichroic mirror.
Alternatively, use the TI-FLC epi-fl filter turret for
manual change of filter cubes.
TI-LU4SU shutter unit LU4
Figure 1.4-10
The shutter unit controls motorized shutters in the
laser unit.
Front
TI-FLC-E or
TI-FLC-E/HQ
Filter cube port
(and its cover)
Shutter lever
(O: open, C: close)
PAU shutte
switch
Laser unit connector
Indicator lamp
Power lamp
Laser shutter switch
TIRF shutte
switch
To Next Page
