Nikon Eclipse TI-TIRF-E User Manual

Chapter 1 System Configurations and Part Names
1.4 Name of Each Part
2-19

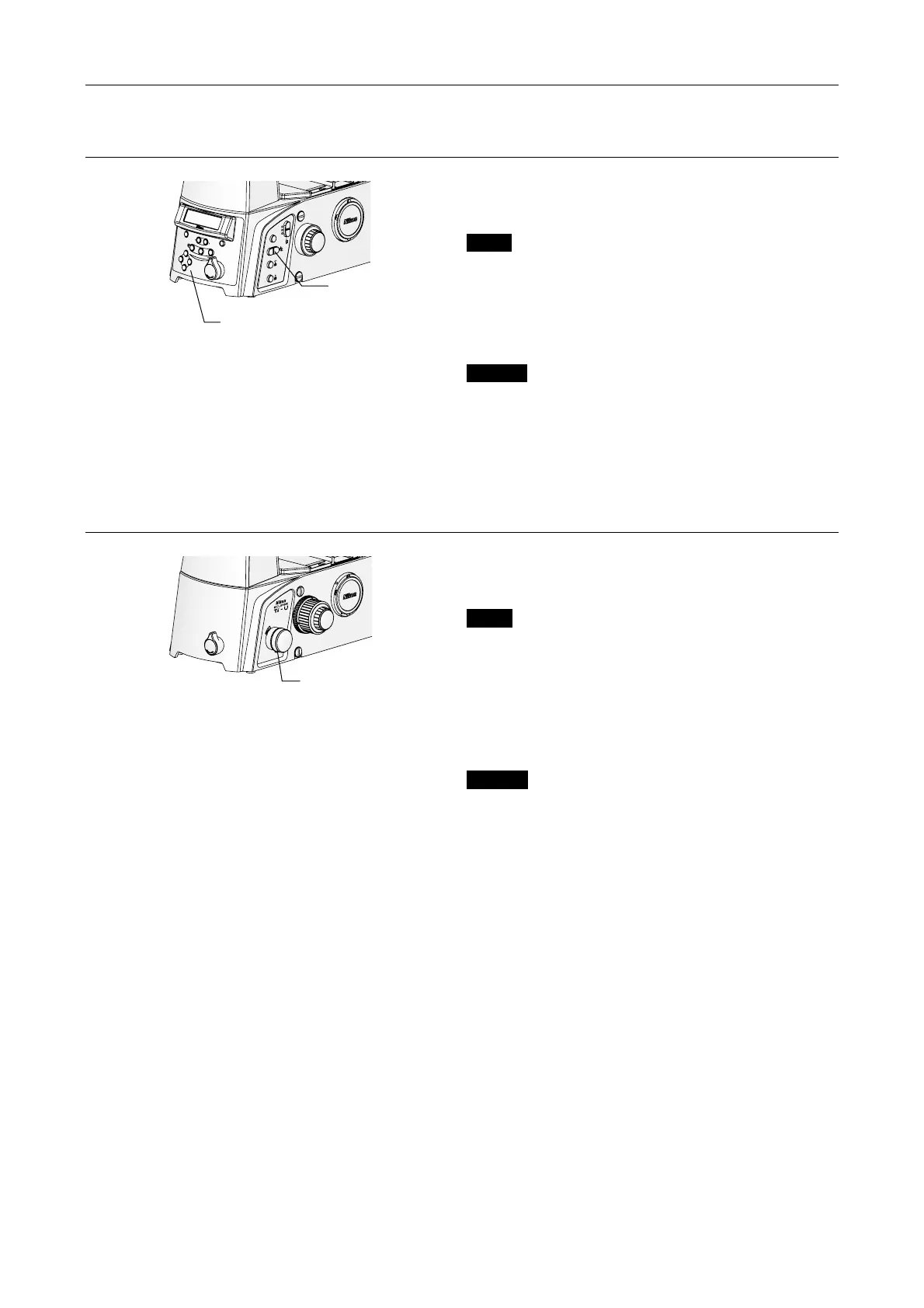

Optical path selector switch (Ti-E, Ti-E/B)
Coarse
Fine
ExFine
Epi Shutter
FL Block
Refocus
Escape
L80
EYE
MEMORY
DISPLAY
ON
Z
-
RESET
1X
1.5X
BRIGHTNESS
R100
L100
FOCUS
PFS
Figure 1.4-11
The laser shutter does not open when the binocular
route of the optical path (“EYE”) is selected.
Ti-E
EYE Observation port 100%
L100 Left port 100%
L80 Left port 80% and observation port 20%
R100 Right port 100%
Ti-E/B
EYE Observation port 100%
L100 Left port 100%
L80 Left port 80% and observation port 20%
B100 Bottom port 100%
Optical path selector knob (Ti-U, Ti-U/B)
PORT
Figure 1.4-12
The laser shutter does not open when the binocular
route of the optical path (“EYE”) is selected.
Ti-U *
EYE Observation port 100%
R Right port 100%
AUX Auxiliary port
(Visual observation/left port = 20:80)
(Visual observation/right port = 20:80)
L Left port 100%
Ti-U/B
EYE Observation port 100%
R Right port 100%
B Bottom port 100%
L Left port 100%
* The Ti-U is also available with an optical-path
splitter prism preinstalled at the auxiliary port. The
light intensity ratio of visual observation to left port
is 20 to 80.
In this case, set the optical path selector knob as
follows:
EYE Observation port 100%
R Right port 100%
L80 Visual observation/left port = 20:80
L Left port 100%
Optical path selector switch
PORT dial
(
o
p
tical
p
ath selector knob
)
FL Block switch
(filter cube selector)
