Nikon Eclipse TI-TIRF-E - Page 298

Chapter 4 Setting Up the Microscope
4.2 Setup Procedure
2-40

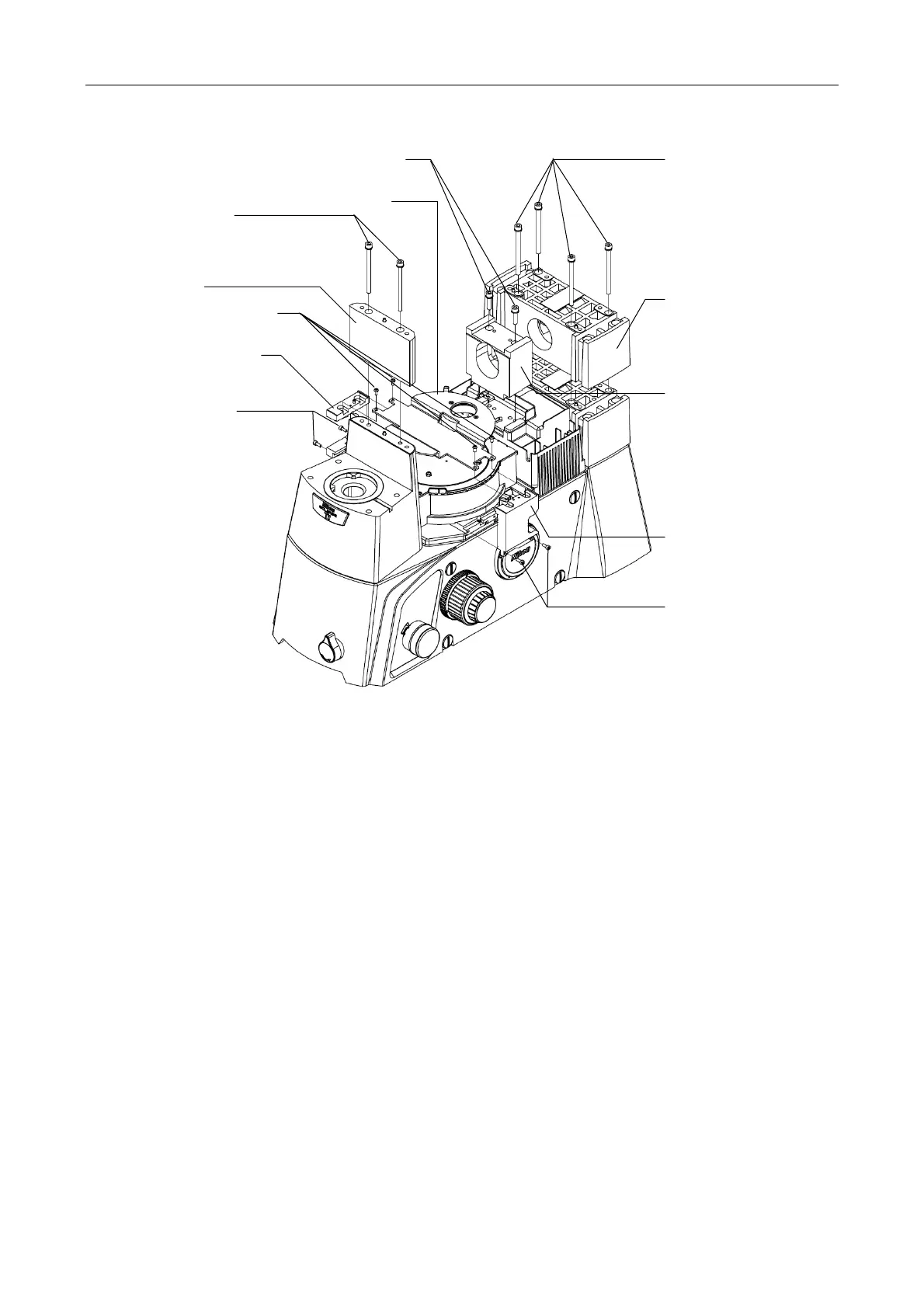

Figure 4.2-18
Hexagon socket head bolt
(M5, two)
Stage support block
Hexagon socket head button bolt
(M3, four)
Epi-fl filter turret support block
(left)
Hexagon socket head bolt
(M3, two)
Hexagon socket head bolt
(M5, two)
Shielding plate
Hexagon socket head bolt
(M5, four)
Dia-illuminator pillar support
block
Nosepiece support block
Epi-fl filter turret support block
(right)
Hexagon socket head bolt
(M3, two)
