Chapter 4 Setting Up the Microscope
4.2 Setup Procedure
2-41
Attaching the support pillar extension
To attach the TIRF-PAU illuminator unit to the upper tier, attach the support pillar extension supplied with the
stage up kit to the support pillar supplied with the illuminator unit.

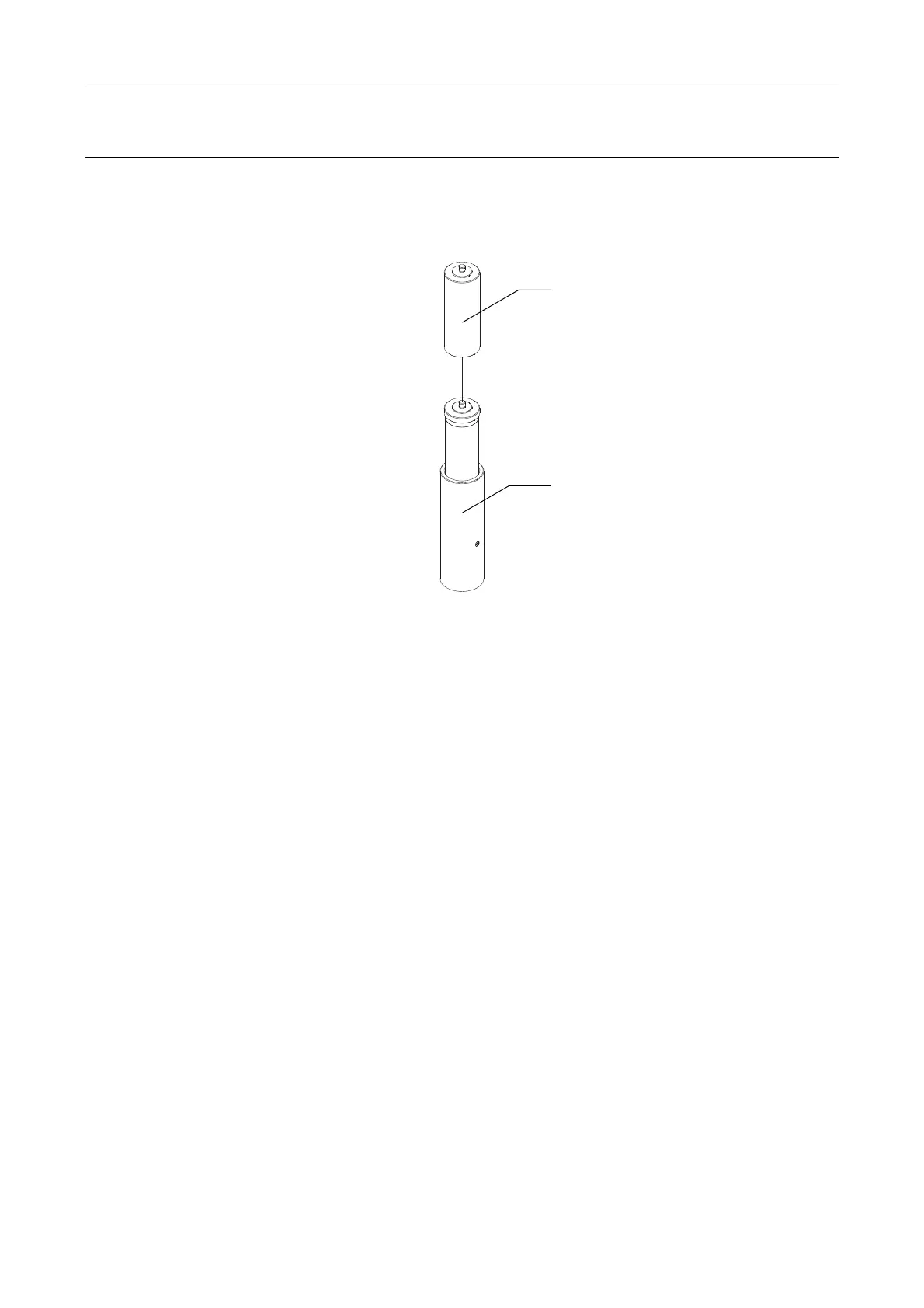

Figure 4.2-19
Support pillar extension
(supplied with the stage up kit)
Support pillar
(supplied with the illuminator unit)
