Chapter 1 System Configurations and Part Names
1.1 Overview
1-16

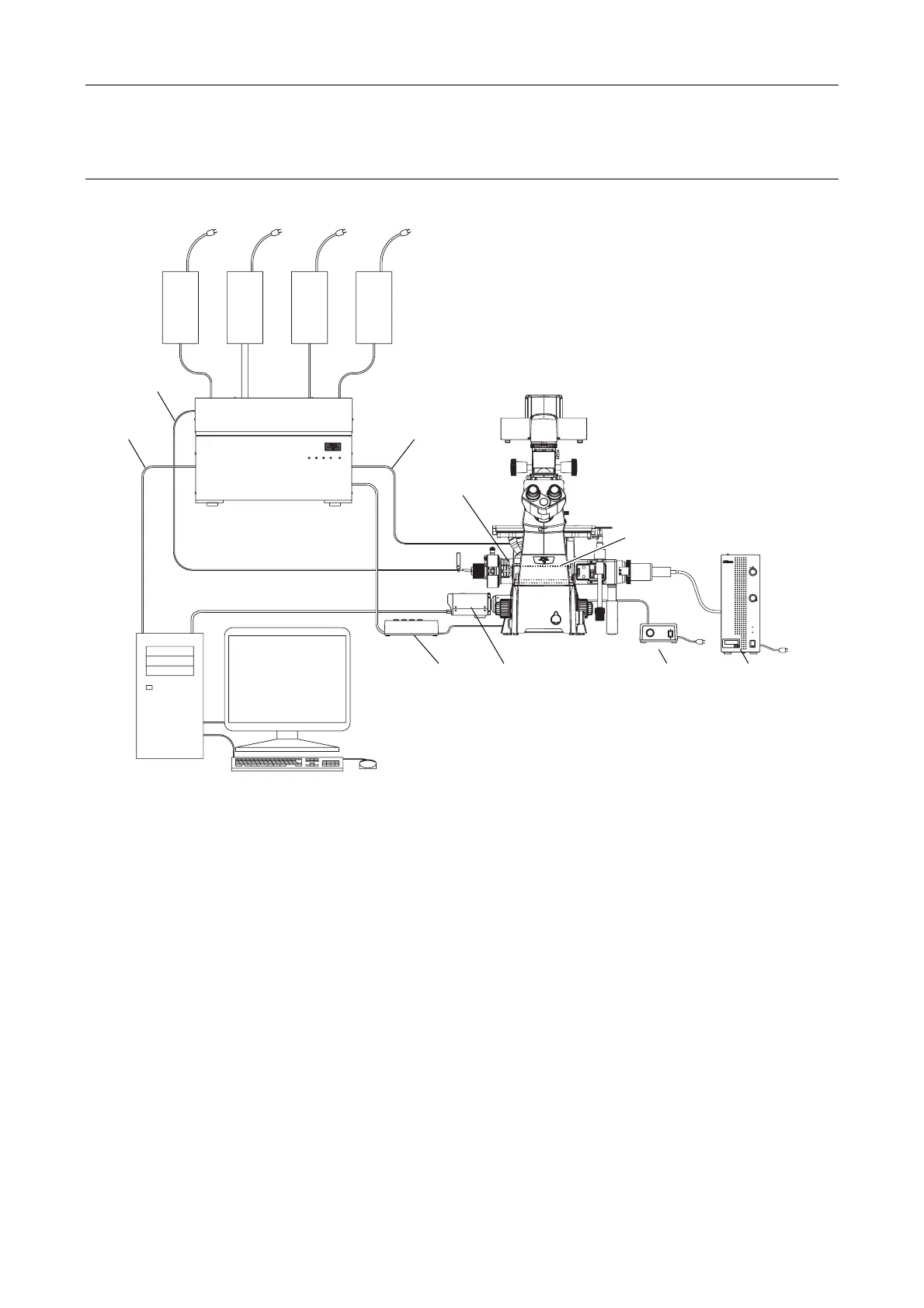

Photo activation illuminator unit and Ti-U (front view):
When used with four-laser module A
(Standard configuration to use the photo activation illuminator unit)
L4
L3
L2
L1
POWER
CAUTION
–
CLASS 3B
LASER RADIATION WHEN OPEN
AVOID EXPOSURE TO THE BEAM
Figure 1.1-13
* For details, see Section 8.1, “Overall Configuration,” in Chapter 8, “Specifications and Performance.”
(1) Power supply devices for the laser devices
(2) Laser unit (LU4A)
(3) PC
(4) Optical fiber
(5) TI-LU4SU shutter unit LU4
(6) TV camera (video camera)
(7) TI-FLC epi-fl filter turret
(8) Power supply device for the diascopic illumination
(9) Photo activation illuminator unit
(10) HG fiber light source
(11) Interlock cable
(12) USB cable
(1)
(5)
(9)
(3)
(2)
(12)
(6) (8) (10)
(7)
11
(4)
To Next Page
