Nikon Eclipse TI-TIRF-E User Manual

Chapter 1 System Configurations and Part Names
1.1 Overview
1-17

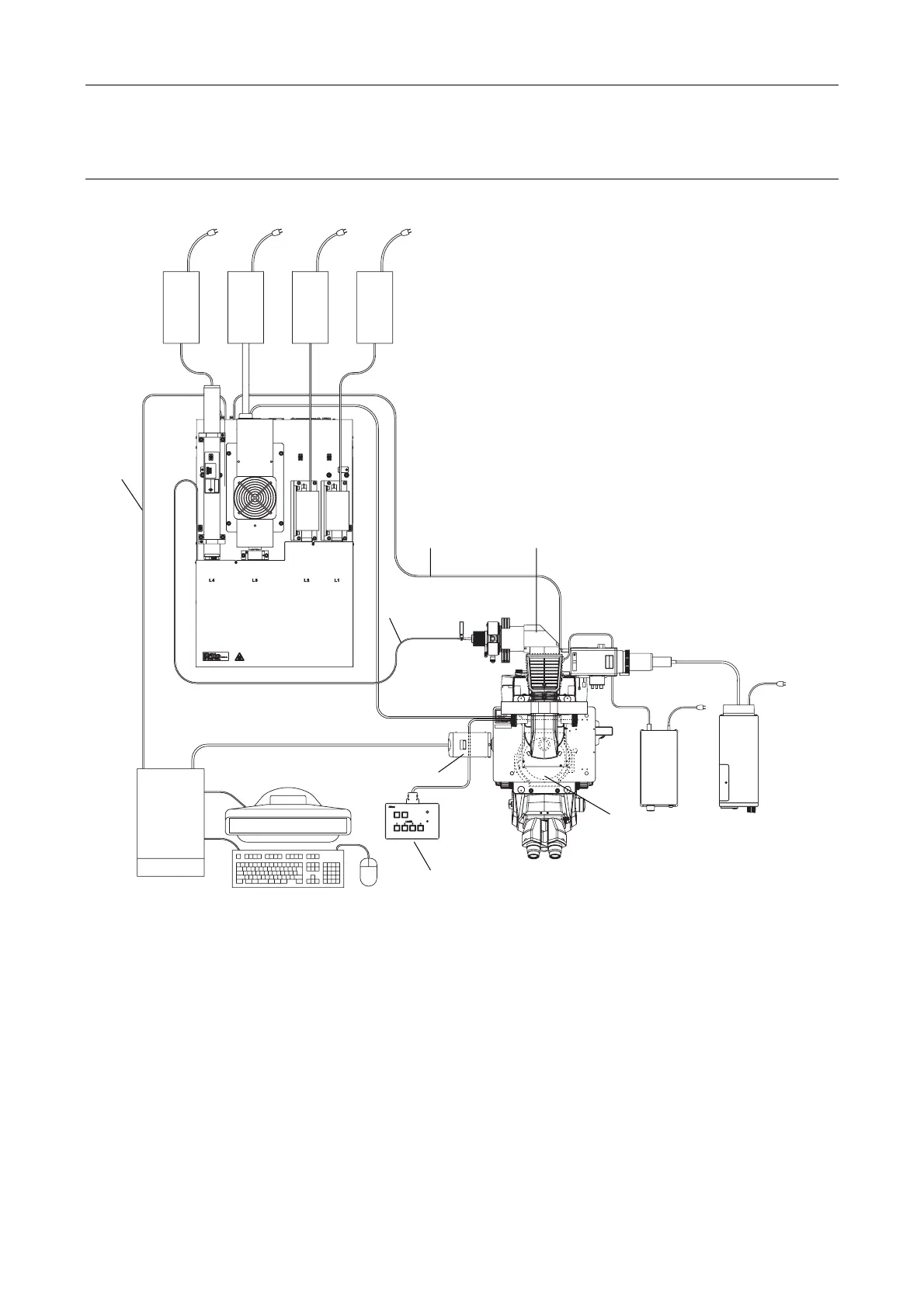

Photo activation illuminator unit and Ti-U (top view):
When used with four-laser module A
(Standard configuration to use the photo activation illuminator unit)
POWER
TI-LU4SU
EMISSION
LASER
LASER RADIATION
AVOID EXPOSURE TO BE
CLASS 3B LASER PROD
AVOID EXPOSURE
LASER LIGHT IS EMITTED
FROM
OBJECTIVE APERTURE
CAUTION
–
CLASS 3B
LASER RADIATION WHEN OPEN AVOID EXPOSURE TO THE BEAM VORSICHT
–
LASERSTRAHLUNG
KLASSE 3B, WENN ABDECKUNG GEÖFFNET NICHT DEM STRAHL AUSSETZEN
CAU
TION
–
CLASS 3B
LASER RA
DIATION WH
EN OPEN
AVO
ID EX
POSURE
TO T
HE BEAM
Figure 1.1-14
* For details, see Section 8.1, “Overall Configuration,” in Chapter 8, “Specifications and Performance.”
(1) Power supply devices for the laser devices
(2) Laser unit (LU4A)
(3) PC
(4) Optical fiber
(5) TI-LU4SU shutter unit LU4
(6) TV camera (video camera)
(7) TI-FLC epi-fl filter turret
(8) Power supply device for the diascopic illumination
(9) Photo activation illuminator unit
(10) HG fiber light source
(11) Interlock cable
(12) USB cable
(1)
(4)
(6)
(7)
(9)
(3)
(2)
(5)
(8)
(10)
(
11
)
(12)
