Nikon Eclipse TI-TIRF-E User Manual

Chapter 1 System Configurations and Part Names
1.4 Name of Each Part
1-43

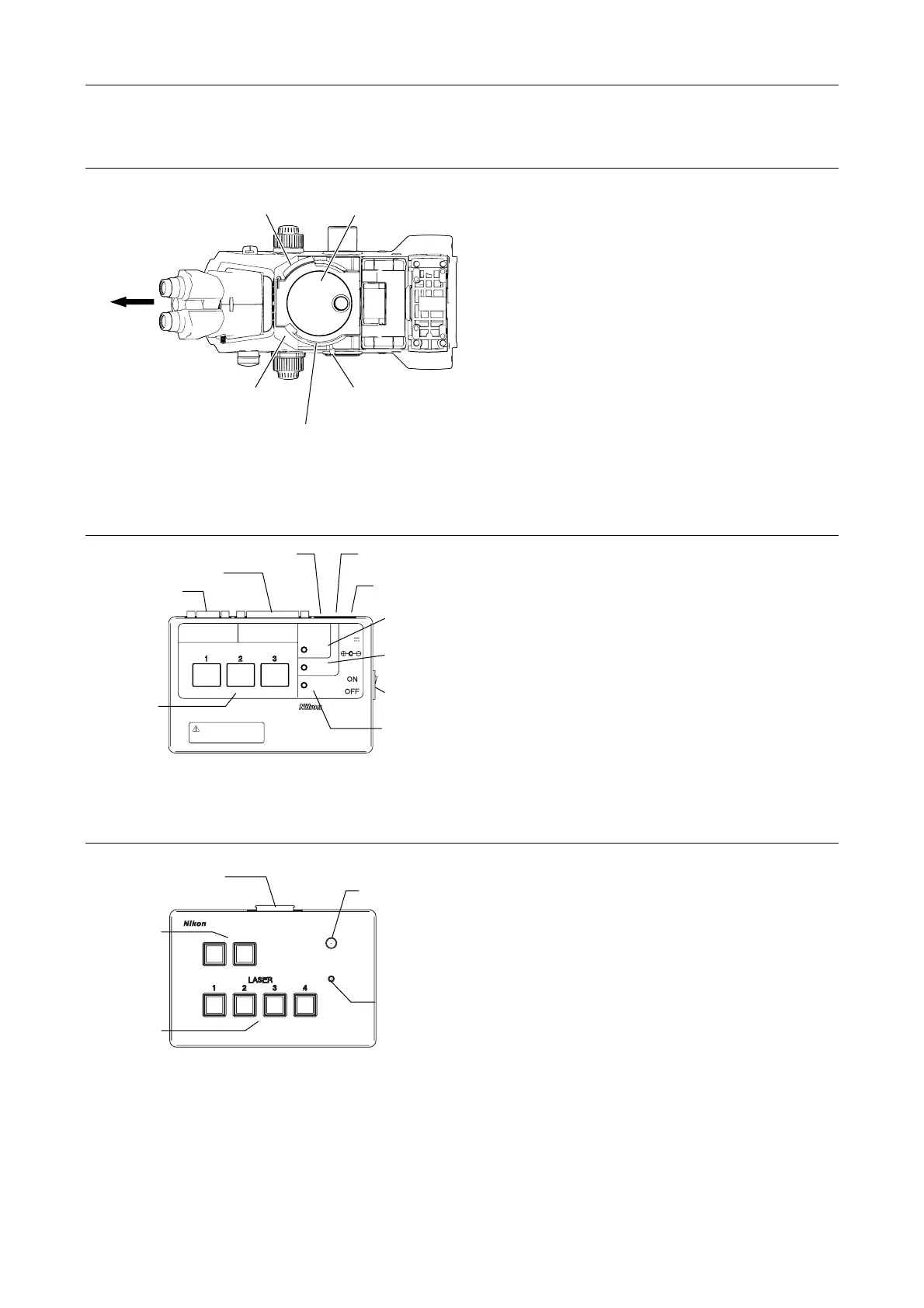

TI-FLC epi-fl filter turret
Figure 1.4-7
The epi-fl filter turret is used to select an excitation
method by rotating the turret to change filter cubes
including a dichroic mirror.
TI-LUSU shutter unit
RS-232C LASER UNIT
TI-LUSU
INPUT
1A
POWER
SAFETY
COVER
CLOSE
BINO
CLOSE
12V
LASER SHUTTER
Exclusive use for TI
-
TIRF system
Don't use this unit with other systems.
Figure 1.4-8
The shutter unit controls motorized shutters in the
laser unit.
Use this unit in combination with the C-LU2, C-LU3 or
C-LU3EX laser unit.
TI-LU4SU shutter unit LU4
POWER
TI-LU4SU
EMISSION
LASER
Figure 1.4-9
The shutter unit controls motorized shutters in the
laser unit.
Use this unit in combination with the LU4A laser
unit.
If the safety interlock functions, all the shutters are
closed, and the lamp turns off.
To unlock the safety interlock, solve what caused
the safety interlock being locked, then cancel the
safety interlock from the software.
Safety cover signal connector
A
C adapter
connector
Eyepiece optical path
signal connector
Laser unit connecto
r
Serial IF connecto
r
Laser shutte
r
switch / indicato
r
Power lamp
Power switch
Eyepiece optical
path closed lamp
Safety cover
close lamp
Laser unit connecto
r
Option switch
Laser shutte
r
switch
Power lamp
Indicator lamp
Shutter lever
(O: open, C: close)
Filter cube port
(and its cover)
Filter cube address and
name on the optical path
TI-FLC epi-fl
filter turret
Filter cube rotation control
Front
