Chapter 1 System Configurations and Part Names
1.4 Name of Each Part
1-44

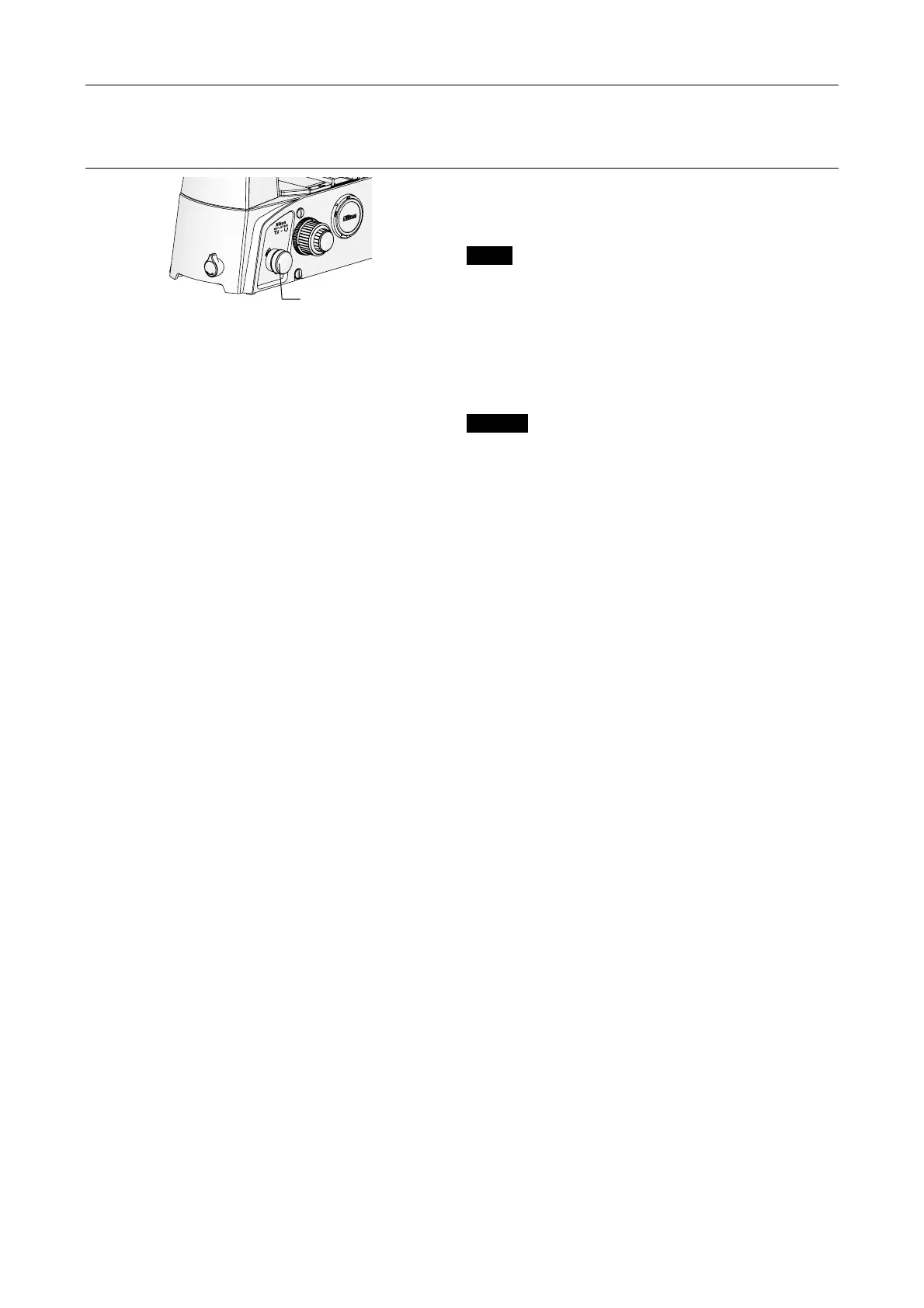

Optical path selector knob (on the microscope body)
PORT
Figure 1.4-10
The laser shutter does not open when the eyepiece
route of the optical path (“EYE”) is selected.
Ti-U *
EYE Observation port 100%
R Right port 100%
AUX Auxiliary port
(Observation/left port = 20:80)
(Observation/right port = 20:80)
L Left port 100%
Ti-U/B
EYE Observation port 100%
R Right port 100%
B Bottom port 100%
L Left port 100%
* The Ti-U is also available with an optical-path
splitter prism preinstalled at the auxiliary port. The
light intensity ratio of visual observation to left port
is 20 to 80.
In this case, set the optical path selector knob as
follows:
EYE Observation port 100%
R Right port 100%
L80 Visual observation/left port = 20:80
L Left port 100%
PORT dial
(optical path selector knob)
