Nikon Eclipse TI-TIRF-E User Manual

Chapter 1 System Configurations and Part Names
1.4 Name of Each Part
1-58
1.4.5 Laser Unit
Two-laser Unit (C-LU2)

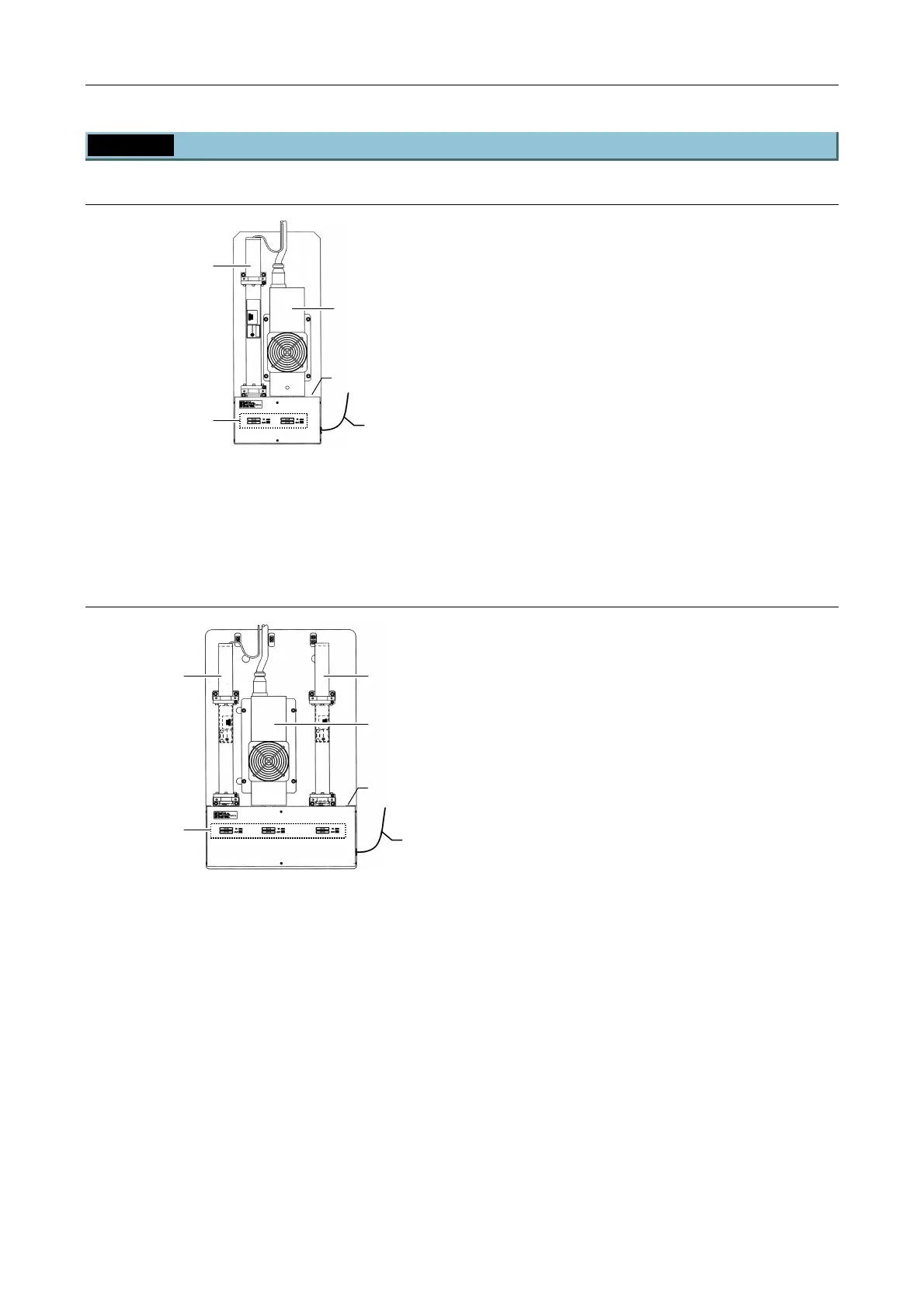

Figure 1.4-42
(1) Laser mounting position L1
(2) Laser mounting position L2
(3) Shutter unit connector
(4) ND filter slider
(5) Single-mode fiber
* For details of available lasers for each position of laser units, see Section 8.1.4, “Mountable Lasers” in
Chapter 8, “Specifications and Performance.”
Three-laser unit (C-LU3)
Figure 1.4-43
(1) Laser mounting position L1
(2) Laser mounting position L2
(3) Laser mounting position L3
(4) Shutter unit connector
(5) ND filter slider
(6) Single-mode fiber
* For details of available lasers for each position of laser units, see Section 8.1.4, “Mountable Lasers” in
Chapter 8, “Specifications and Performance.”
(2)
(1)
(4)
(3) (1)
(5)
(2)
(3)
(
5
)
(4)
(
6
)
