30 - Solution System 61Service Manual – SC250, Scrubtec 334, MA 30
Water Sensor
Removal
1. Remove the tank assembly from the machine.
2. Open the rear cover and remove the battery.
3. Remove upper cover from the machine body (A).

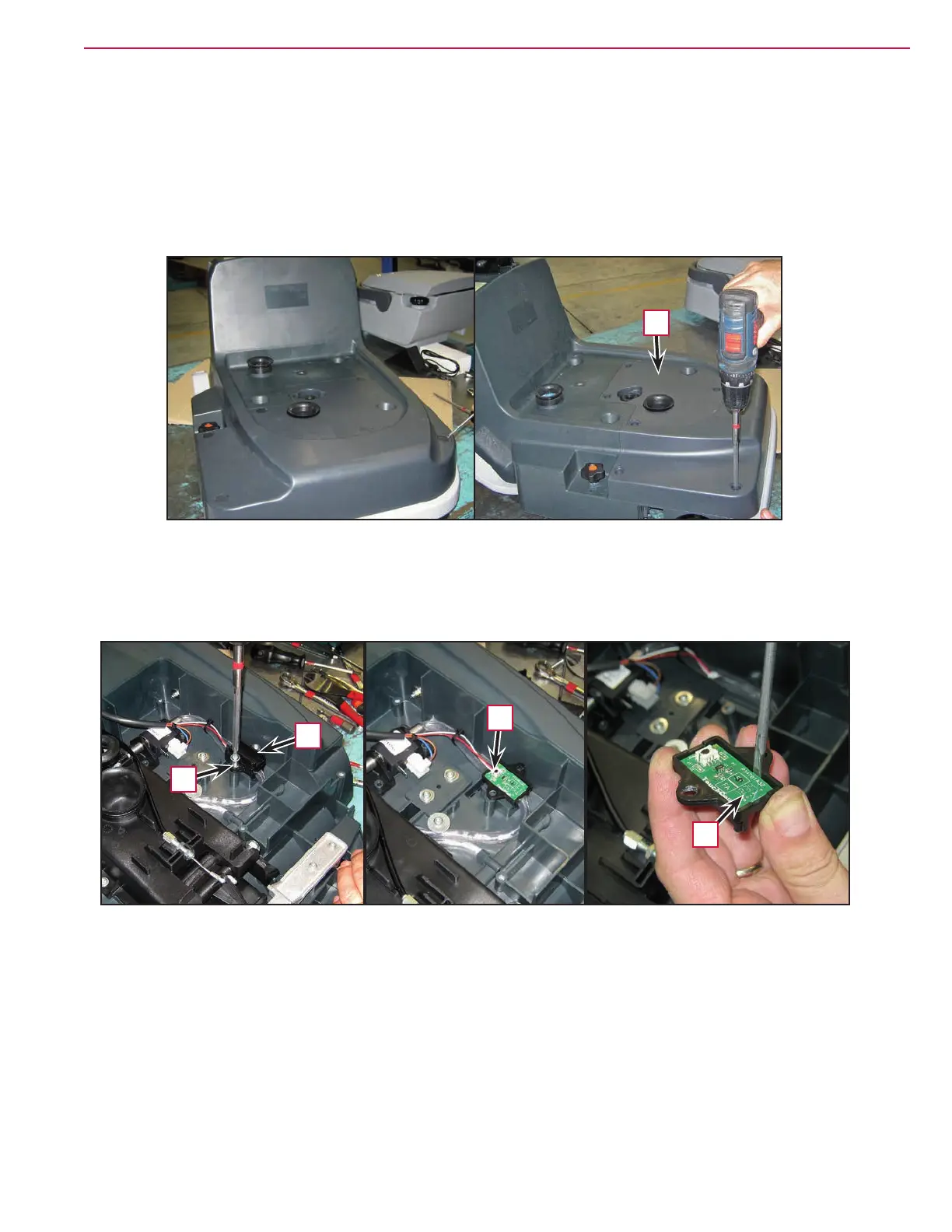

Figure 9
A
4. Remove the 2 screws (A) and lift the cover (B) off the sensor bracket.
5. Disconnect the connection (C) and remove the water sensor (D) from the bracket.
Figure 10
A
B
C
D
Installation
6. Assemble the components in the reverse order of disassembly.
