38 - Squeegee System 82Service Manual – SC250, Scrubtec 334, MA 30
Vacuum Duct (continues)
Installation

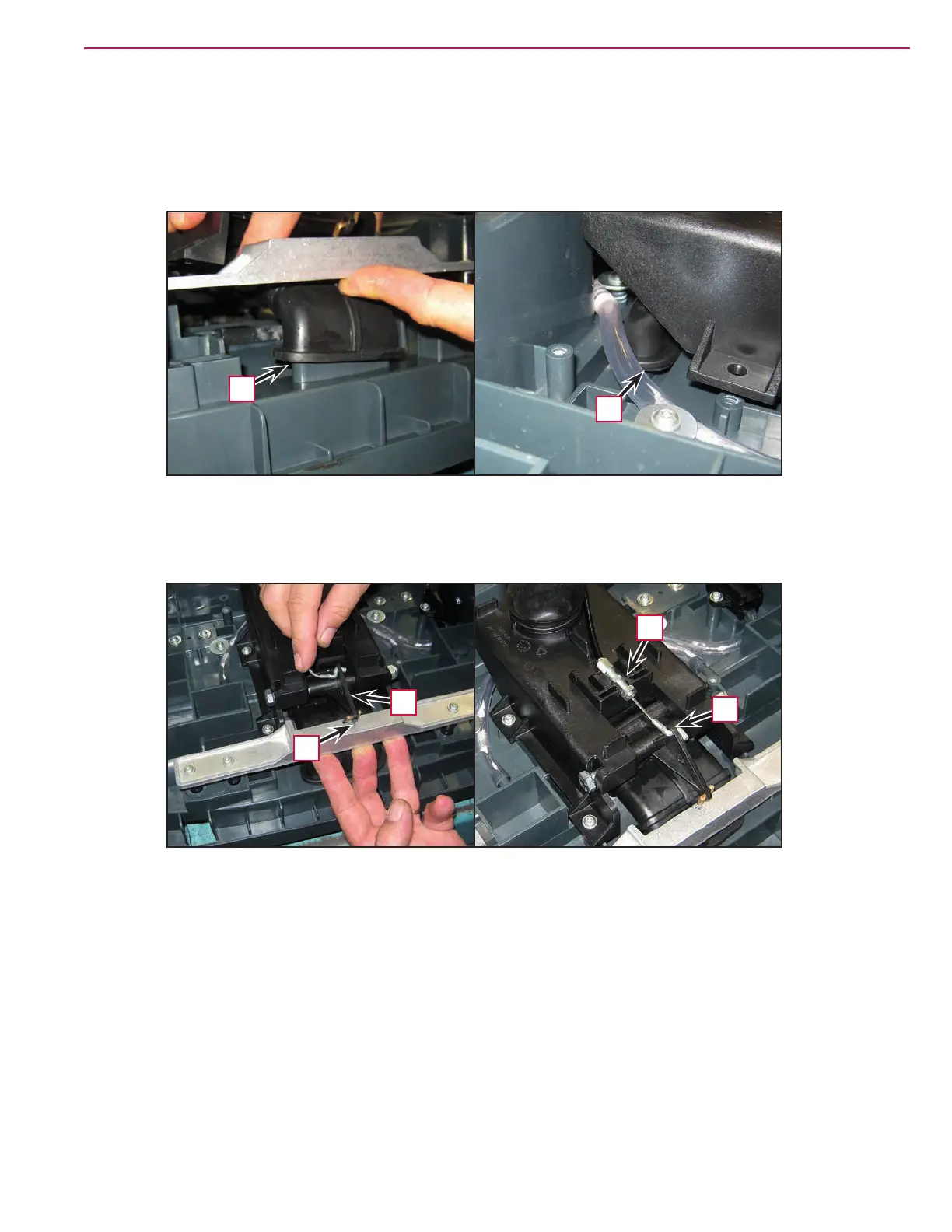

8. Install the vacuum duct, making sure that the front (I) and rear openings (J) are correctly installed on
the chassis.
Figure 8
J
I
9. Fasten the front bar hook (K) to the squeegee lifting linkage (L), then t the lifting cable (M),
reinstalling the closing nut and locknut (N).
Figure 9
M
N
K
L
To Next Page
