3 INSTALLATION
This section describes the installation and configuration of the Multidisplay as well
as setting the parameters for an installation with a Gyropilot 2 processor. Refer to
the Gyropilot 2 manual for the full pilot installation (drive unit, processor, rudder
feed-back…).
3.1 PACKING LIST

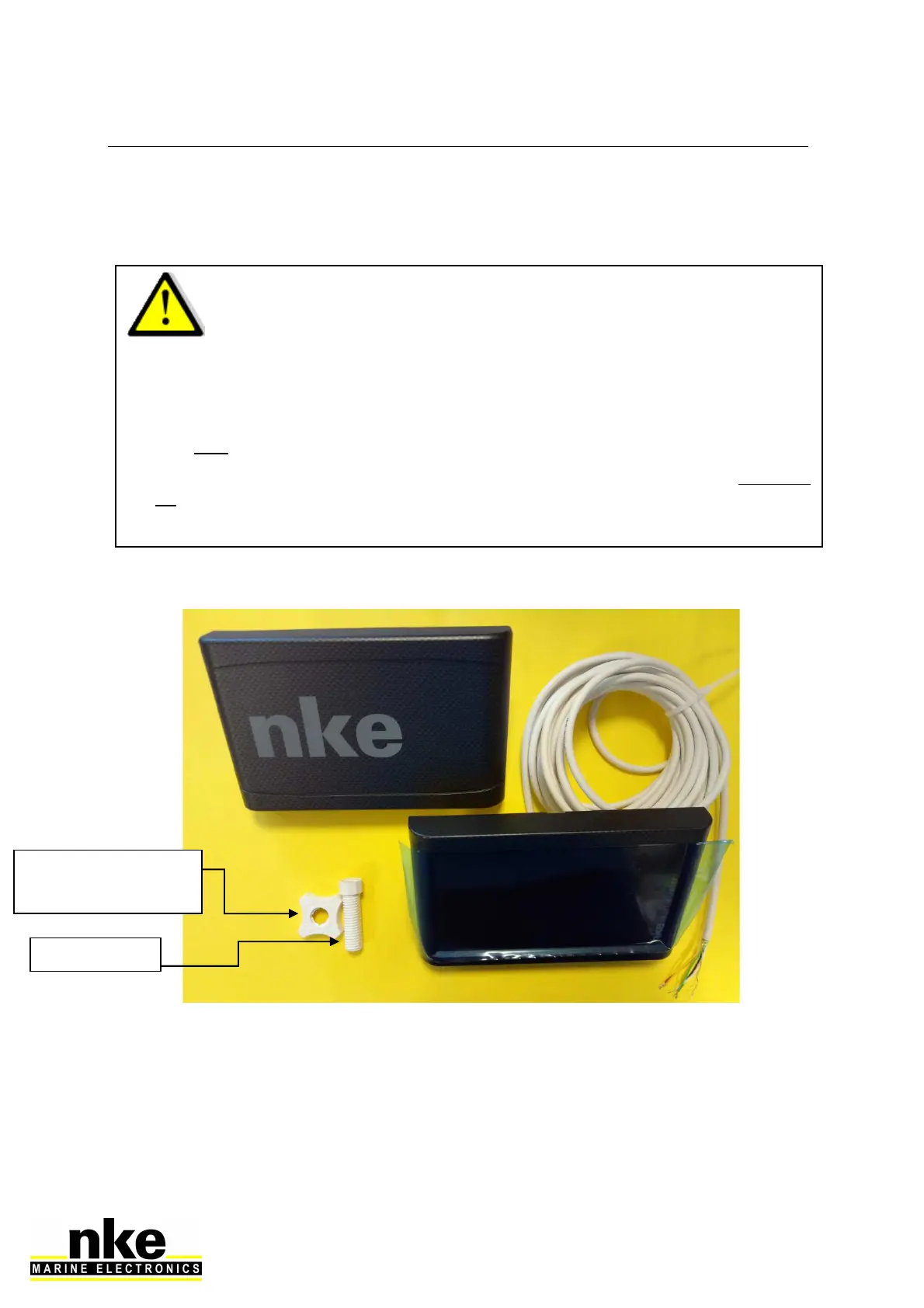

- A Multidisplay with 6m cable, featuring TOPLINE bus and an NMEA port.
- A sun cover
- Fixamo M14
- A blocking knurled nut M14
Warning:
- Please take time to read this manual carefully before you start installation
- Any connection to the TOPLINE bus must be performed through the specific
interface box
#
90-60-417 (featuring an NMEA port)
- Use only with the TOPLINE bus cable
#
20-61-001.
- All Topline bus connections must be performed while the system is powered
off.
A blocking knurled
nut M14
