Page 49/55 68_Afficheur_Multidisplay_um_UK_11
Installation of the Multidisplay :
- Clean the fixing surface with alcohol
- Put the cable through the ∅18 drill
- Remove the protection layer at the back of the Multidisplay
- Place the display and fasten M3 screws with a lock washer and a wide flat
washer.
- Tighten firmly
- To tighten the display you can use the fixamo and the blocking knurled nut.
Warning: do not tighten excessively.
- Make sure the display can’t move by hand once tightened.

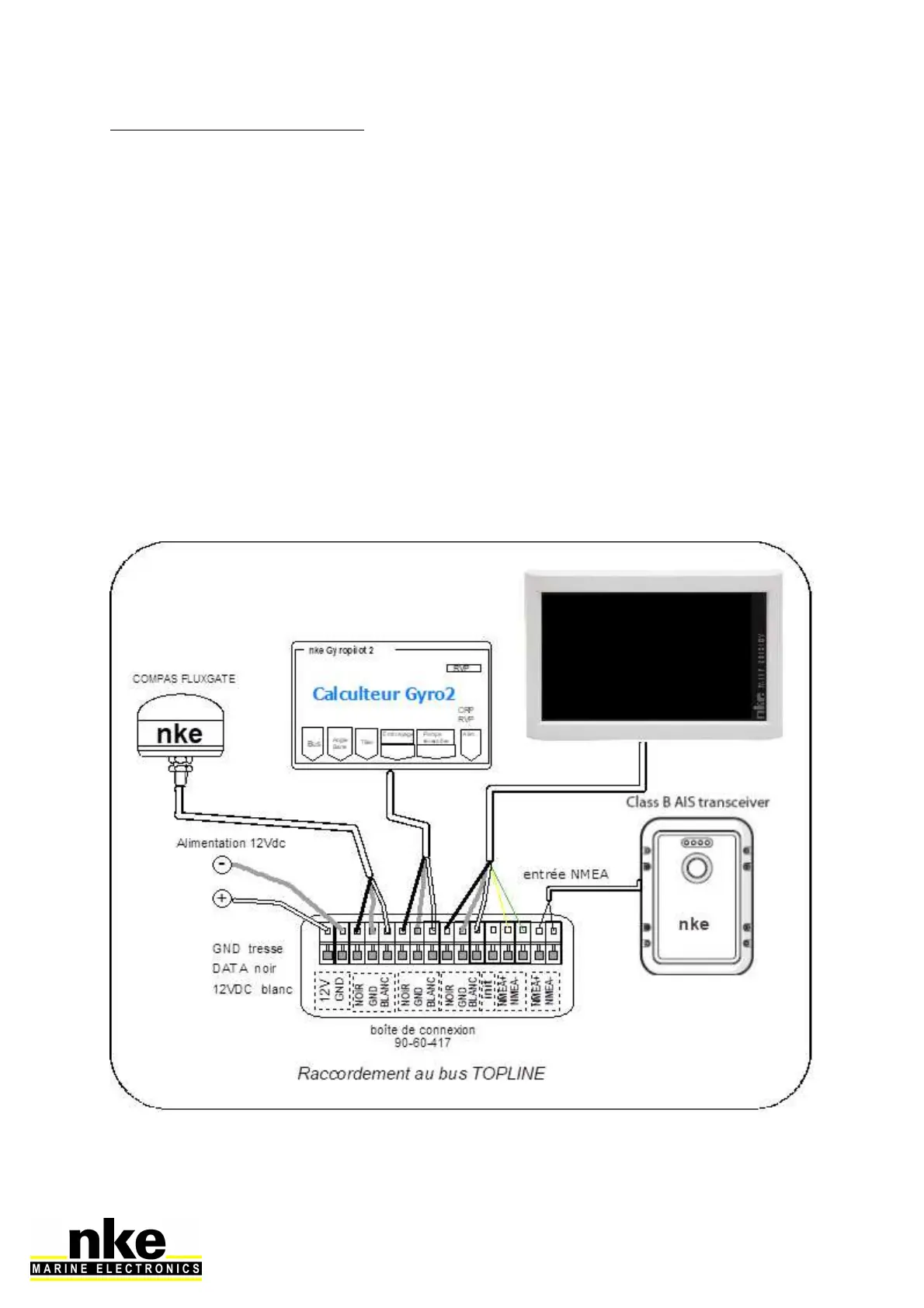

3.6 CONNECTION TO THE TOPLINE BUS AND NMEA
1. Run the bus cable from the Multidisplay to the TOPLINE junction of your system.
2. Connect the cable in the junction box.
Should you want to cut the bus cable to length, uncover and tin the wires before
connecting them.
