Revision 2

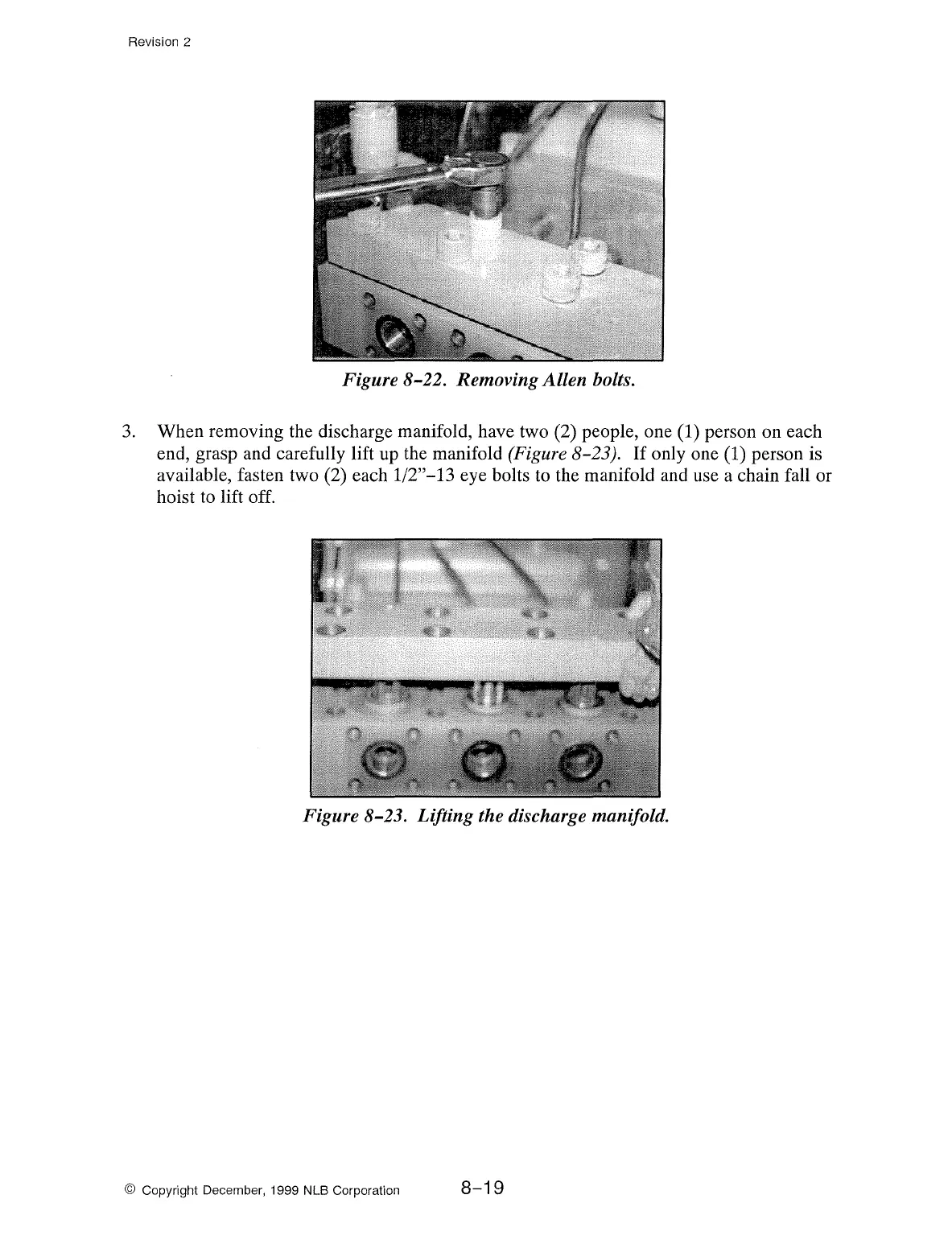

Figure 8-22. Removing Allen bolts.
3.
When removing the discharge manifold, have two (2) people, one (1) person on each
end, grasp and carefully lift up the manifold
(Figure 8-23).
If
only one (1) person is
available, fasten two (2) each
1/2"
-13
eye bolts
to
the manifold and use a chain fall or
hoist
to
lift off.
Figure 8-23. Lifting the discharge manifold.
© Copyright December, 1999 NLB Corporation
8-1
