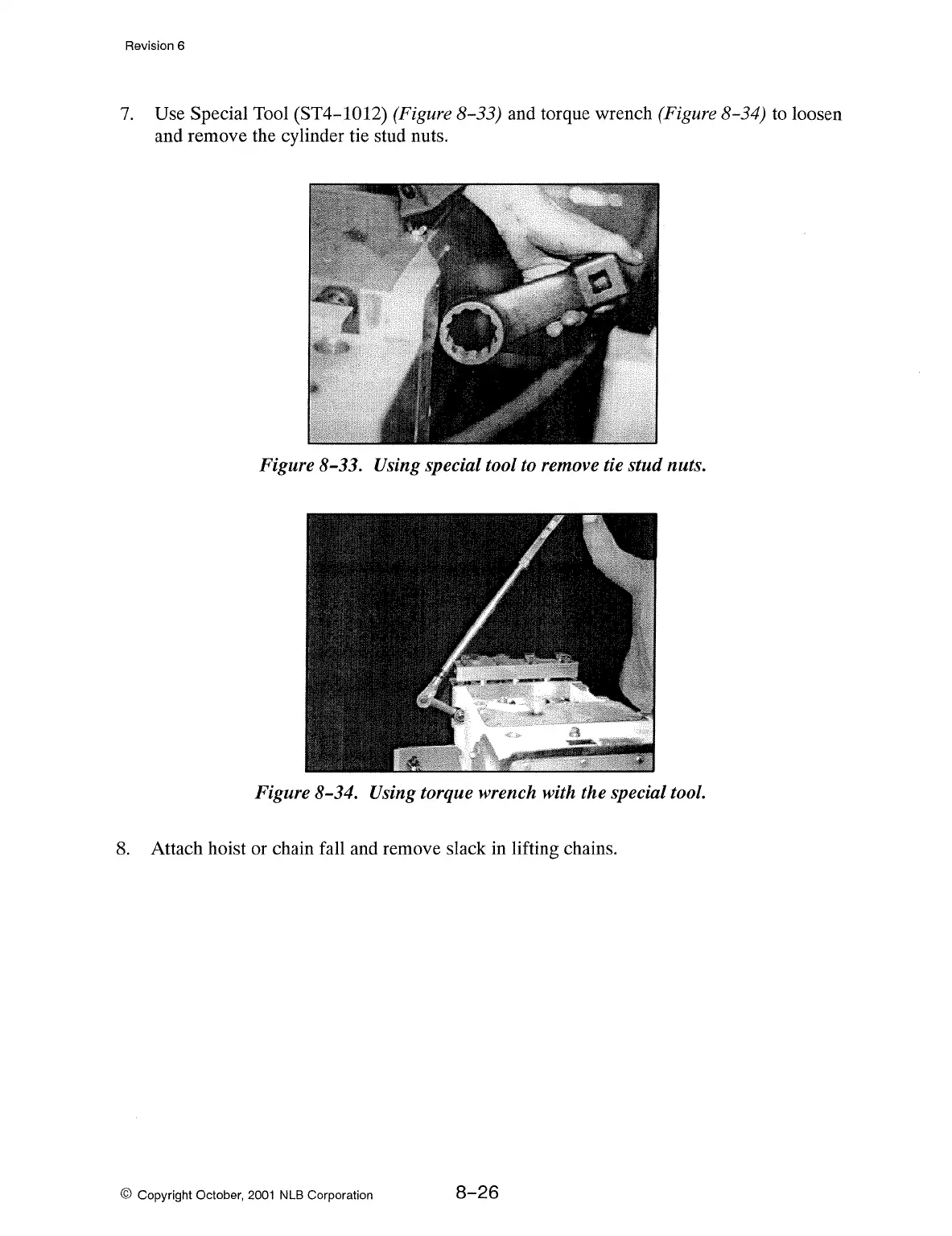

7. Use Special Tool (ST4-1012) (Figure 8-33) and torque wrench (Figure 8-34) to loosen
and remove the cylinder tie stud nuts.
Figure 8-33. Using special tool to remove tie stud nuts.
Figure 8-34. Using torque wrench with the special tool.
8. Attach hoist or chain fall and remove slack in lifting chains.
