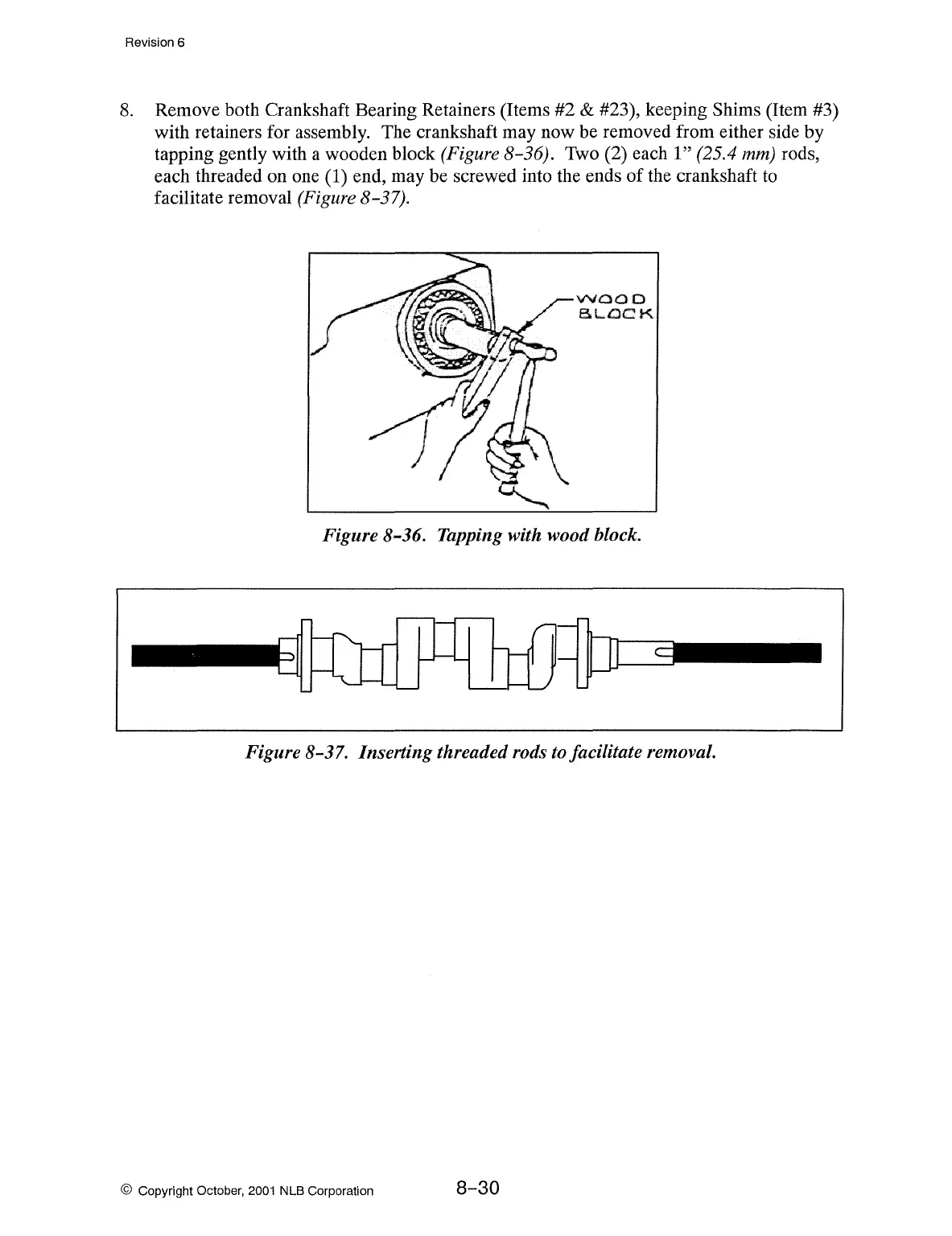

Remove both Crankshaft Bearing Retainers (Items
#2
& #23), keeping Shims (Item #3)
with retainers for assembly. The crankshaft may now be removed from either side by
tapping gently with a wooden block
(Figure 8-36). Two (2) each
l"
(25.4
mm)
rods,
each threaded on one (1) end, may be screwed into the ends of the crankshaft to
facilitate removal
(Figure 8-37).
V'\1000
13.LOC.
K
Figure 8-36. Tapping with wood block.
Figure 8-37. Inserting threaded rods to facilitate removal.
