Revision 6
14. Install a new
0-ring
(Item #12) and Backup Ring (Item #14) on the Pin (Item #2). Coat
with oil or grease (Figure 8-63).

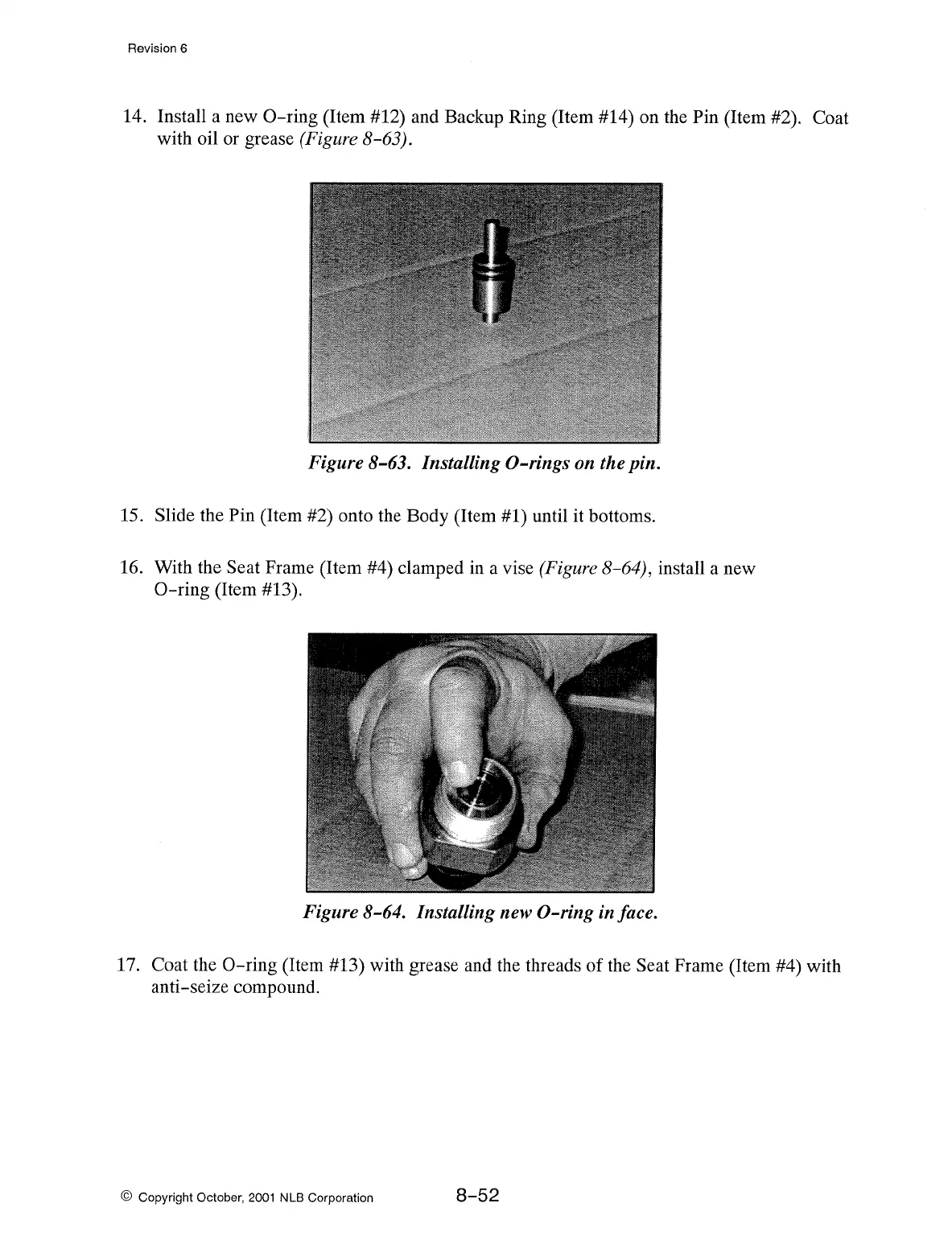

Figure 8-63. Installing
0-rings
on the pin.
15. Slide the Pin (Item #2) onto the Body (Item #1) until it bottoms.
16. With the Seat Frame (Item #4) clamped
in
a vise (Figure 8-64), install a new
0-ring
(Item #13).
Figure 8-64. Installing new
0-ring
in face.
17. Coat the
0-ring
(Item #13) with grease and the threads
of
the Seat Frame (Item #4) with
anti-seize compound.
© Copyright October,
2001
NLB Corporation
8-52
