Revision 6
6.
Carefully grasp the nose
of
the Pin (Item #2) with pliers and pull it from the Body (Item
#1)
(Figure 8-74). Catch the oil that drains from two (2) cavities in the body.

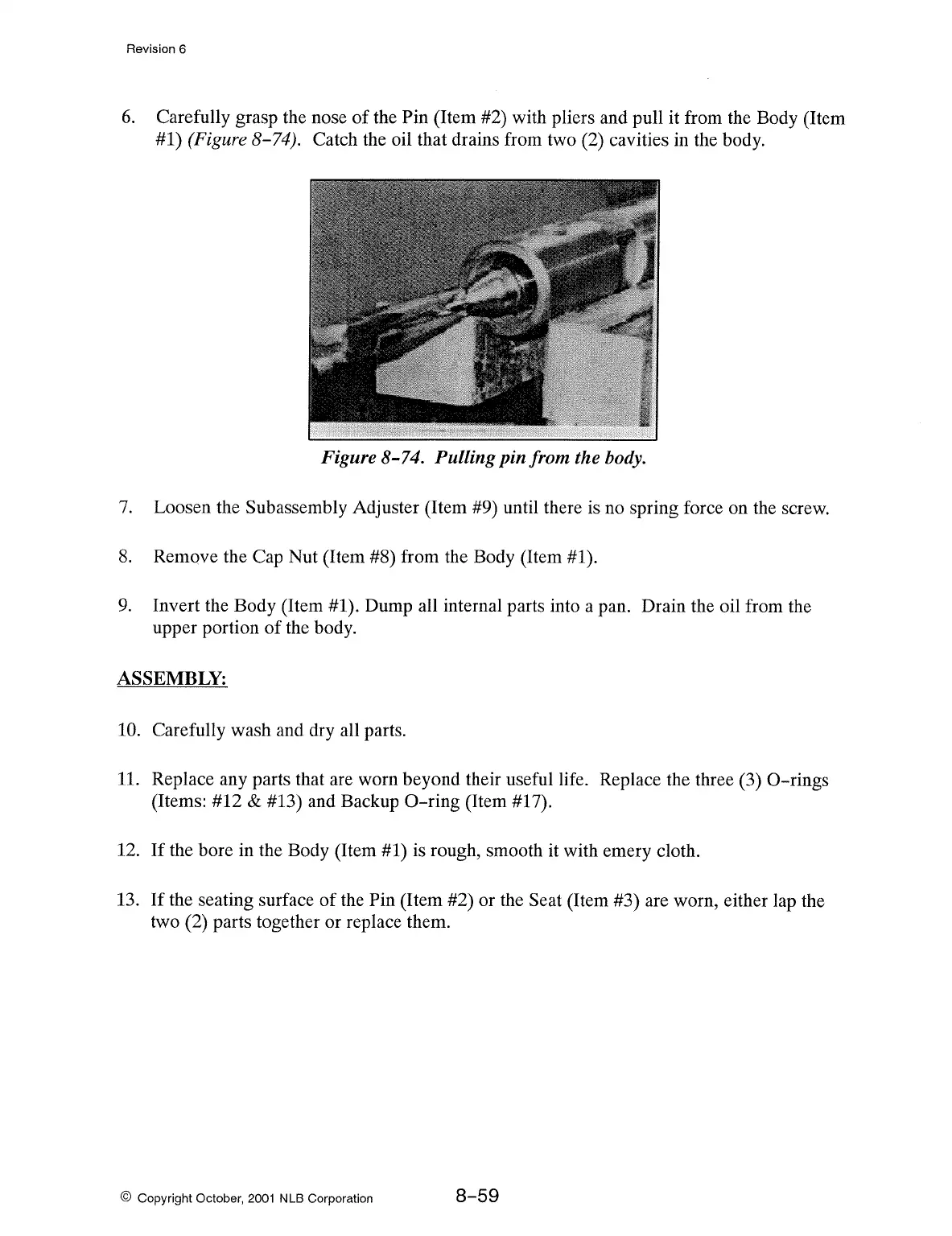

Figure 8-74. Pulling pin from the
body.
7.
Loosen the Subassembly Adjuster (Item #9) until there is no spring force on the screw.
8.
Remove the Cap Nut (Item #8) from the Body (Item #1 ).
9.
Invert the Body (Item #1). Dump all internal parts into a pan. Drain the oil from the
upper portion
of
the body.
ASSEMBLY:
10.
Carefully wash and dry all parts.
11.
Replace any parts that are worn beyond their useful life. Replace the three (3)
0-rings
(Items: #12 & #13) and Backup
0-ring
(Item #17).
12.
If
the bore in the Body (Item #1) is rough, smooth it with emery cloth.
13.
If
the seating surface
of
the Pin (Item #2) or the Seat (Item #3) are worn, either lap the
two (2) parts together or replace them.
© Copyright October,
2001
NLB Corporation
8-59
