14. Install a new
0-ring
(Item #12) and Backup Ring (Item #17) on the Pin (Item #2). Coat
with oil or grease (Figure 8-75).

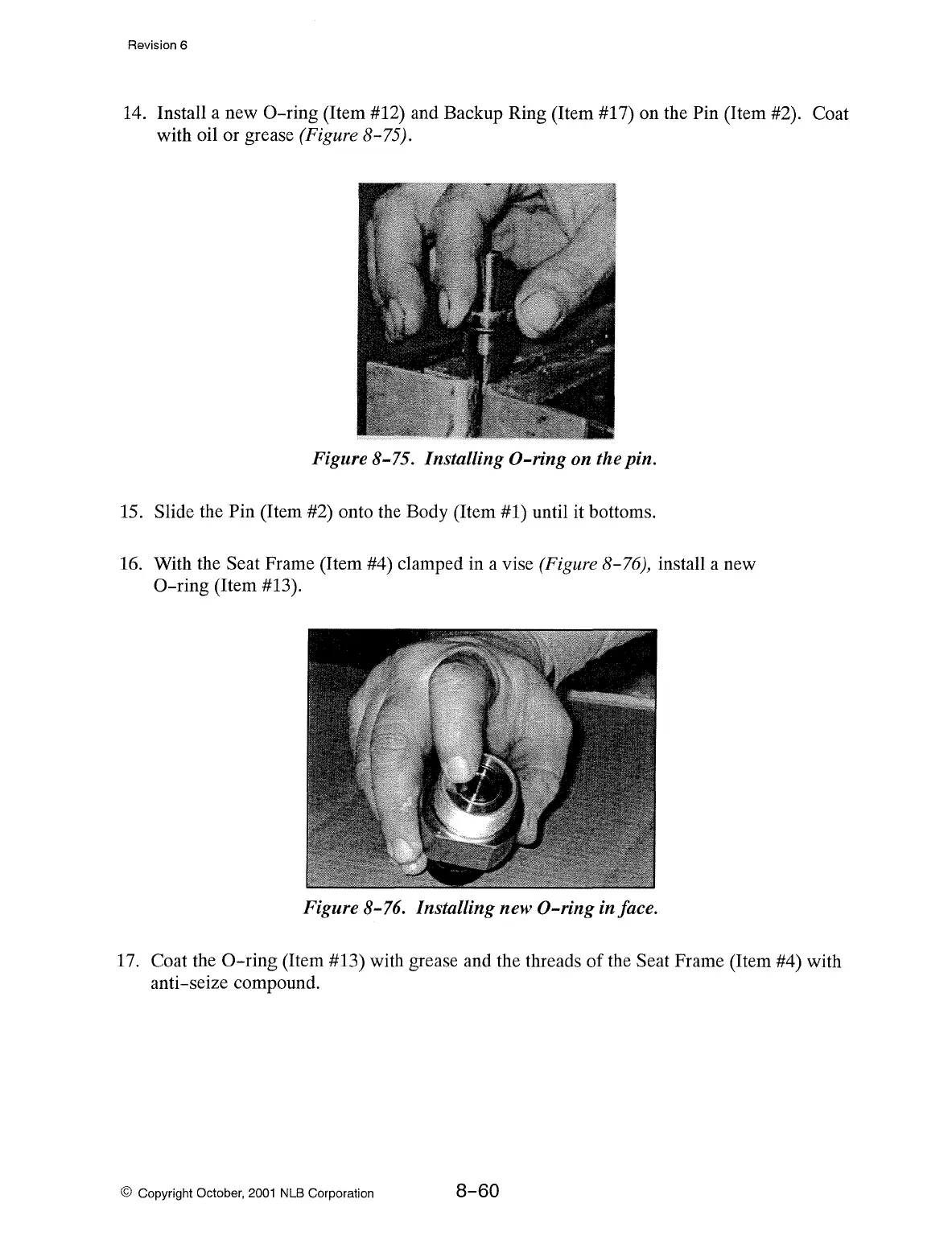

Figure 8-75. Installing
0-ring
on the pin.
15. Slide the Pin (Item #2) onto the Body (Item #1) until it bottoms.
16.
With the Seat Frame (Item #4) clamped in a vise (Figure 8-76), install a new
0-ring
(Item #13).
Figure 8-76. Installing new
0-ring
in face.
17.
Coat the
0-ring
(Item #13) with grease and the threads of the Seat Frame (Item #4) with
anti-seize compound.
