Revision 6
\
RETAINING
CLIP
\ \
EXPLODED
SEAL ASSEMBLY
\
~
-1-bJ-~~~-
@IE::
PISTON
SHOWN
FOR
REFERENCE ONLY
--+-H-1
~::e:J-
-
--
--
-j-

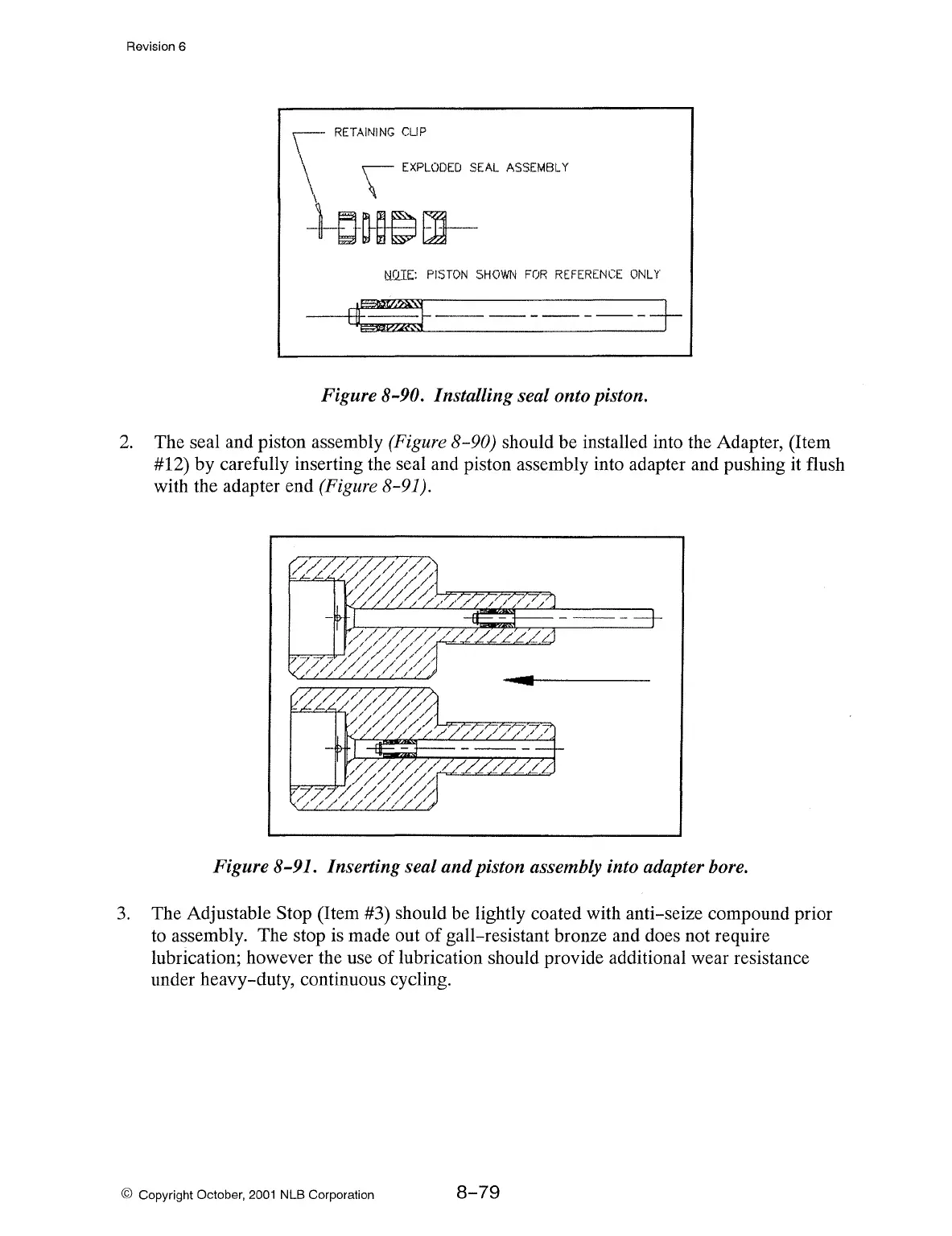

Figure 8-90. Installing seal onto piston.
2.
The seal and piston assembly (Figure 8-90) should be installed into the Adapter, (Item
#12) by carefully inserting the seal and piston assembly into adapter and pushing it flush
with the adapter end (Figure 8-91).
Figure 8-91. Inserting seal and piston assembly into adapter bore.
3.
The Adjustable Stop (Item #3) should be lightly coated with anti-seize compound prior
to
assembly. The stop
is
made out
of
gall-resistant bronze and does not require
lubrication; however the use of lubrication should provide additional wear resistance
under heavy-duty, continuous cycling.
© Copyright October, 2001
NLB
Corporation
8-79
