Service Tools

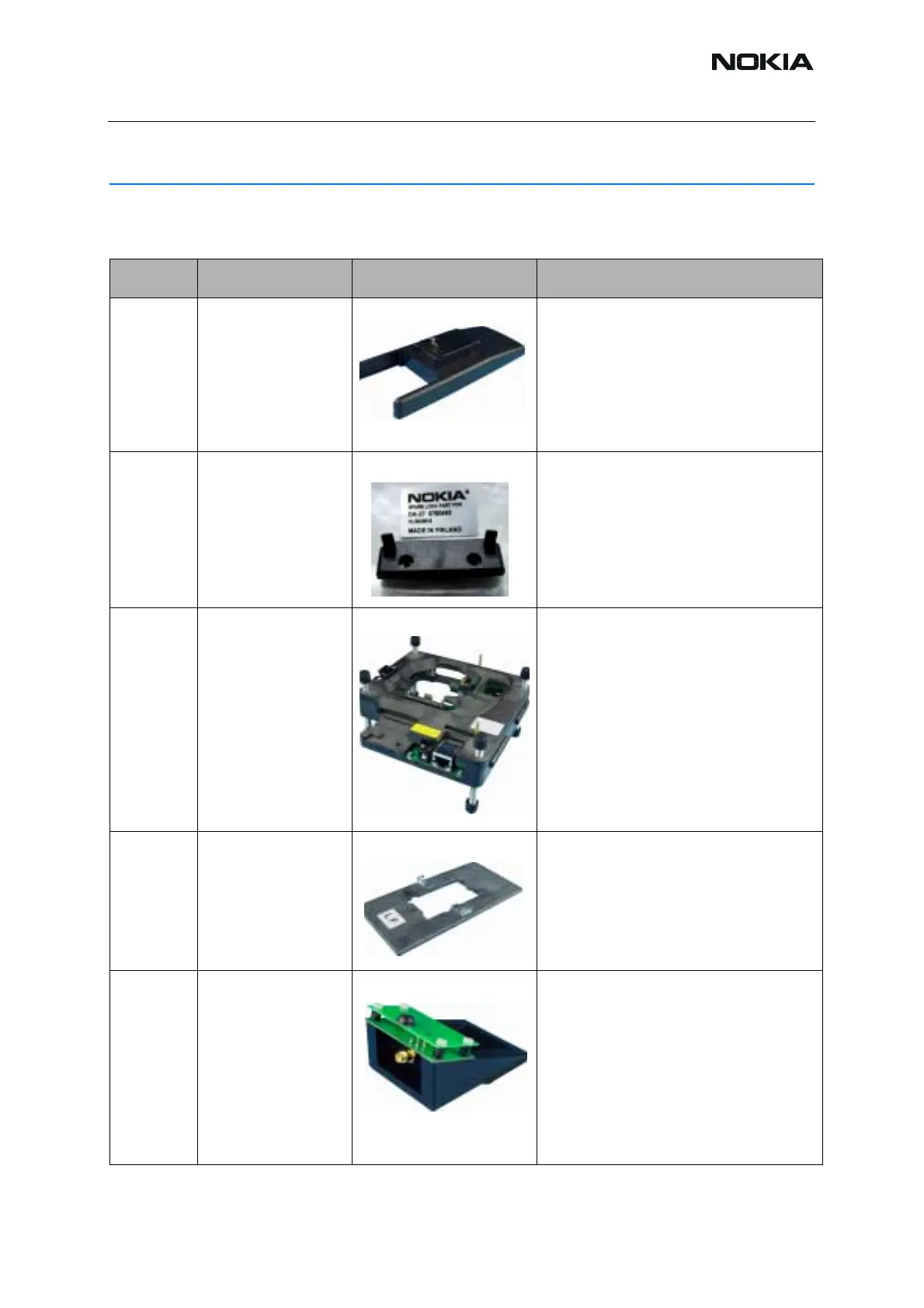

■ Custom Service Tools
Product Service Tool Photo Description Info
DA-27 Docking Station
Adapter
The Docking Station Adapter,
together with a Docking Station, is
used for analysis of Mbus, Fbus,
RF, and audio connections.
Pack of test 10 test pins to be used
with SF-33 and DA-27.
Spare lock part
for DA-27
Spare lock part for DA-27
MJ-36 Module Jig This jig allows phone PWB-level
service and troubleshooting. Com-
ponents must be protected against
over-voltage and over-current.
RJ-39 Soldering Jig Used for soldering and as a rework
jig for system module.
SA-45 RF Coupler Enables RF connection with DA-27.
Note! Do not use for RF-tuning.
