Nokia 2650 - Domesheet Exchange Instructions

RH-53/54
Nokia Customer Care 6-Disassembly and Assembly Instructions
12 COMPANY CONFIDENTIAL Issue 2 06/2005
Copyright © 2005 Nokia. All Rights Reserved.

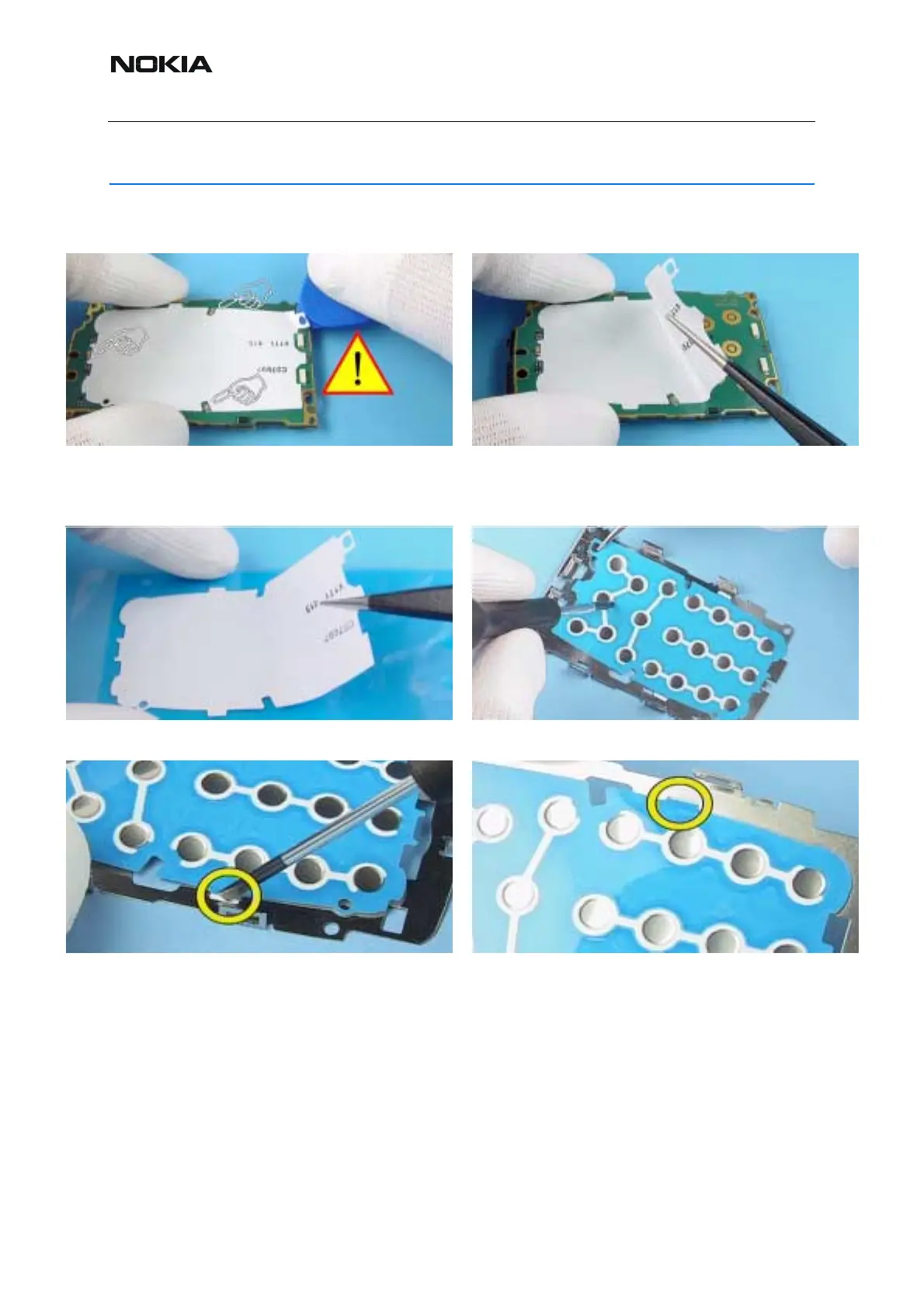

Domesheet Exchange instructions
1.) Take care not to damage the LED’s when exchanging
the Domesheet. Start with SRT-6 as shown in the pic-
ture.
2.) Tweezers can be used to remove the defective
Domesheet.
3.) Take the new Domesheet with tweezers. 4.) Place the Domesheet in the Key Dome Shield.
5.) Place the Dome Sheet straps into the slot of the Key
Dome Shield.
6.) Same procedure on the opposite side.
