RH-53/54
Nokia Customer Care
6 COMPANY CONFIDENTIAL Issue 2 06/2005
Copyright © 2005 Nokia. All Rights Reserved.

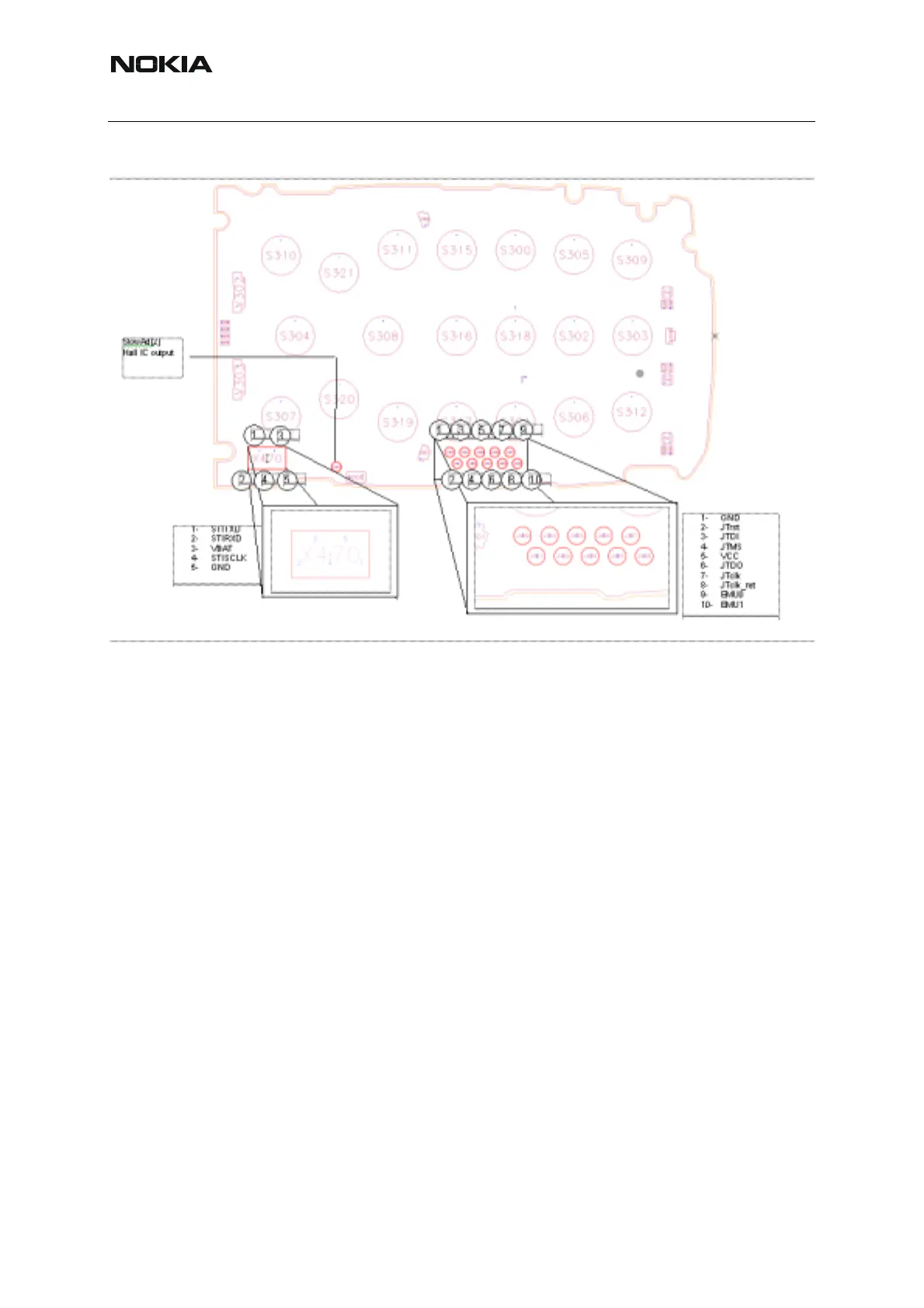

Figure 2:BB test points 2
■ Troubleshooting diagrams
INOTE : Since both D200 (UEM) and D400(UPP) are underfilled, they can not be replaced. If
either D200 or D400 is defective, the whole PWB has to be discarded.
To Next Page
