RF Functional Descriptions
■ RF block diagram
Block diagrams of direct conversion receiver and transmitter RF section has described in the
following figure.
The architecture is based on Mjoelner, the RF ASIC, which contains most of the functionality of
the RF Engine. The ASIC contains RX and TX functions, VCXO (crystal is placed external to
the ASIC), se the block diagram.

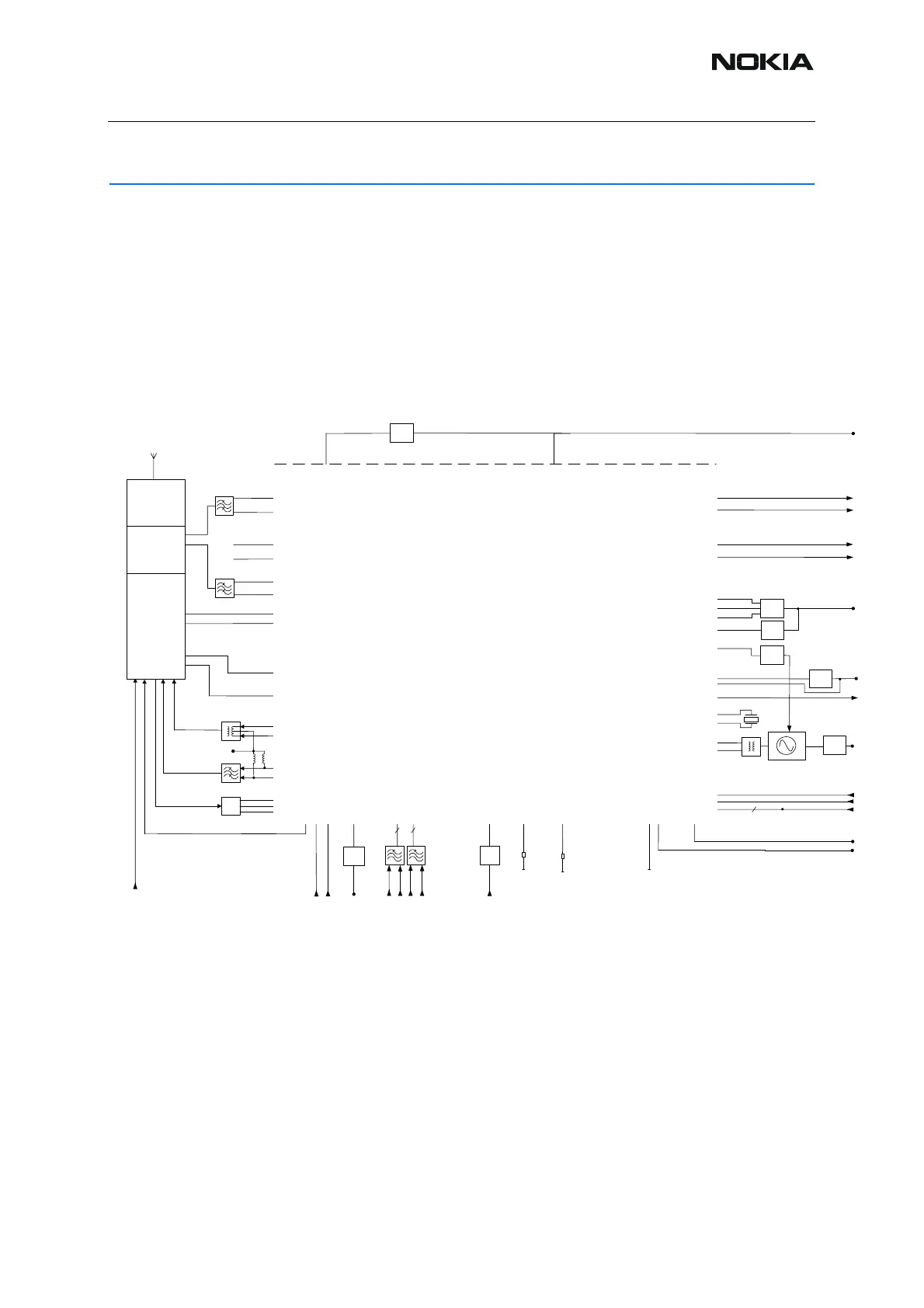

Figure 13:RF block diagram
■ Frequency synthesizers
VCXO
The VCXO is an on-chip oscillator with off-chip crystal with a frequency of 26 MHz.
VCO
The VCO used is a quad band which covers the neaded frequency range for both 900/1800
and 850/1900.
