Nokia E62 Service Manual

• Set Rx/Tx channel to 190 on GSM850, 37 on GSM900 band or 700 on GSM1800 band or 661 on GSM1900
(Defaults).
• Set Edge to “Off” (Default). (Not active in RXmode).
• Set Tx PA mode to “Free” (Default). (Not active in RXmode).
• Apply 942.46771 MHz (channel 37 + 67.710 kHz offset), 881.66771MHz (channel 190 + 67.710 kHz),
1842.86771 MHz (channel 700 + 67.710 kHz offset) or 1960.06771 MHz (channel 661 + 67.71 kHz) –
90 dBm signal to the RF-connector (remember to compensate for cable attenuation).

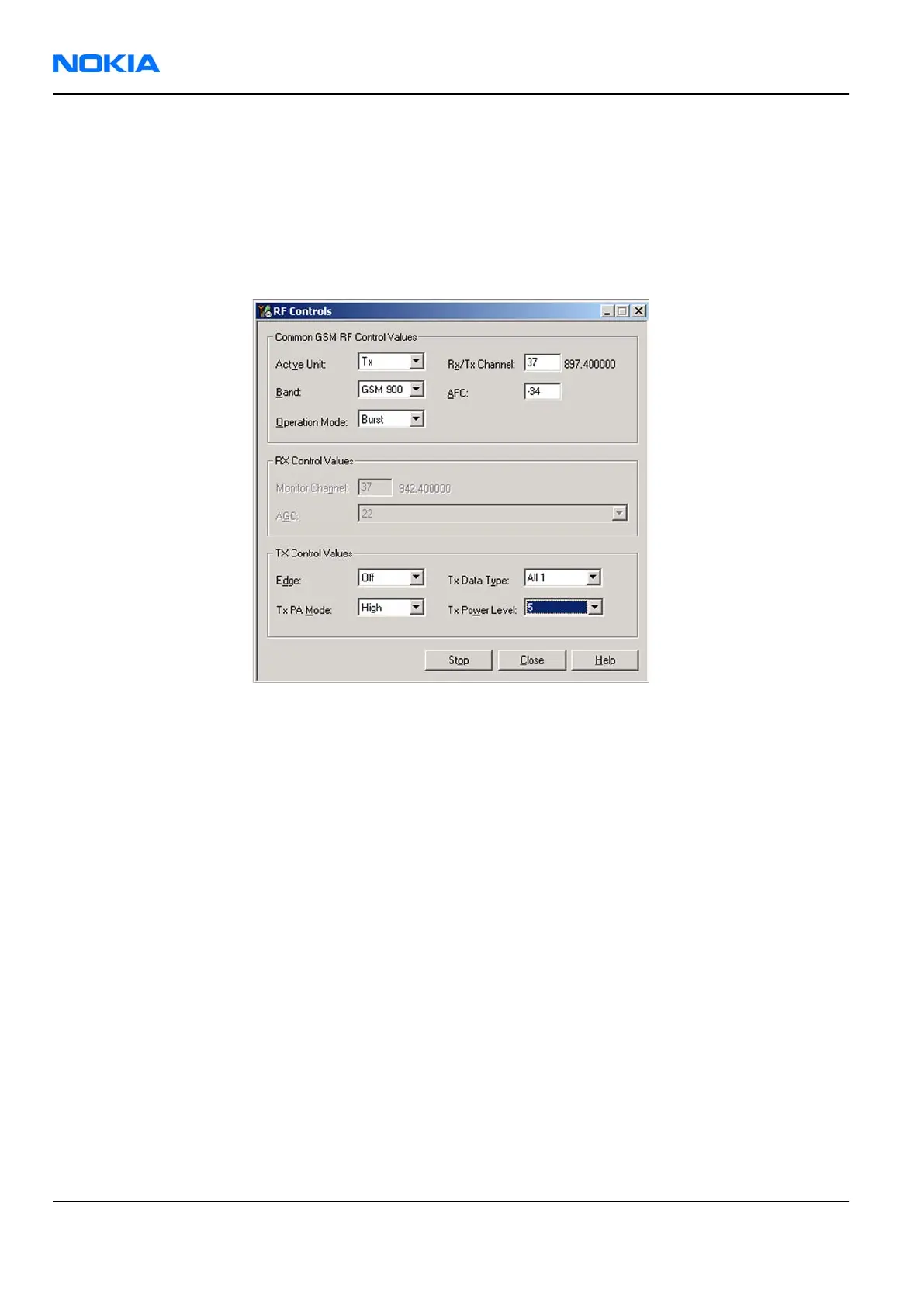

Figure 46 RF Controls window
GSM Rx chain activation for manual measurements / GSM RSSI measurement
Context
RSSI signal measurement is the main Rx troubleshooting measurement. The test measures the strength of
the received signal.
Steps
1. Start
Phoenix service software.
2. Choose Testing→GSM→RSSI Reading .
3. Set the RF signal generator for channel frequency +67.771 kHz CW mode with –80 dBm signal.
Alternatively set the cellular tester downlink channel to the appropriate channel. Make sure that the tester
is set to continuous mode, not to burst mode.
RM-88
Nokia Customer Care RF Troubleshooting and Manual Tuning Guide
Page 7 –10 COMPANY CONFIDENTIAL Issue 1
Copyright © 2006 Nokia. All rights reserved.

Nokia E62 Specifications

General

Panel type	LCD
Display resolution	320 x 240 pixels
Display number of colors	16.78 million colors
Ringer type	Polyphonic
Processor frequency	0.235 GHz
Internal memory	80 MB
Compatible memory cards	miniSD
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Bundled software	S 60 UI
Form factor	Bar
Product color	Silver, White
Talk time (2G)	5.5 h
Battery capacity	1500 mAh
Standby time (2G)	330 h
2G standards	EDGE, GPRS
Keyboard layout	QWERTY
Personal info management (PIM)	Alarm clock, Calculator, Calendar, Notes

Weight and Dimensions

Depth	14 mm
Width	69.7 mm
Height	177 mm
Weight	144 g
