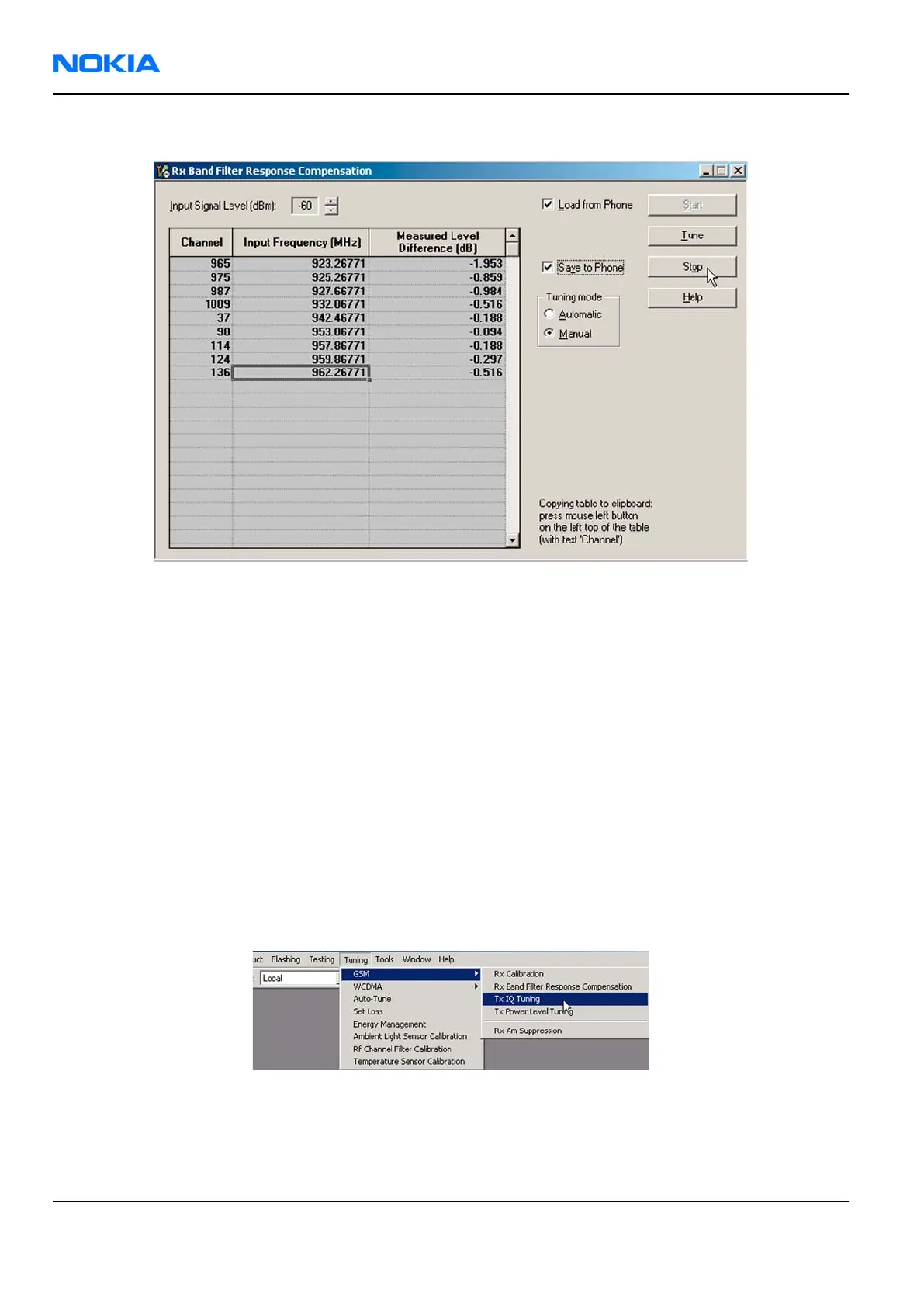

11. Check the "Save to Phone" check box and click Stop if the values are within the limits.
Next actions
Repeat the steps 4 to 10 for GSM850, GSM1800 and GSM1900.
GSM transmitter tunings
Tx IQ tuning (GSM)
Context
The Tx path branches to I and Q signals at RF I/Q modulator. Modulator and analog hardware located after
it cause unequal amplitude and phase disturbance to I and Q signal paths. Tx IQ tuning tuning balances the
I and Q branches.
Tx IQ tuning must be performed on all GSM bands. .
Steps
1. From the dropdown menus, set "Operating mode" to Local, "System mode" to GSM, and Band to GSM900.
2. From the Tuning menu, choose GSM -> Tx IQ Tuning.
3. Set Mode to Automatic and Edge to Off.
4. Click Start.
Wait until automatic tuning has finished and moved the sliders.
Values are written to the phone memory automatically.
RM-88
Nokia Customer Care RF Troubleshooting and Manual Tuning Guide
Page 7 –30 COMPANY CONFIDENTIAL Issue 1
Copyright © 2006 Nokia. All rights reserved.

Nokia E62 Specifications

General

Panel type	LCD
Display resolution	320 x 240 pixels
Display number of colors	16.78 million colors
Ringer type	Polyphonic
Processor frequency	0.235 GHz
Internal memory	80 MB
Compatible memory cards	miniSD
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Bundled software	S 60 UI
Form factor	Bar
Product color	Silver, White
Talk time (2G)	5.5 h
Battery capacity	1500 mAh
Standby time (2G)	330 h
2G standards	EDGE, GPRS
Keyboard layout	QWERTY
Personal info management (PIM)	Alarm clock, Calculator, Calendar, Notes

Weight and Dimensions

Depth	14 mm
Width	69.7 mm
Height	177 mm
Weight	144 g
