RF testing and BB testing/tuning

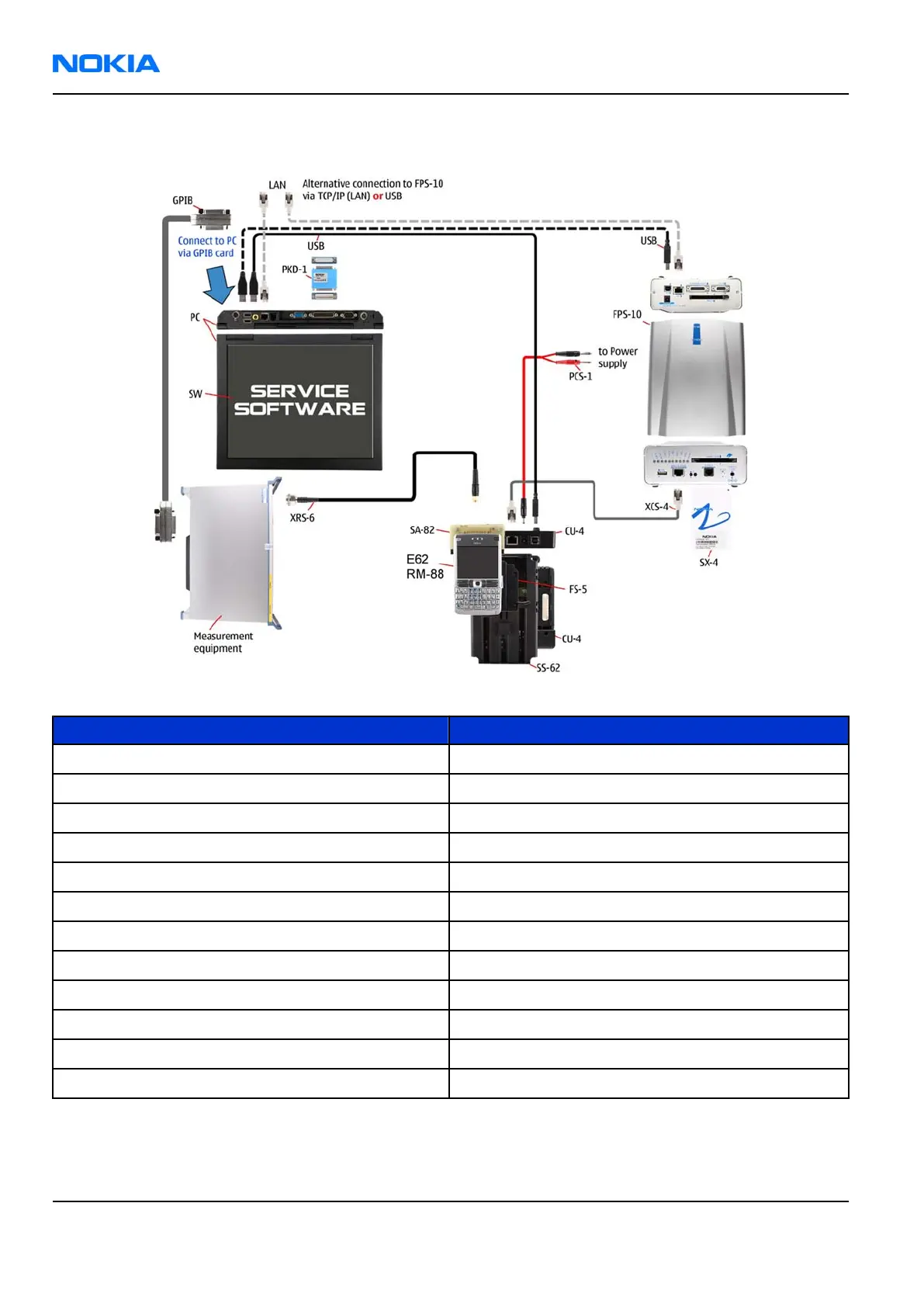

Figure 33 RF testing concept and BB testing/tuning
Type Description
SS-62/FS-5 Flash adapter
CU-4 Control unit
SA-82 RF coupler
PCS-1 Power cable
XCS-4 Modular cable
Standard USB cable
Standard USB cable + smart card reader
SX-4 Smart card
GPIB control cable
XRS-6 RF cable
PKD-1 SW security device
RF shield box
RM-88
