Nokia E62 Service Manual

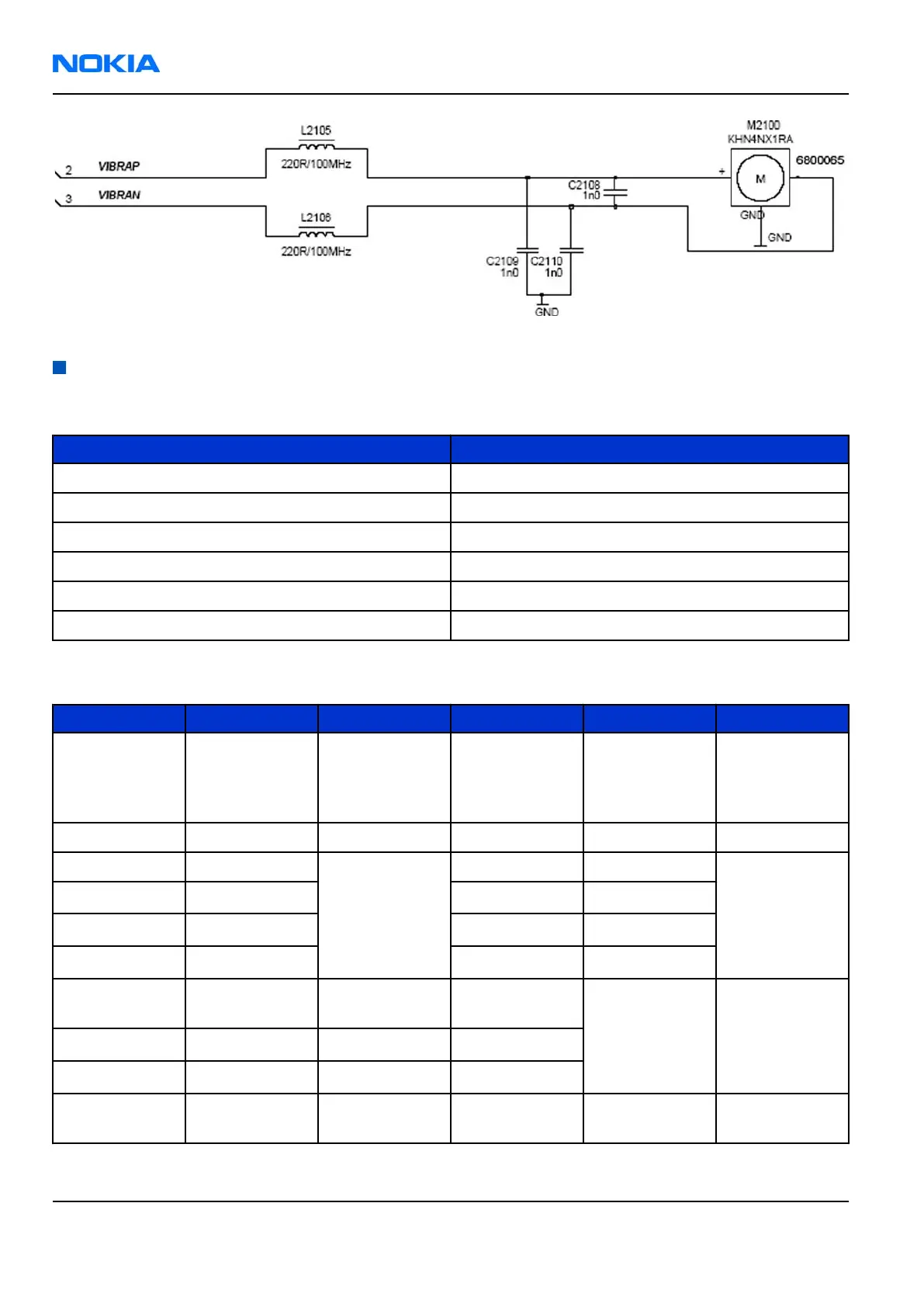

Figure 63 Vibra circuitry
Baseband technical specifications
External interfaces
Name of Connection Connector reference
USB X2001
Charger X2000
Headset X2002
SIM X2700
MiniSD X5200
Battery connector X2070
USB IF electrical characteristics
Description Parameter Min Max Unit Notes
Absolute
maximum
voltage on D+
and D-
V
D+/D-
-1 4.6 V USB
specification
revision 2.0
Supply voltage VBUS 4.4 5.25 V
Supply current:
Functioning I
VBUS
100 mA
Suspended I
VBUS
500 uA
Unconfigured I
VBUS
100 mA
High-level
input voltage:
V
High (driven) V
IH
2
High (floating) V
IHZ
2.7 3.6
Low-level
input voltage
V
IL
0.8 V
RM-88
Nokia Customer Care System Module
Page 8 –20 COMPANY CONFIDENTIAL Issue 1
Copyright © 2006 Nokia. All rights reserved.

Nokia E62 Specifications

General

Panel type	LCD
Display resolution	320 x 240 pixels
Display number of colors	16.78 million colors
Ringer type	Polyphonic
Processor frequency	0.235 GHz
Internal memory	80 MB
Compatible memory cards	miniSD
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Bundled software	S 60 UI
Form factor	Bar
Product color	Silver, White
Talk time (2G)	5.5 h
Battery capacity	1500 mAh
Standby time (2G)	330 h
2G standards	EDGE, GPRS
Keyboard layout	QWERTY
Personal info management (PIM)	Alarm clock, Calculator, Calendar, Notes

Weight and Dimensions

Depth	14 mm
Width	69.7 mm
Height	177 mm
Weight	144 g
