Nokia E62 Service Manual

Internal earpiece
The internal earpiece is used in the HandPortable (HP) call mode. A dynamic 7x11 mm earpiece capsule is
connected to N2200 ASIC’s differential outputs EarP and EarN.

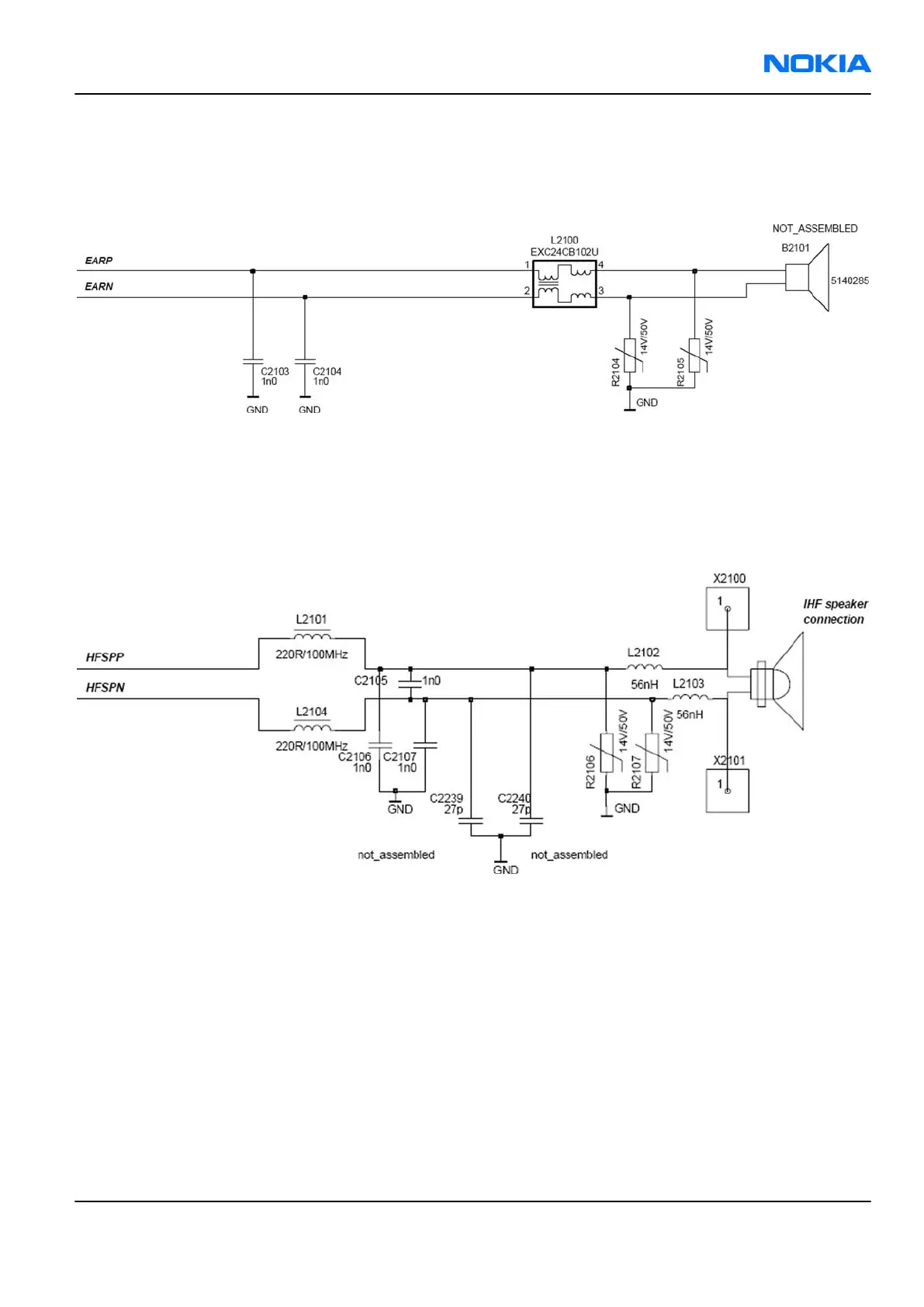

Figure 61 Internal earpiece circuitry
Internal speaker
The internal speaker is used in Internal HandsFree (IHF) call mode.
A dynamic 20 mm speaker is connected to N2200 ASIC’s outputs HFSpP and HFSpN.
The IHF amplifier integrated in EM ASIC N2200 is a Digital Pulse Modulated Amplifier (DPMA).
Figure 62 Internal speaker circuitry
Vibra circuitry
Vibra is used for vibra-alarm function.
The vibra motor is connected to the N2200 ASIC VibraP and VibraN Pulse Width Modulated (PWM) outputs.
RM-88
System Module Nokia Customer Care
Issue 1 COMPANY CONFIDENTIAL Page 8 –19
Copyright © 2006 Nokia. All rights reserved.

Nokia E62 Specifications

General

Panel type	LCD
Display resolution	320 x 240 pixels
Display number of colors	16.78 million colors
Ringer type	Polyphonic
Processor frequency	0.235 GHz
Internal memory	80 MB
Compatible memory cards	miniSD
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Bundled software	S 60 UI
Form factor	Bar
Product color	Silver, White
Talk time (2G)	5.5 h
Battery capacity	1500 mAh
Standby time (2G)	330 h
2G standards	EDGE, GPRS
Keyboard layout	QWERTY
Personal info management (PIM)	Alarm clock, Calculator, Calendar, Notes

Weight and Dimensions

Depth	14 mm
Width	69.7 mm
Height	177 mm
Weight	144 g
