Nokia E62 - Service Concept for RF Testing and RF;BB Tuning

Service concept for RF testing and RF/BB tuning

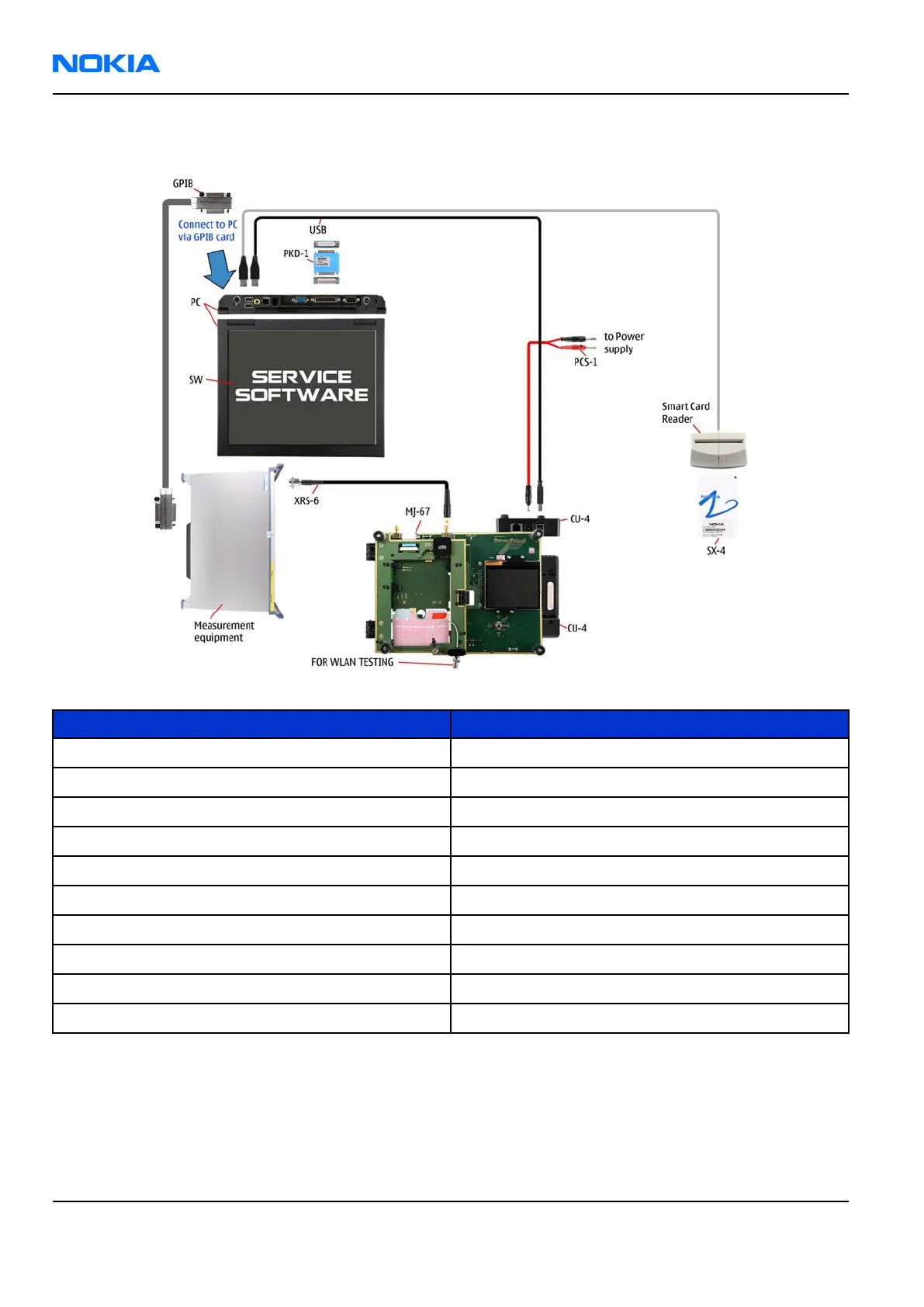

Figure 31 Service concept for RF testing and RF/BB tuning
Description Type
MJ-67 Module jig
CU-4 Control unit
Standard USB cable
PCS-1 DC power cable
Standard USB cable + smart card reader
SX-4 Smart card
XRS-6 RF cable
GPIB control cable
PKD-1 SW security device
RF shield box
RM-88
