TX 1800/1900 troubleshooting

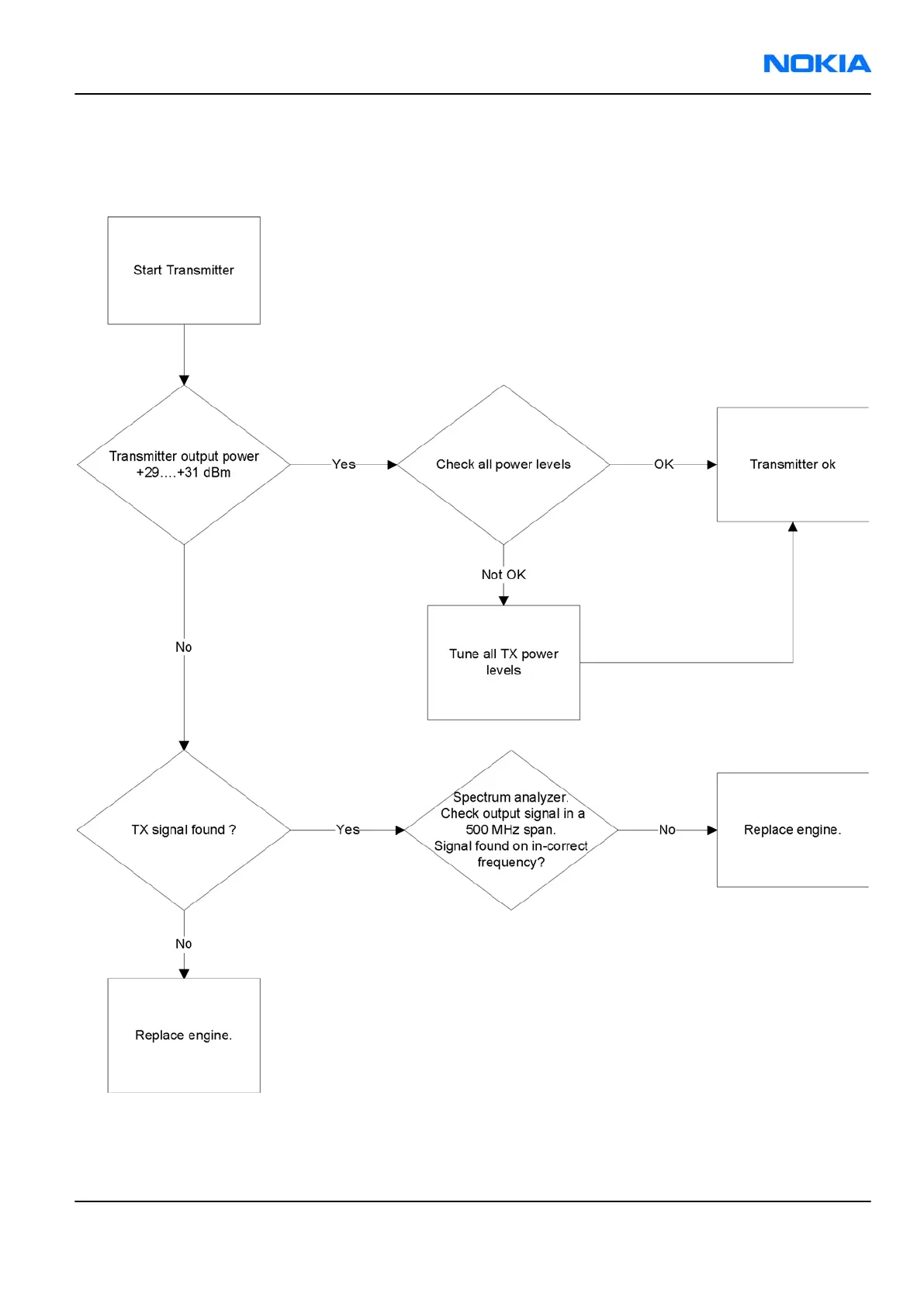

Troubleshooting flow
Checking antenna functionality
The main antenna has one antenna: GSM .
In the GSM antenna, there is one Feed and two GND contacts.
RM-88
RF Troubleshooting and Manual Tuning Guide Nokia Customer Care
Issue 1 COMPANY CONFIDENTIAL Page 7 –15
Copyright © 2006 Nokia. All rights reserved.
