Power distribution

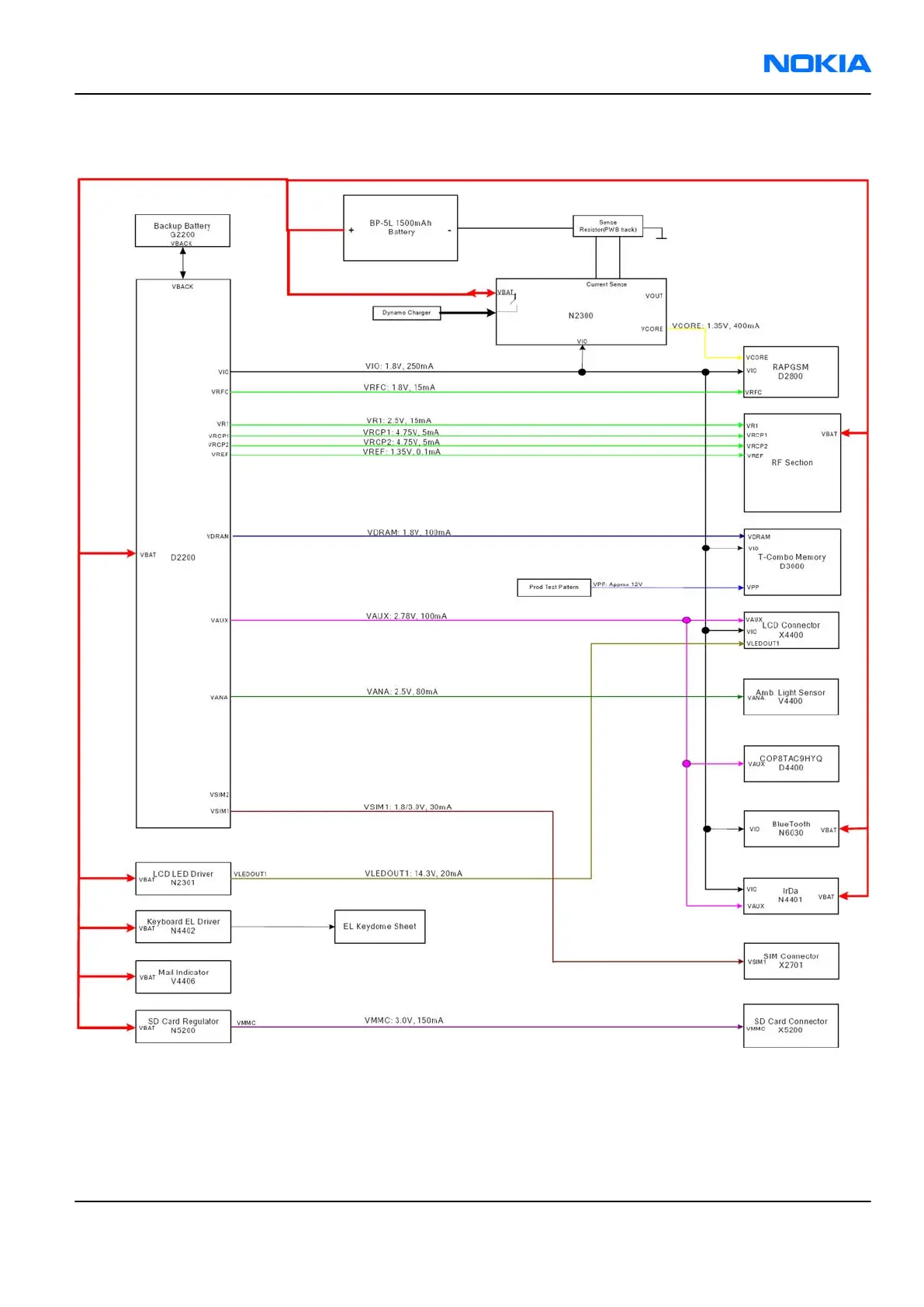

Figure 53 Power distribution diagram
System power-up
Power up procedure starts when the user presses power key (option 1) or when (not empty) battery is
attached (option 2). In addition, some other triggers may start the system.
RM-88
System Module Nokia Customer Care
Issue 1 COMPANY CONFIDENTIAL Page 8 –9
Copyright © 2006 Nokia. All rights reserved.
