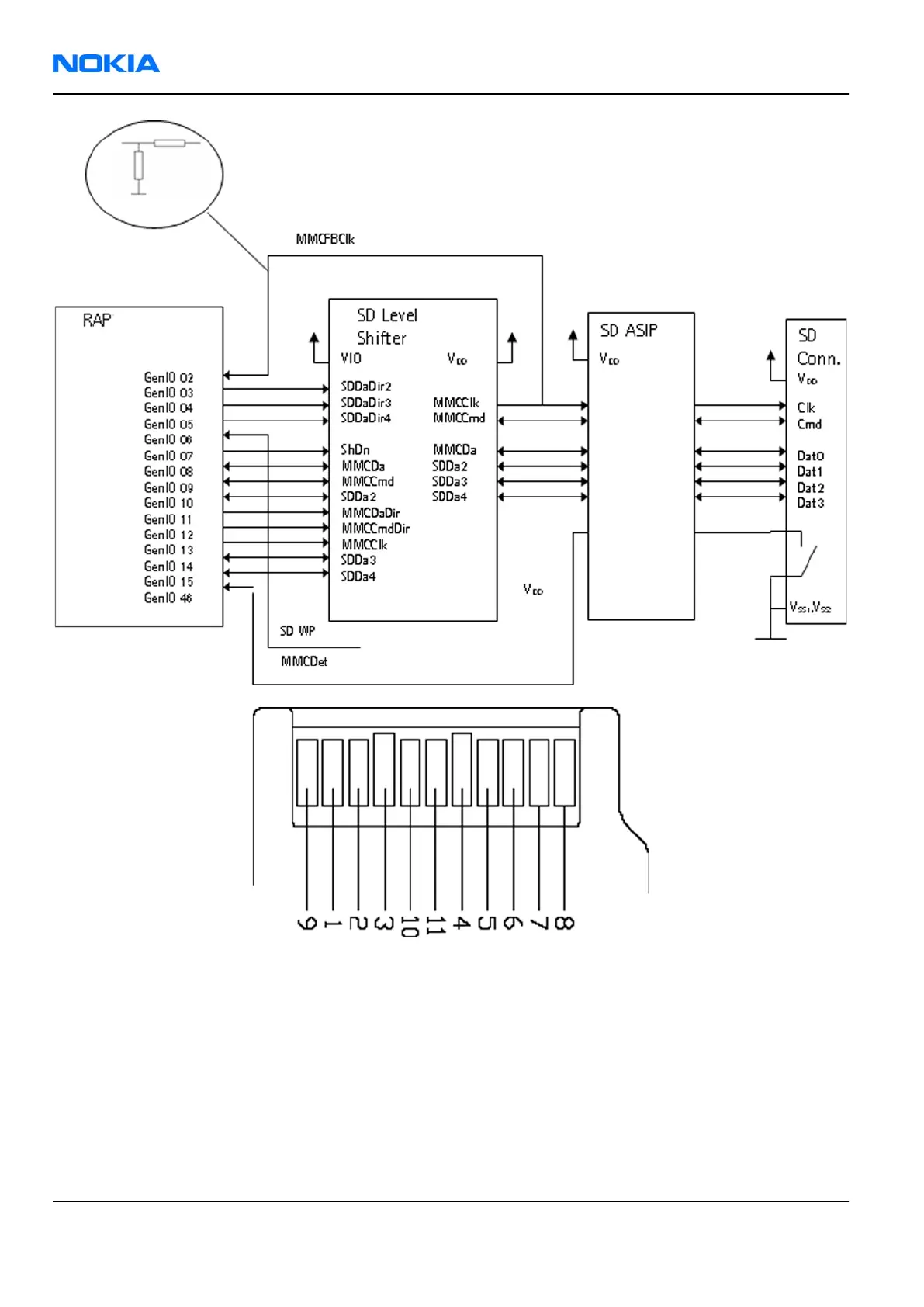

Figure 55 MiniSD contact area & pin order
Battery interface
The battery interface supports a 3-pole battery interface. The interface consists of three connectors: VBAT,
BSI and GND.
The BSI line is used to recognize the battery capacity by a battery internal pull down resistor.
