MJ-67 module jig concept

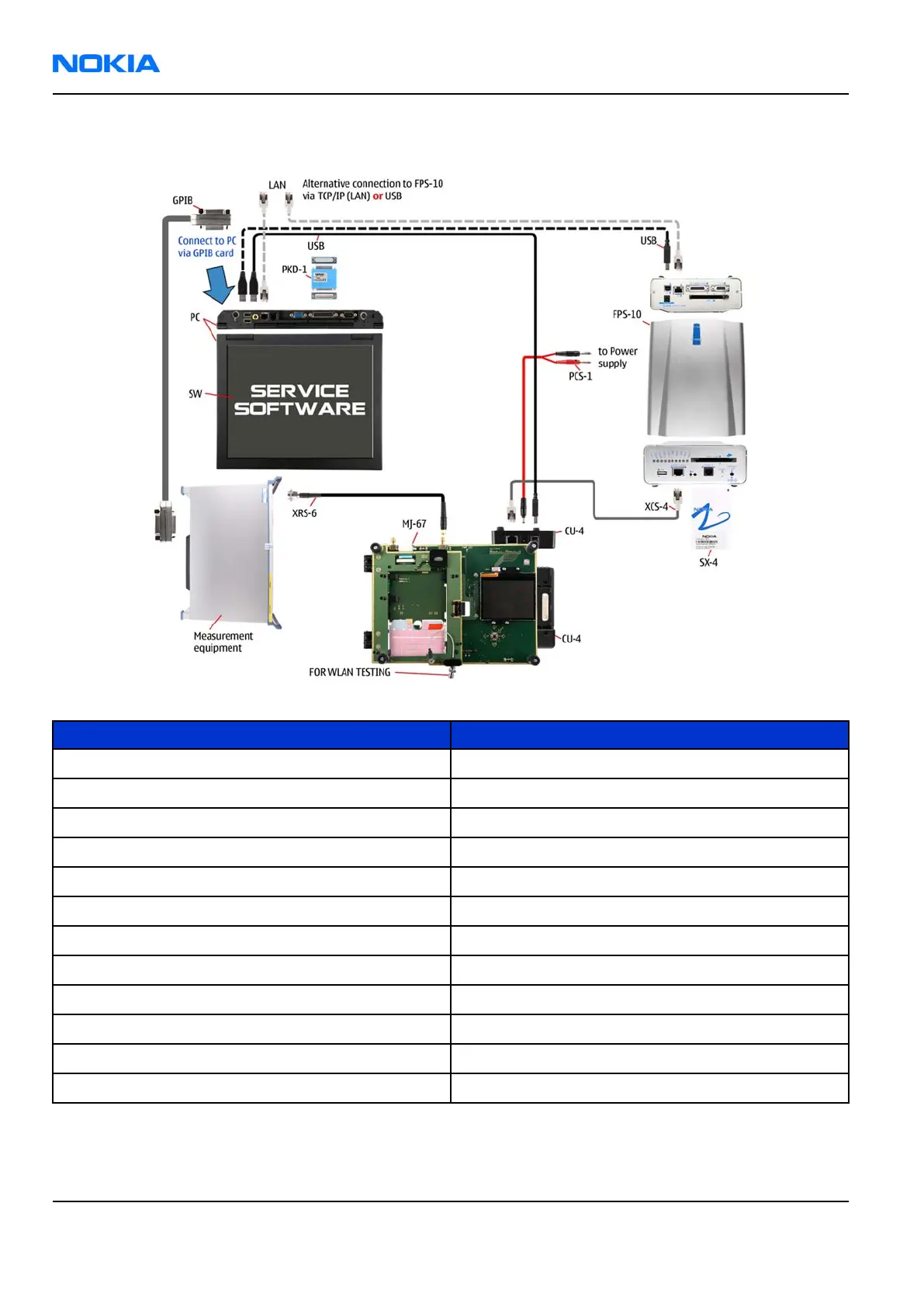

Figure 29 MJ-67 module jig service concept
Type Description
MJ-67 Module jig
CU-4 Control unit
FPS-10 Flash prommer box
SX-4 Smart card
XCS-4 Modular cable
PCS-1 DC power cable
Standard USB cable
Standard USB cable
GPIB control cable
XRS-6 RF cable
PKD-1 SW security device
RF shield box
RM-88
